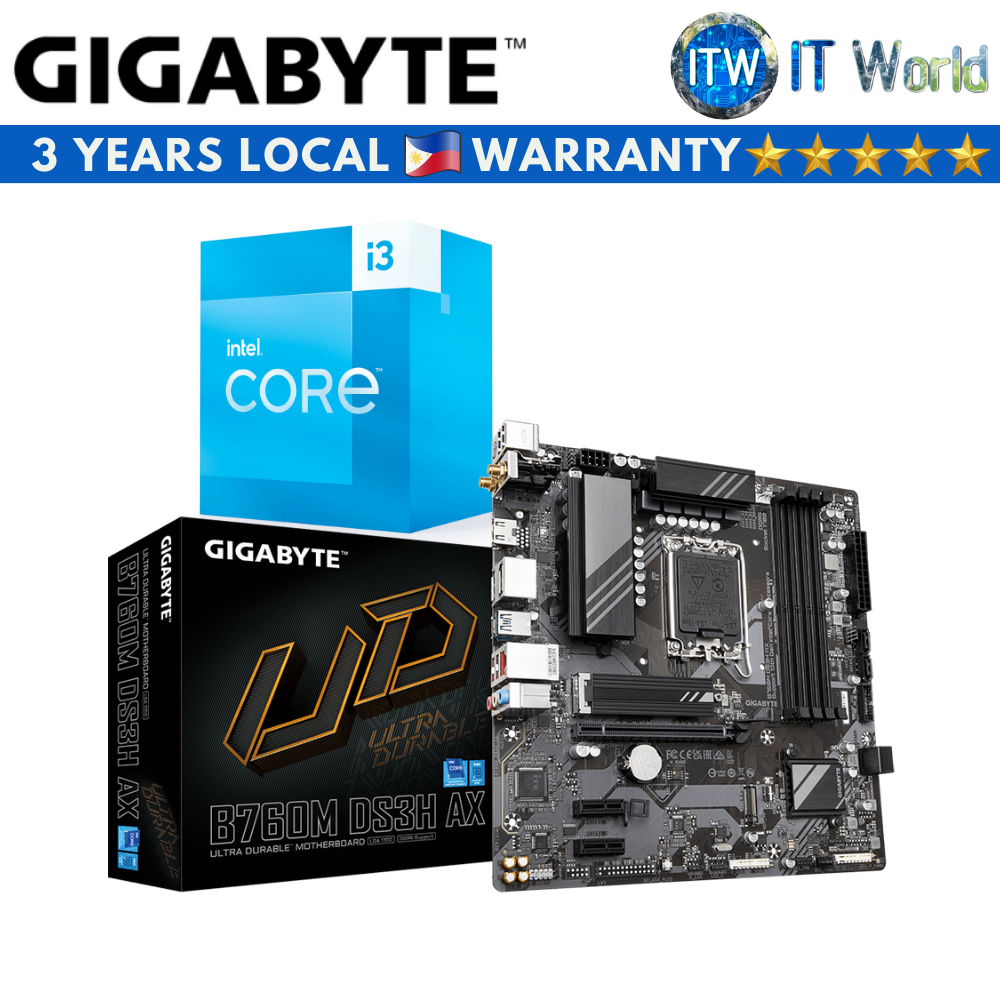

Product Name: Itw | Intel Core i3-14100F Desktop Processor with Gigabyte B760M DS3H AX DDR5 Motherboard Bundle
*** Intel Core i3-14100F 12MB Cache, up to 4.70Ghz Desktop Processor ***
Specification
Essentials
* Product Collection: Intel® Core™ i3 Processors (14th gen)
* Code Name: Products formerly Raptor Lake
* Vertical Segment: Desktop
* Processor Number: i3-14100F
* Lithography: Intel 7
* Use Conditions: PC/Client/Tablet
CPU Specifications
* Total Cores: 4
* # of Performance-cores: 4
* # of Efficient-cores: 0
* Total Threads: 8
* Max Turbo Frequency: 4.7 GHz
* Performance-core Max Turbo Frequency: 4.7 GHz
* Performance-core Base Frequency: 3.5 GHz
* Cache: 12 MB Intel® Smart Cache
* Total L2 Cache: 5 MB
* Processor Base Power: 58 W
* Maximum Turbo Power: 110 W
Supplemental Information
* Marketing Status: Launched
* Launch Date: Q1'24
* Embedded Options Available: No
Memory Specifications
* Max Memory Size (dependent on memory type): 192 GB
* Memory Types
> Up to DDR5 4800 MT/s
> Up to DDR4 3200 MT/s
* Max # of Memory Channels: 2
* Max Memory Bandwidth: 76.8 GB/s
*** Gigabyte B760M DS3H AX DDR5 micro-ATX LGA1700 Motherboard (GA-B760M-DS3H-AX DDR5) ***
Specification
CPU
* LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
* L3 cache varies with CPU
Chipset
* Intel® B760 Express Chipset
Memory
* Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
* 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
* Dual channel memory architecture
* Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
* Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
* Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
* 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
> * Support for HDMI 2.0 version and HDCP 2.3.
* 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
> * Support for DisplayPort 1.2 version and HDCP 2.3
* 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
> * Support for DisplayPort 1.2 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to triple-display at the same time
Audio
* Realtek® Audio CODEC
* High Definition Audio
* 2/4/5.1/7.1-channel
> * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN
* Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
* CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Interface
* CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
* Chipset
> 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
> 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
* Chipset:
> 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
> 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
> 2 x USB 2.0/1.1 ports on the back panel
* Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headersBack Panel Connectors
Back Panel Connectors
* 2 x USB 2.0/1.1 ports
* 1 x PS/2 keyboard/mouse port
* 2 x SMA antenna connectors (2T2R)
* 1 x HDMI port
* 2 x DisplayPorts
* 3 x USB 3.2 Gen 1 ports
* 1 x USB Type-C® port, with USB 3.2 Gen 2 support
* 1 x RJ-45 port
* 3 x audio jacks
Form Factor
* Micro ATX; 24.4cm x 24.4cm
