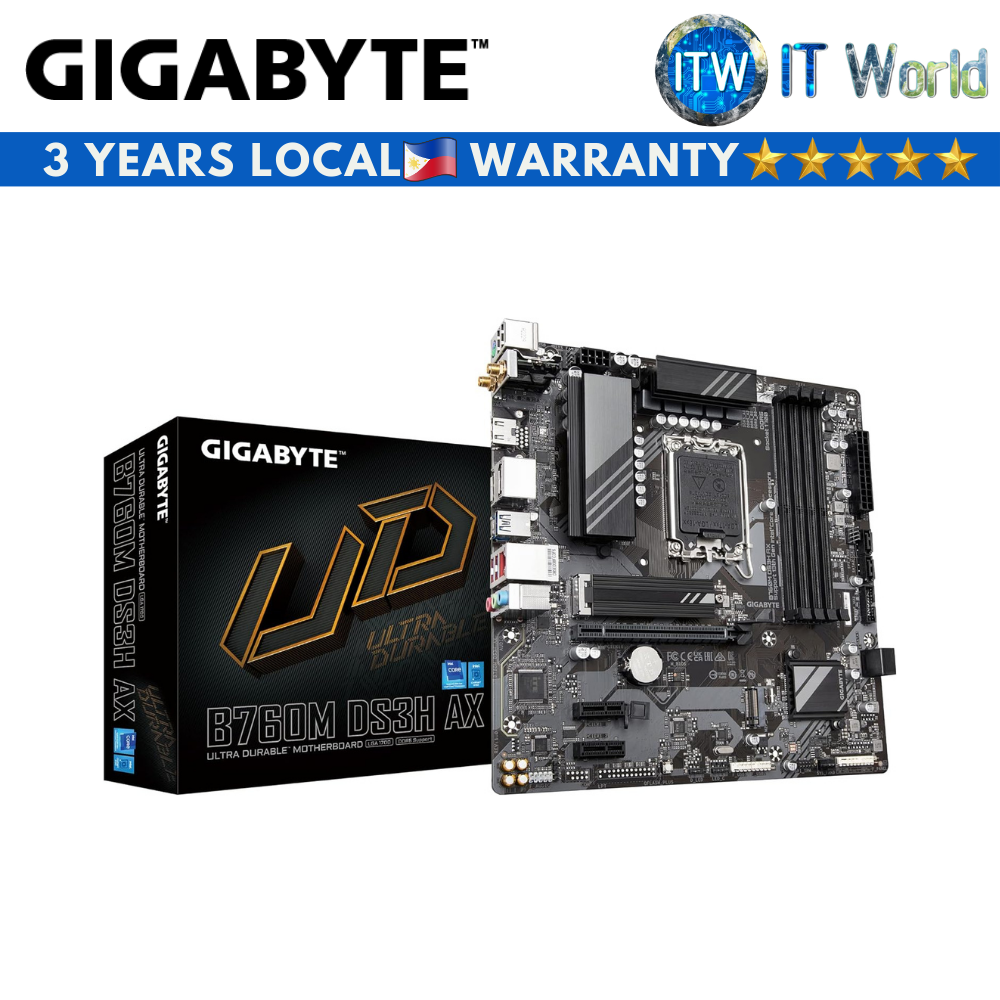

Product Name: Gigabyte B760M DS3H AX Micro ATX LGA1700 DDR5 Motherboard
Specification
CPU:
* LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
* L3 cache varies with CPU
Chipset:
* Intel® B760 Express Chipset
Memory:
* Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
* 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
* Dual channel memory architecture
* Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
* Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
* Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics:
Integrated Graphics Processor-Intel® HD Graphics support:
* 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Audio:
* Realtek® Audio CODEC
* High Definition Audio
* 2/4/5.1/7.1-channel
* Support for S/PDIF Out
LAN:
* Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB:
Chipset:
* 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
* 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
* 2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
* 4 x USB 2.0/1.1 ports available through the internal USB headers
Operating System:
* Support for Windows 11 64-bit
* Support for Windows 10 64-bit
Form Factor:
* Micro ATX Form Factor; 24.4cm x 24.4cm
