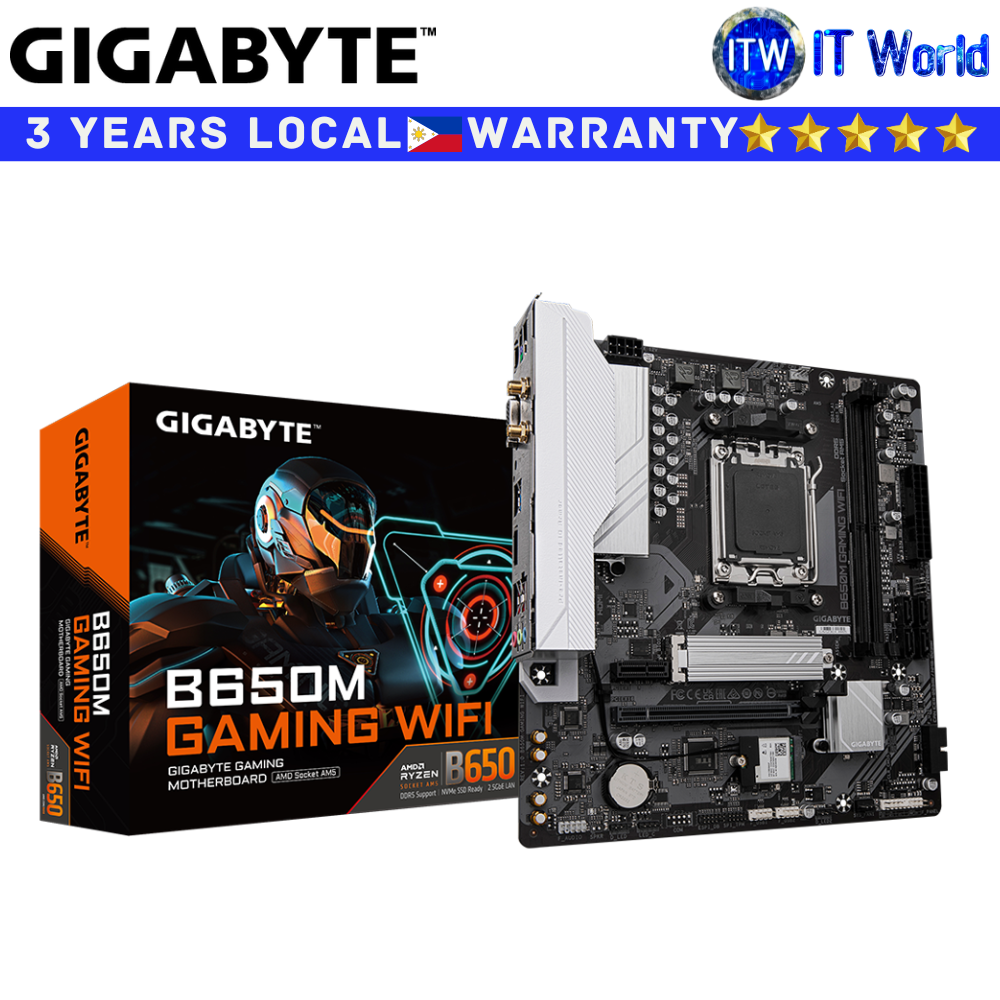

Product Name: Itw | Gigabyte Motherboard B650M Gaming Wifi microATX AM5 DDR5 (GA-B650M-GAMING-WIFI)
B650M GAMING WIFI
> AMD Socket AM5: Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
> Unparalleled Performance: 5+2+2 Phases Digital VRM Solution
> Dual Channel DDR5: 2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
> SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector
> EZ-Latch: PCIe x16 Slot with Quick Release Design
> Fast Networks: 2.5GbE LAN & 802.11ac Wi-Fi
> Extended Connectivity: HDMI, D-sub
> Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
> Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Specification
CPU
> AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
Chipset
> AMD B650
Memory
> Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
> 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
> Dual channel memory architecture
> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
> Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
> Memory Profile (XMP) memory modules
Onboard Graphics
> Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
Audio
> Realtek® Audio CODEC
> High Definition Audio
> 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
> Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
> AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE)
- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
- BLUETOOTH 4.2
- Support for 11ac wireless standard
(Actual data rate may vary depending on environment and equipment)
Expansion Slots
> 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
> Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
> 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
> 4 x SATA 6Gb/s connectors
> RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
> RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
> CPU
- 2 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB 2.0/1.1 port on the back panel
> Chipset
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through
the internal USB header)
> Chipset+USB 2.0 Hub: 2 x USB 2.0/1.1 ports available through the internal USB header
Back Panel Connectors
> 4 x USB 2.0/1.1 ports
> 1 x PS/2 keyboard/mouse port
> 1 x D-Sub port
> 1 x Q-Flash Plus button
> 2 x USB 3.2 Gen 1 ports
> 1 x HDMI port
> 1 x RJ-45 port
> 3 x audio jacks
Form Factor
> Micro ATX; 24.0cm x 22.5cm
