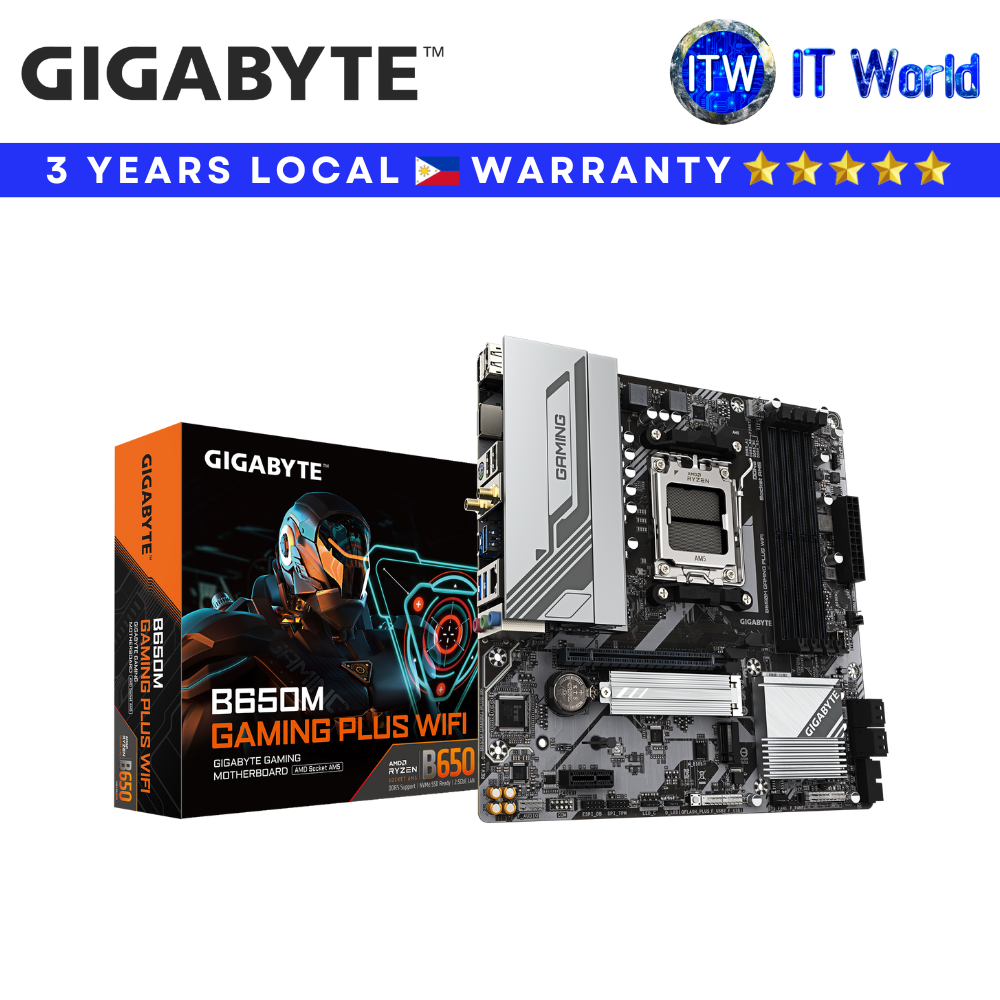

Product Name: Itw | Gigabyte Motherboard DDR5 AMD B650M Micro ATX GAMING PLUS WIFI (rev. 1.x)

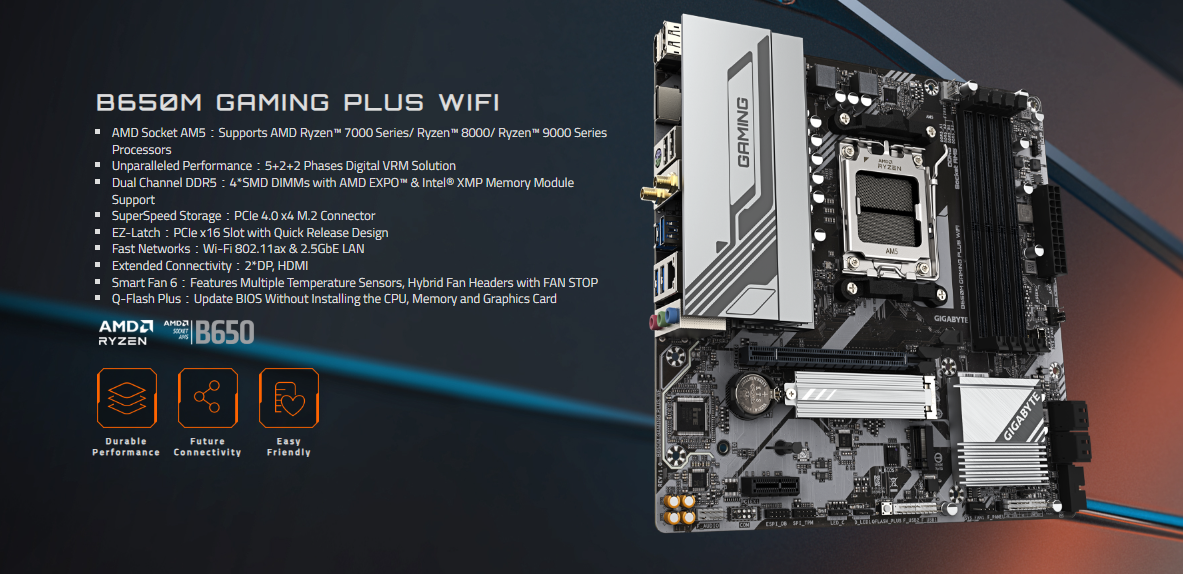

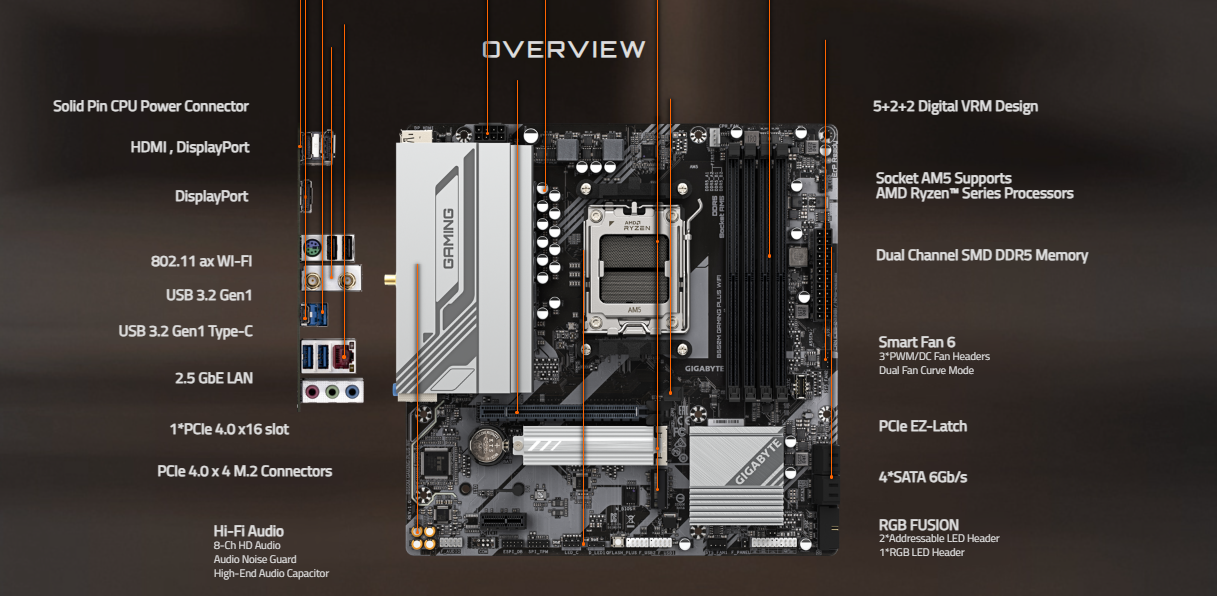

*B650M GAMING PLUS WIFI
- AMD Socket AM5：Supports AMD Ryzen™ 7000 Series/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors

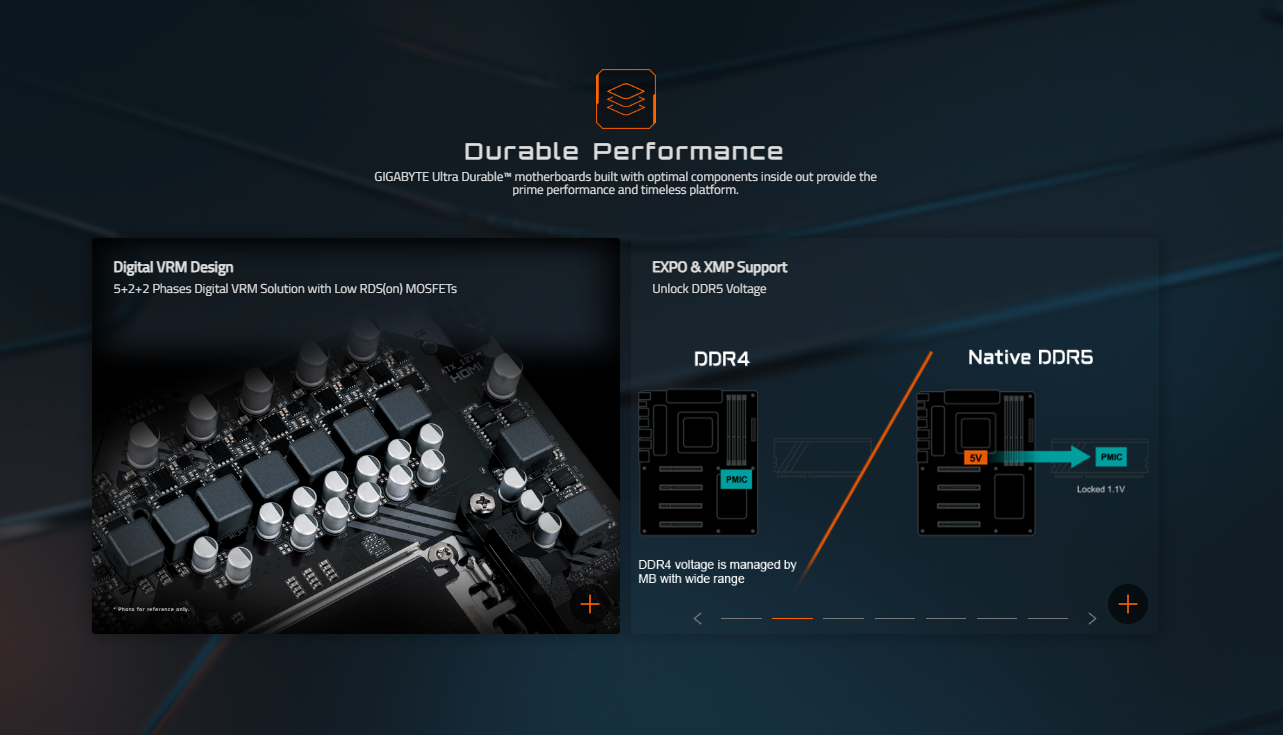

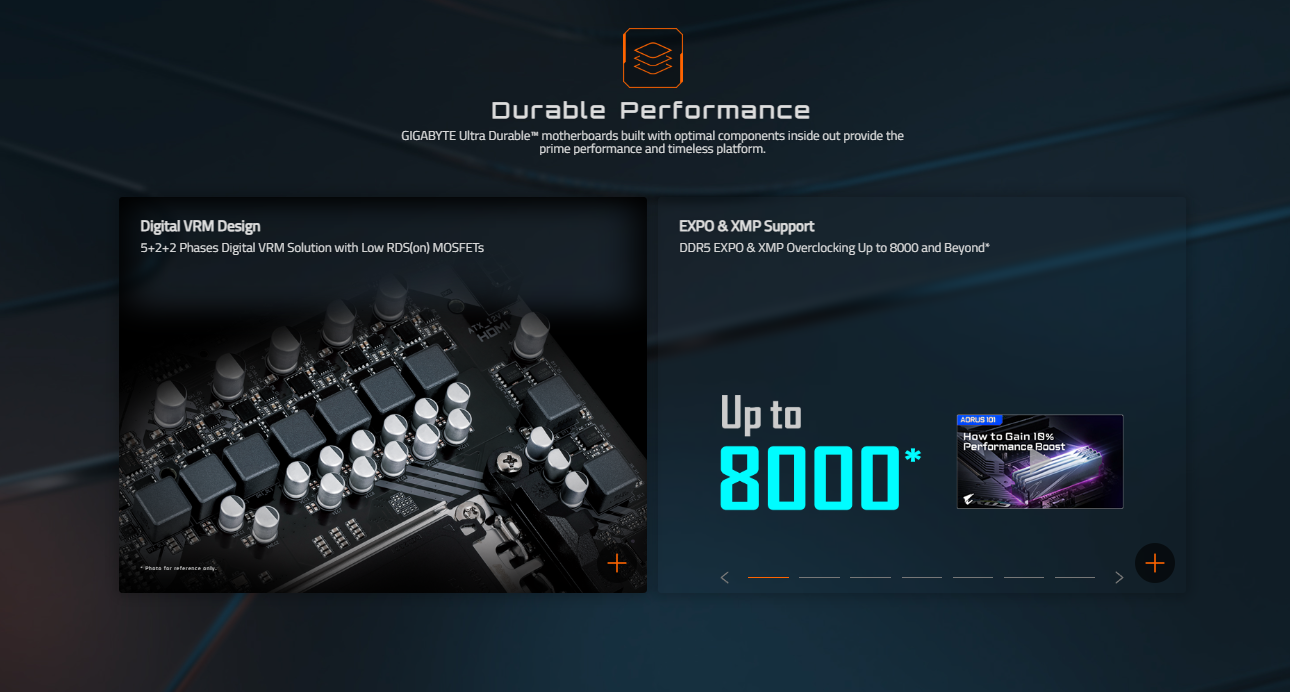

- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：Wi-Fi 802.11ax & 2.5GbE LAN
- Extended Connectivity：2*DP, HDMI

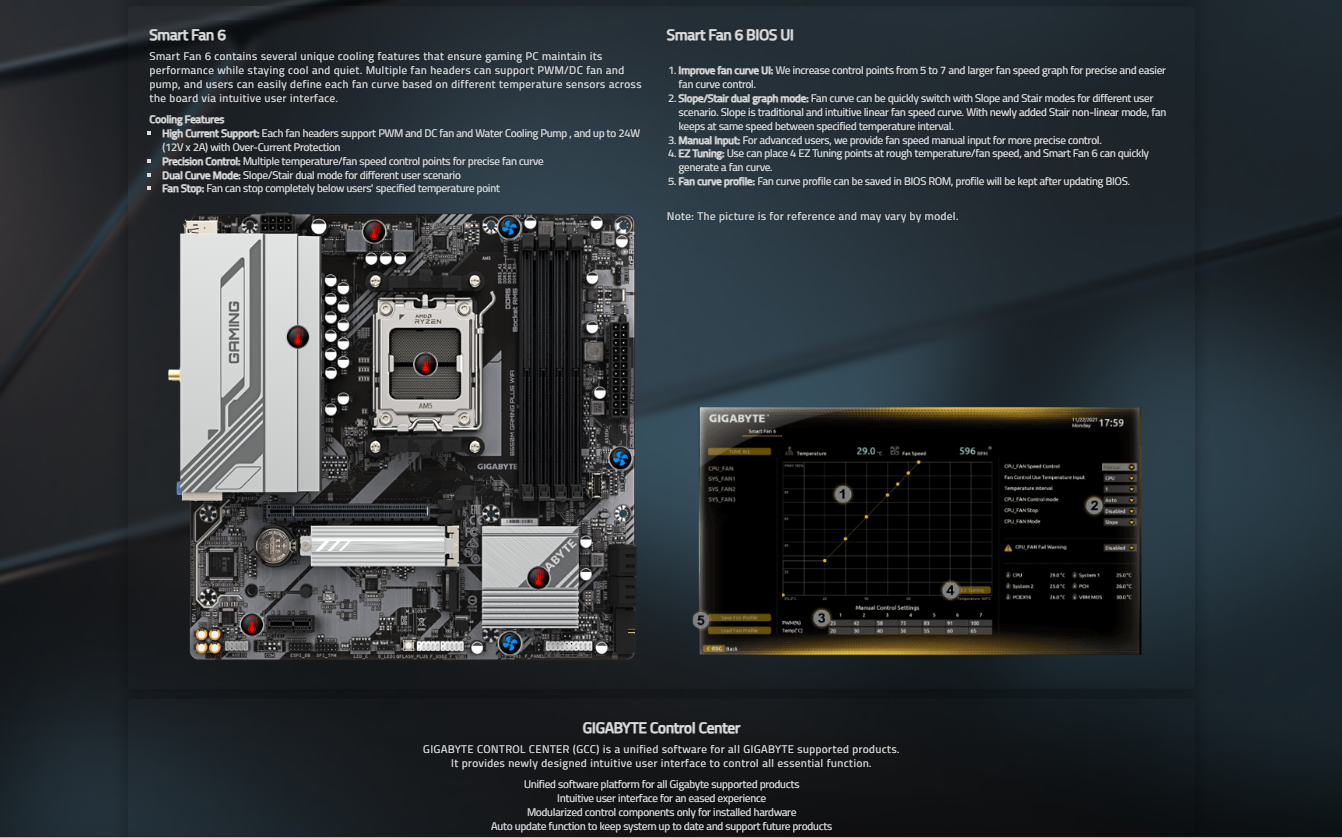

- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Specification
*CPU
Socket: AMD Socket AM5
Processor Support: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
(Refer to GIGABYTE's website for the latest CPU support list.)
*Chipset
AMD B650
*Memory
Memory Type: DDR5
Supported Speeds: 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s
DIMM Sockets: 4 x DDR5 DIMM
Max Capacity: Up to 256 GB (64 GB single DIMM capacity)
Architecture: Dual Channel
Supported Modules: Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Profiles Supported: AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP)
(Note: CPU and memory configuration may affect supported memory types, data rate (speed), and number of DRAM modules. Refer to GIGABYTE's "Memory Support List".)
*Onboard Graphics
Processor: Integrated Graphics Processor with AMD Radeon™ Graphics support (Specifications may vary depending on CPU)
*Display Outputs:
2 x DisplayPorts:
- Maximum resolution: 3840x2160@144 Hz
- Support for DisplayPort 1.4 version.
1 x HDMI port:
- Maximum resolution: 4096x2160@60 Hz
- Support for HDMI 2.1 version and HDCP 2.3.
- Support for native HDMI 2.1 TMDS compatible ports.
Multi-Display Support: Up to triple-display simultaneously
*Audio:
- CODEC: Realtek® Audio CODEC
- Audio Type: High Definition Audio
- Channel Configuration: 2/4/5.1/7.1-channel
*Expansion Slots
1 x PCI Express x16 slot (PCIEX16)
Integrated in the CPU.
- AMD Ryzen™ 7000 / 9000 Series Processors: Supports PCIe 4.0 x16 mode.
- AMD Ryzen™ 8000 Series - Phoenix 1 Processors: Supports PCIe 4.0 x8 mode.
- AMD Ryzen™ 8000 Series - Phoenix 2 Processors: Supports PCIe 4.0 x4 mode.
- Note: The PCIEX16 slot can only support a graphics card or an NVMe SSD.
1 x PCI Express x1 slot (PCIEX1)
- Integrated in the Chipset.
- Supports PCIe 3.0 and runs at x1.
*Storage Interface
1 x M.2 connector (M2A_CPU)
Integrated in the CPU.
Supports Socket 3, M key, type 2580 SSDs.
AMD Ryzen™ 7000 / 9000 Series Processors: Supports PCIe 4.0 x4/x2 SSDs.
AMD Ryzen™ 8000 Series - Phoenix 1 Processors: Supports PCIe 4.0 x4/x2 SSDs.
AMD Ryzen™ 8000 Series - Phoenix 2 Processors: Supports PCIe 4.0 x4/x2 SSDs.
1 x M.2 connector (M2C_SB)
- Integrated in the Chipset.
- Supports Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs.
4 x SATA 6Gb/s connectors
*RAID Support:
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices.
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices.
*Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 2 x addressable LED strip headers
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- 1 x Q-Flash Plus button
- 1 x reset jumper
- 1 x Clear CMOS jumper
*Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x USB Type-C® port, with USB 3.2 Gen 1 support
- 3 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x HDMI port
- 2 x DisplayPorts
- 2 x SMA antenna connectors (2T2R) (1T1R)*
* Only for Realtek® Wi-Fi 6 RTL8851BE
- 1 x RJ-45 port
- 3 x audio jacks
*I/O Controller
iTE® I/O Controller Chip
*H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Fan fail warning
- Fan speed control
*BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
*Unique Features
- Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- Support for Q-Flash
- Support for Q-Flash Plus
Bundled Software: Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System:
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
