Product Name:

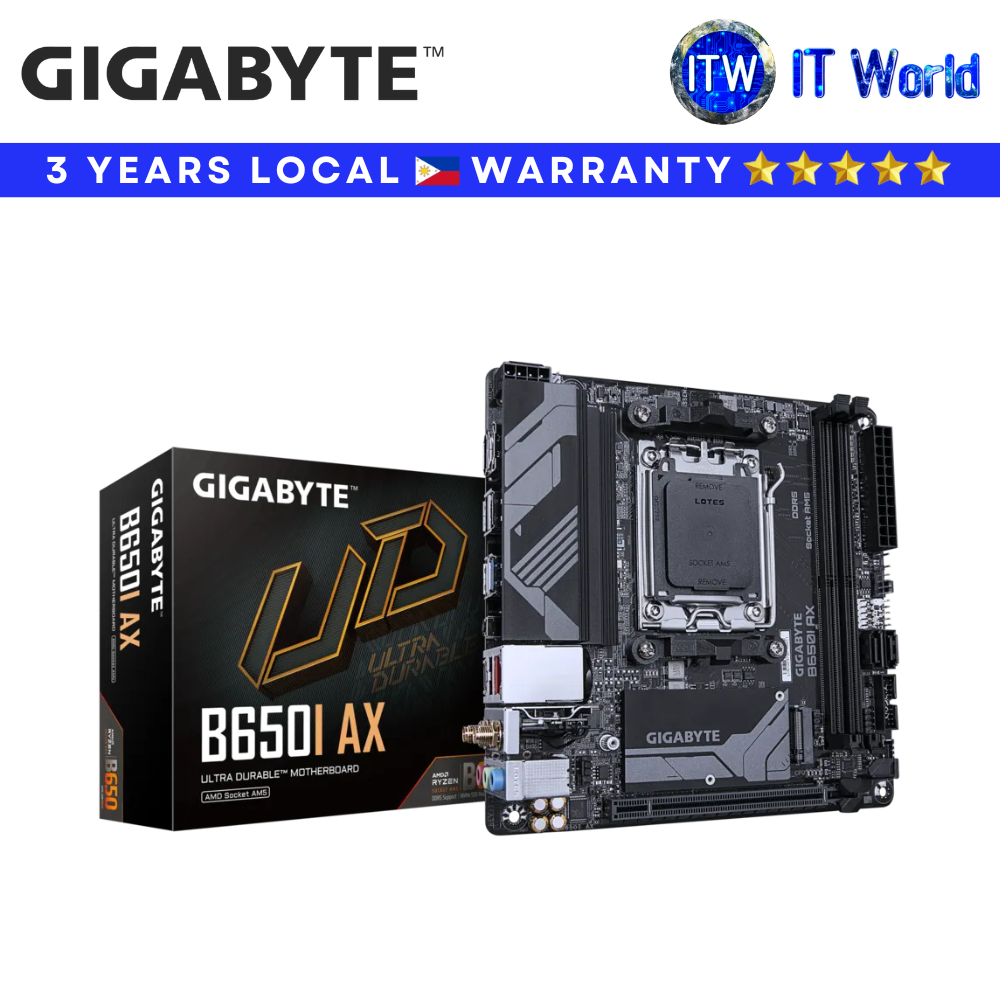

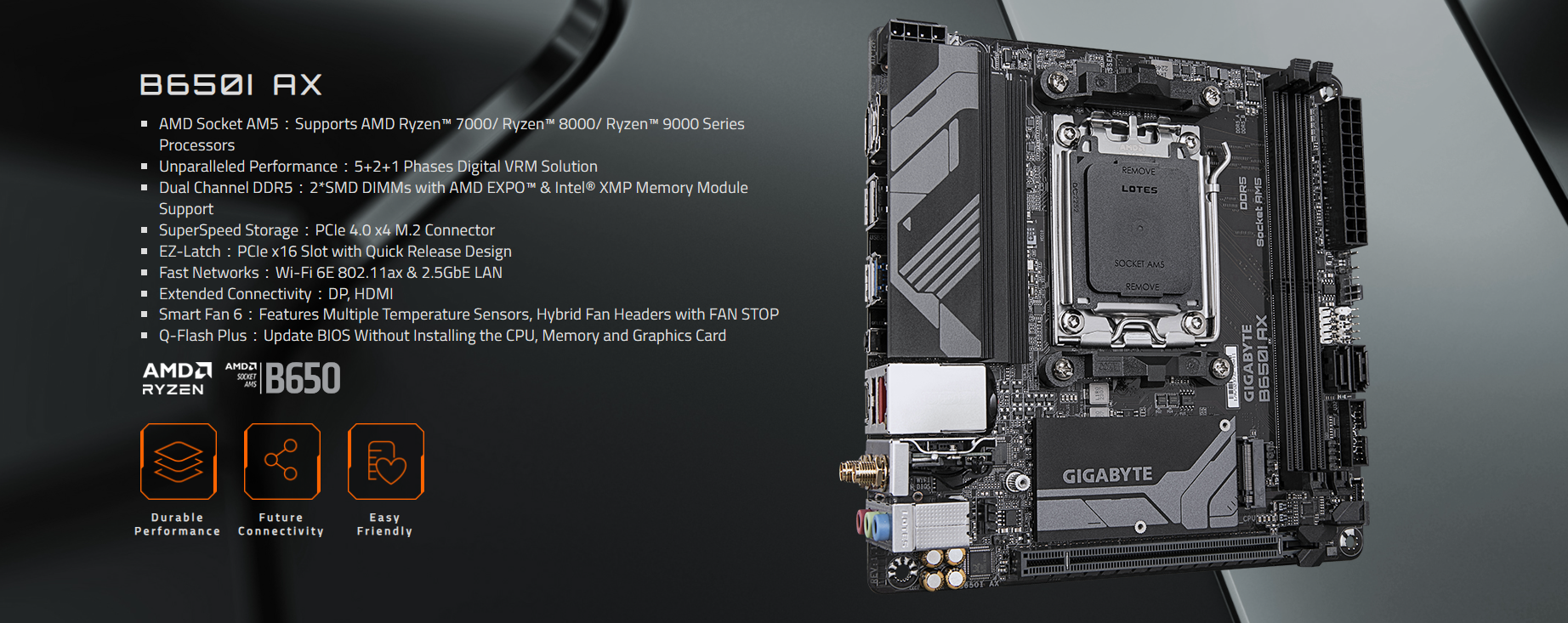

Itw | Gigabyte Motherboard DDR5 AM5 B650I Aoruz AX Mini-ITX / Wi-Fi 6E / PCIe 4.0
CPU Support: AMD Socket AM5 – Supports Ryzen™ 7000 / 8000 / 9000 Series
Chipset: AMD B650
Form Factor: Mini-ITX (17.0cm x 17.0cm)
Memory Support:
2x DDR5 DIMM slots (up to 128GB total)
DDR5 up to 6400+(OC)
Dual channel, non-ECC unbuffered
Supports AMD EXPO™ & Intel® XMP profiles
Graphics Output:
1x HDMI (4096x2160@60Hz, HDMI 2.1)
1x DisplayPort (3840x2160@144Hz, DP 1.4)
Requires Ryzen CPU with Radeon™ Graphics
Audio: Realtek® High Definition Audio, 7.1-Channel
LAN: Realtek® 2.5GbE
Wi-Fi: Realtek® Wi-Fi 6E (802.11ax, 2.4/5/6 GHz) + Bluetooth 5.3
Storage Interface:
1x PCIe 4.0 x4 M.2 (2280)
2x SATA 6Gb/s ports
RAID 0 / 1 support for NVMe & SATA
Expansion Slots:
1x PCIe 4.0 x16 (supports GPU or NVMe SSD)

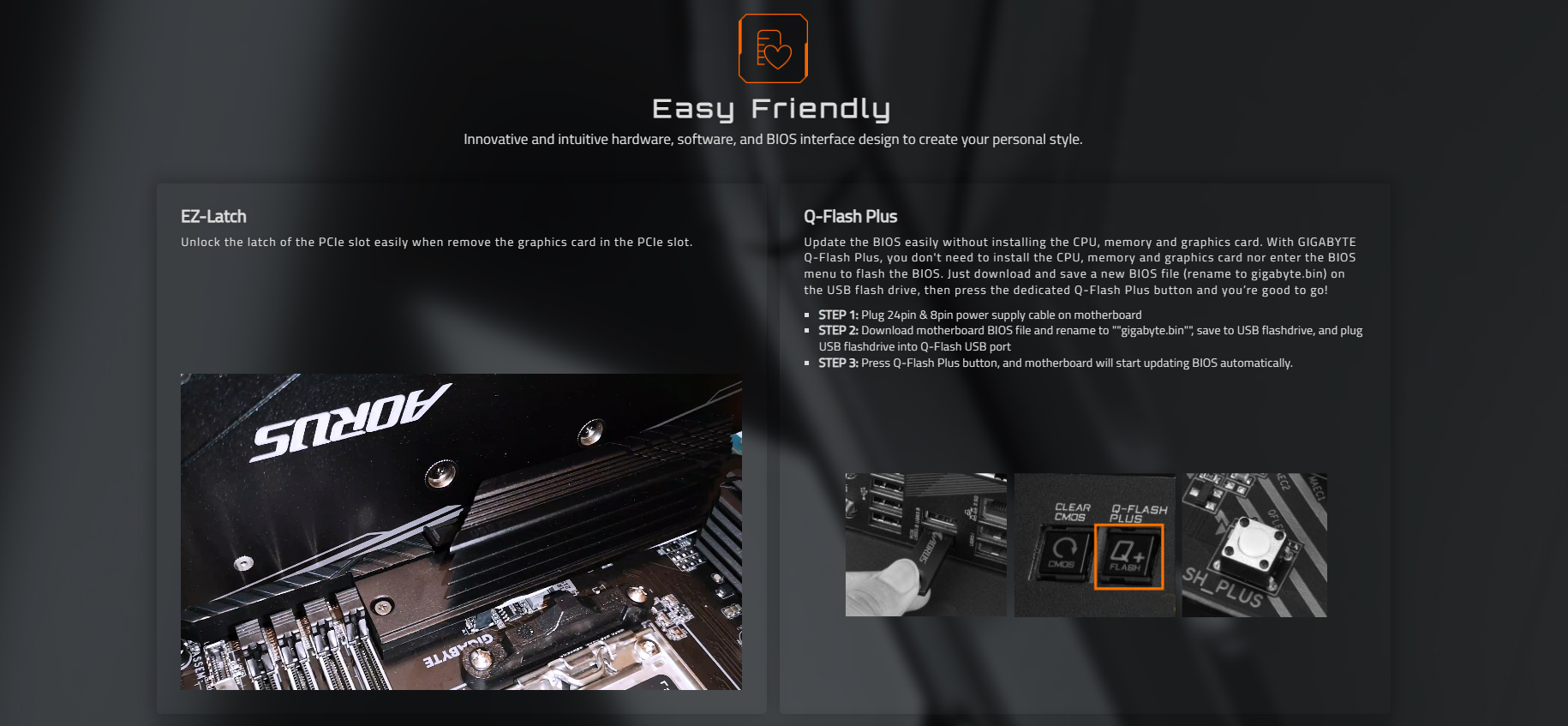

EZ-Latch design for quick-release GPU install
USB Ports:
Rear:
1x USB-C® 3.2 Gen 1
1x USB-A 3.2 Gen 2 (red)
1x USB-A 3.2 Gen 1
3x USB 2.0
Internal:
1x USB-C® header (USB 3.2 Gen 1)
1x USB 3.2 Gen 1 header
1x USB 2.0 header
Internal I/O:
24-pin ATX + 8-pin 12V
1x CPU fan header
2x System fan headers
1x ARGB + 1x RGB header
Front panel audio + USB
M.2 socket + SATA headers
Clear CMOS + Chassis intrusion headers

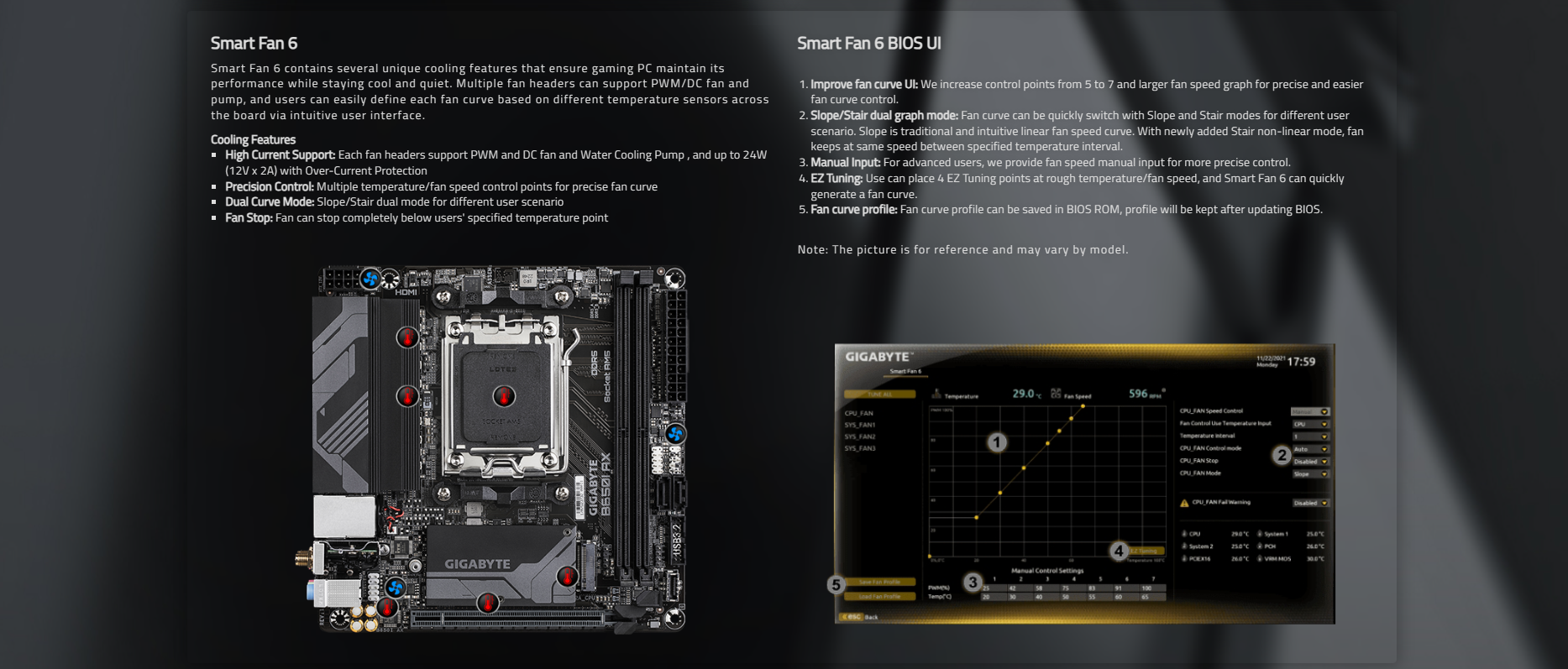

Smart Fan 6 Features:
Multiple temp sensors
Hybrid fan headers with FAN STOP
Water cooling flow rate detection
Unique Features:
Q-Flash Plus (BIOS update without CPU/RAM/GPU)

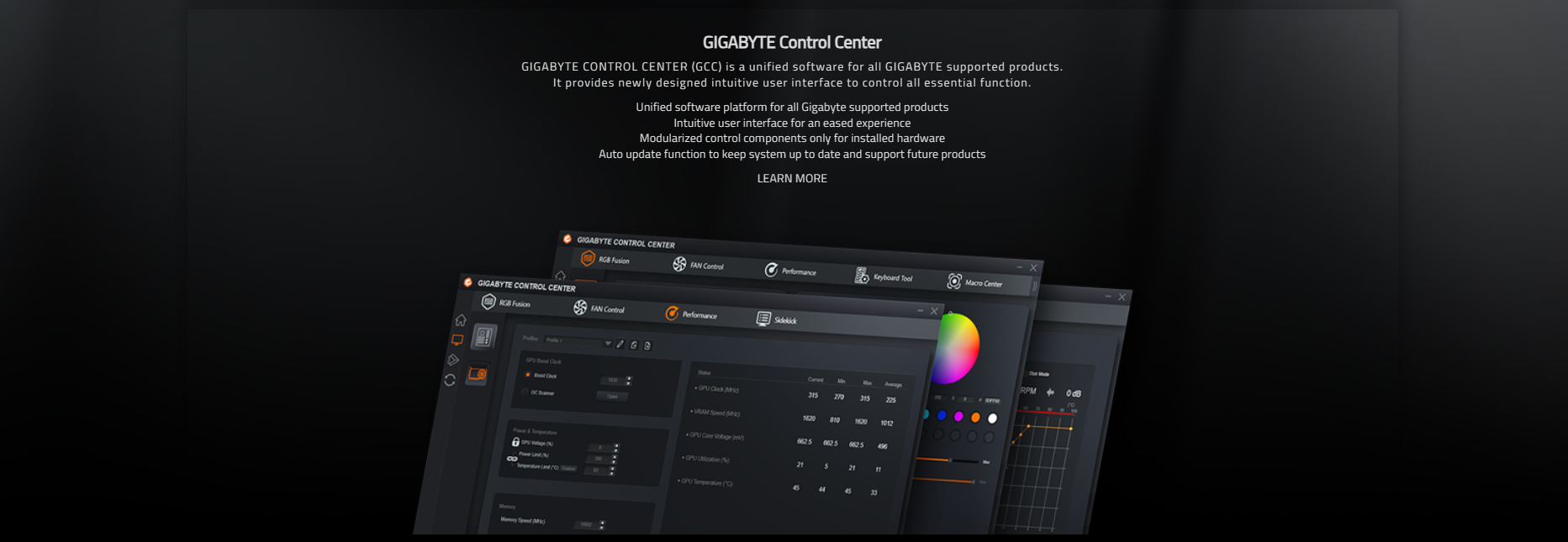

Gigabyte Control Center (GCC)
Norton Internet Security OEM
LAN bandwidth control
Operating System:
Windows 10 64-bit
Windows 11 64-bit
