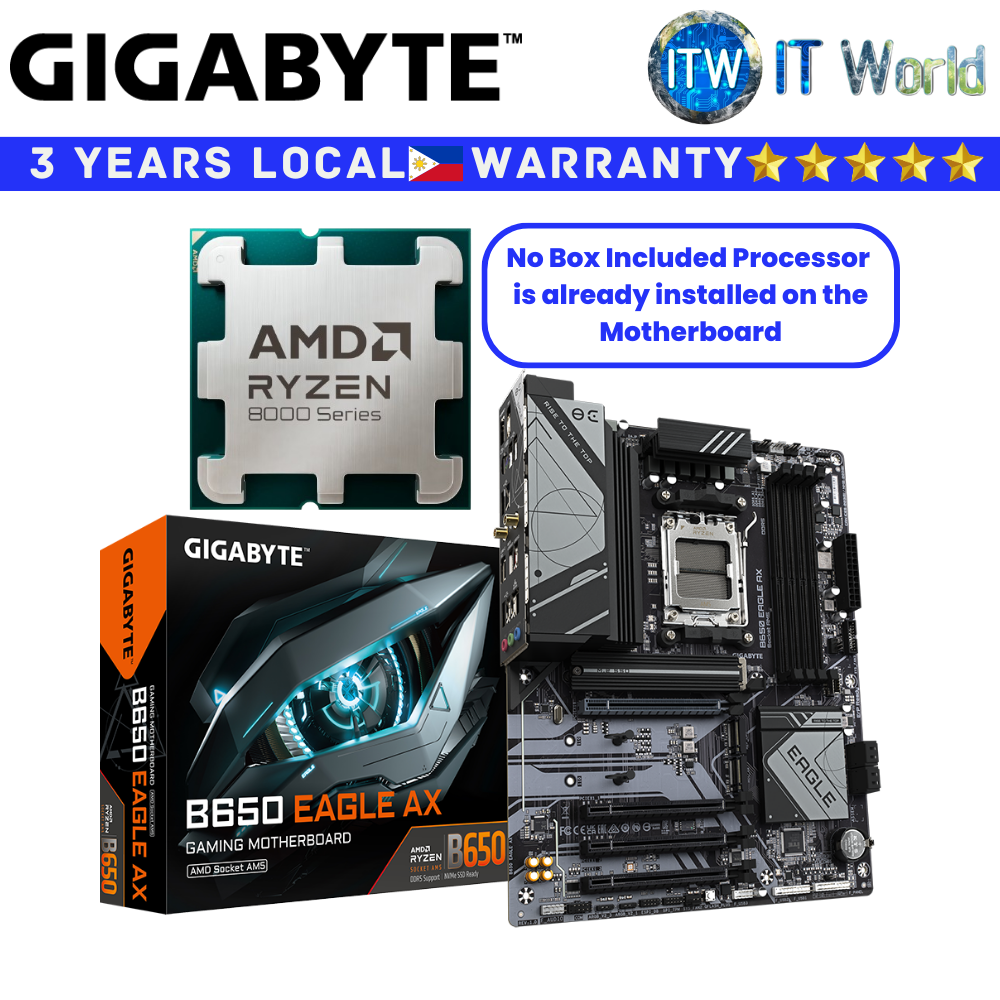

Product Name: Itw | Gigabyte Bundle Ryzen Motherboard AMD 7 8700F Tray Type Processor with B650 Eagle AX
*** AMD Ryzen 7 8700F 8-Cores 16-Threads Processor ***
General Specifications
* Name: AMD Ryzen™ 7 8700F
* Family: Ryzen
* Series: Ryzen 8000 Series
* Form Factor: Desktops
* AMD PRO Technologies: No
* Architecture: Zen 4
* # of CPU Cores: 8
* Multithreading (SMT): Yes
* # of Threads: 16
* Max. Boost Clock: Up to 5 GHz
* Base Clock: 4.1 GHz
* L2 Cache: 8 MB
* L3 Cache: 16 MB
* Default TDP: 65W
* AMD Configurable TDP (cTDP): 45-65W
* Processor Technology for CPU Cores: TSMC 4nm FinFET
* CPU Compute Die (CCD) Size: 178mm²
* Package Die Count: 1
* Unlocked for Overclocking: Yes
* AMD EXPO™ Memory Overclocking Technology: Yes
* Precision Boost Overdrive: Yes
* Curve Optimizer Voltage Offsets: Yes
* AMD Ryzen™ Master Support: Yes
* CPU Socket: AM5
* CPU Boost Technology: Precision Boost 2
* Instruction Set: x86-64
* Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, SSE4A, x86-64
* Max. Operating Temperature (Tjmax): 95°C
* OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
Connectivity
* Native USB 4 (40Gbps) Ports: 2
* Native USB 3.2 Gen 2 (10Gbps) Ports: 2
* Native USB 2.0 (480Mbps) Ports: 1
* PCI Express® Version: PCIe® 4.0
* Native PCIe® Lanes (Total/Usable): 20 , 16
* NVMe Support: Boot , RAID0 , RAID1
* System Memory Type: DDR5
* Memory Channels: 2
* Max. Memory: 256 GB
* System Memory SubtypeUDIMM
* Max Memory Speed
> 2x1R DDR5-5200
> 2x2R DDR5-5200
> 4x1R DDR5-3600
> 4x2R DDR5-3600
*** Gigabyte Motherboard B650 Eagle AX ATX AM5 DDR5 ***
CPU
> AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors / AMD Ryzen™ 8000 Series Processors
Chipset
> AMD B650
Memory
> Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
> 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
> Dual channel memory architecture
> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
> Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Audio
> Realtek® Audio CODEC
> High Definition Audio
> 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Wireless Communication module
> Realtek® Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment)
Storage Interface
> 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
- AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
> 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
> 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
> CPU
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
> CPU+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel
> Chipset
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
> Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Back Panel Connectors
> 1 x DisplayPort
> 1 x HDMI port
> 1 x PS/2 keyboard/mouse port
> 2 x SMA antenna connectors (2T2R)
> 1 x USB Type-C® port, with USB 3.2 Gen 1 support
> 2 x USB 3.2 Gen 2 Type-A ports (red)
> 6 x USB 2.0/1.1 ports
> 1 x RJ-45 port
> 3 x audio jacks
Form Factor
> ATX; 30.5cm x 24.4cm
