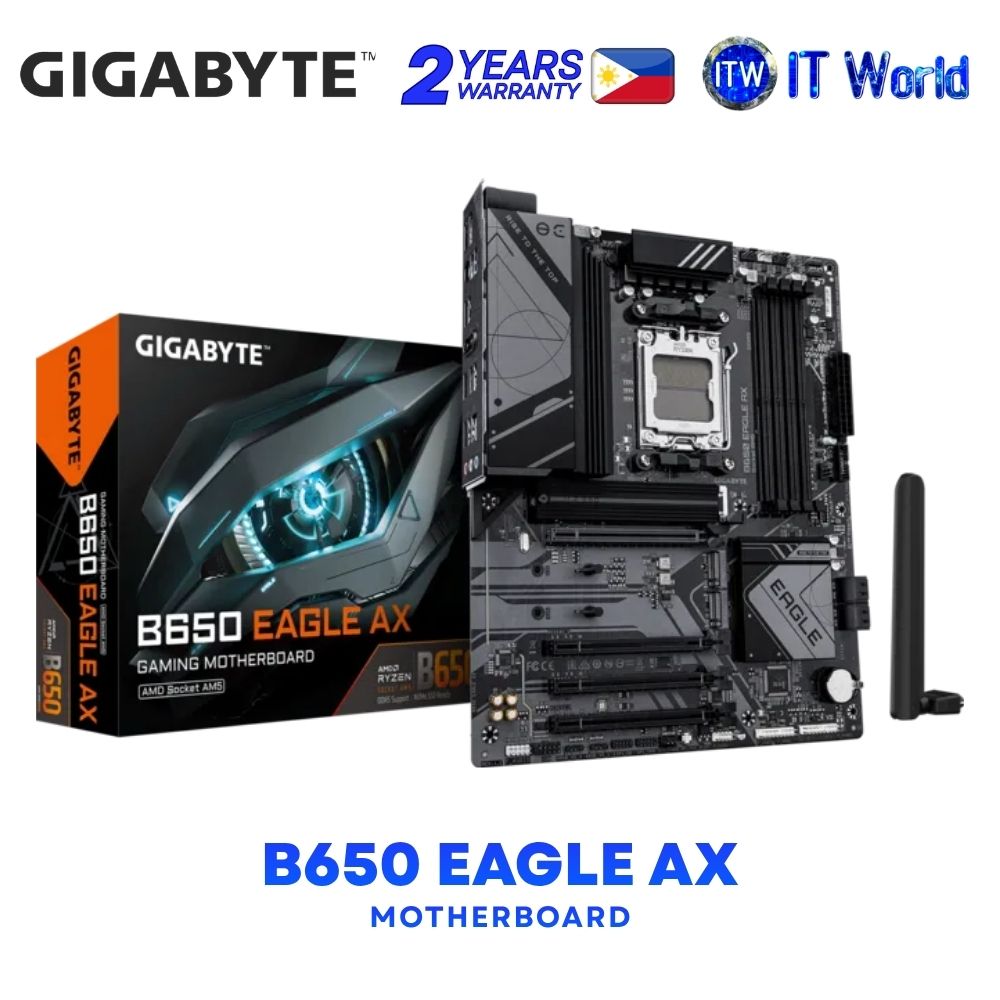

Gigabyte B650 Eagle AX ATX AM5 DDR5 AMD B650 Chipset Motherboard GA-B650-EAGLE-AX
⚡ Upgrade your PC build with the Gigabyte B650 Eagle AX, an ATX motherboard featuring the AMD B650 chipset and AM5 socket. Designed for AMD Ryzen™ 7000, 8000, and 9000 Series processors, it combines DDR5 memory support, high-speed M.2 storage connectivity, wireless networking, and advanced thermal features for a versatile desktop platform.

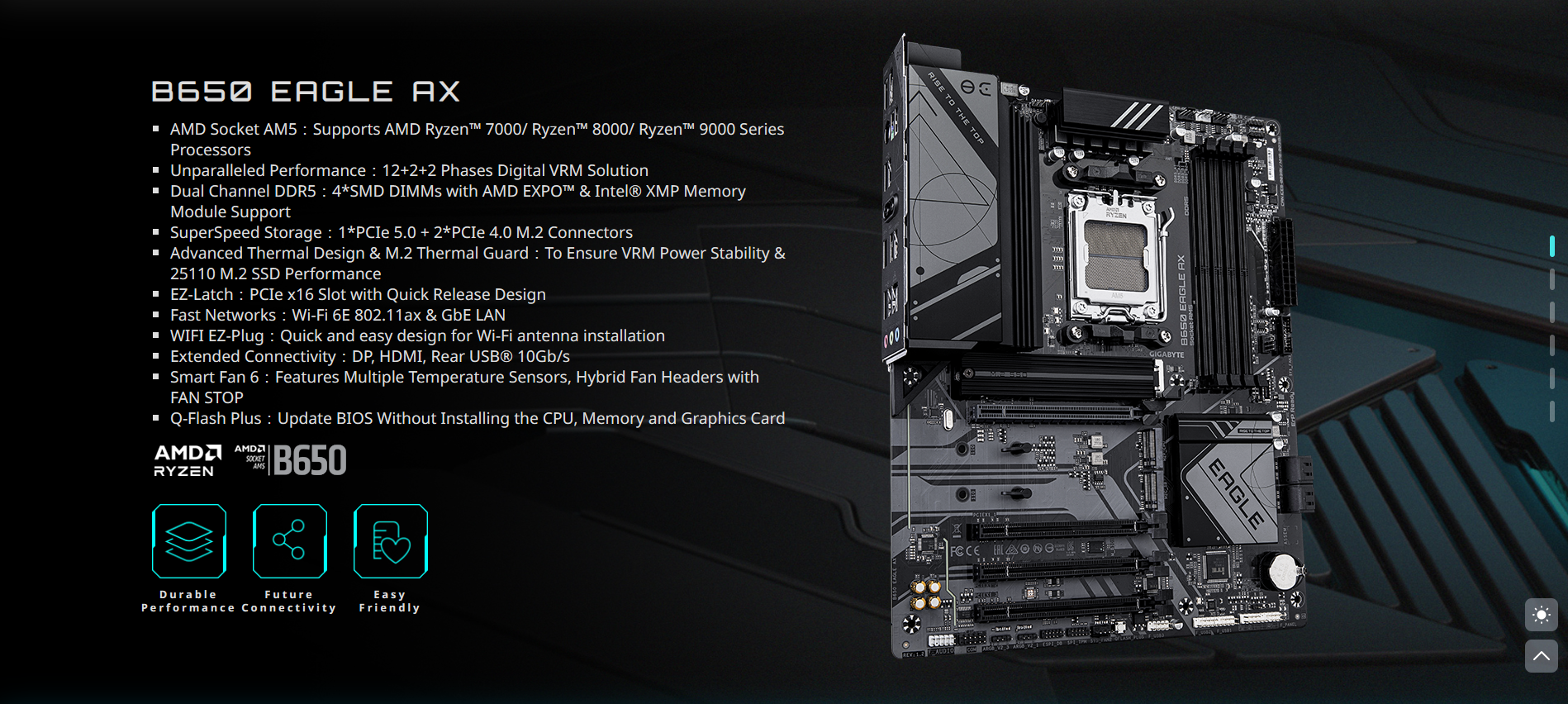

Key Features & Highlights
🧠 AMD AM5 Socket: Supports AMD Ryzen™ 7000, Ryzen™ 8000, and Ryzen™ 9000 Series processors.
⚡ 12+2+2 Digital VRM Design: Provides a digital power delivery solution for system performance and power stability.
🚀 DDR5 Memory Support: Four DDR5 DIMM slots with dual-channel architecture, supporting up to 256GB of system memory and AMD EXPO™ and Intel® XMP memory profiles.
💾 High-Speed M.2 Storage: Three M.2 connectors, including PCIe 5.0 support with compatible processors, plus PCIe 4.0 storage connectivity.
🌡️ Advanced Thermal Design: Features an M.2 Thermal Guard to help manage SSD temperatures and support performance.
🎮 EZ-Latch PCIe Slot: Quick-release design for convenient graphics card installation and removal.
📶 Wi-Fi 6E & Bluetooth 5.3: Intel® Wi-Fi 6E AX210 wireless module with 2.4GHz, 5GHz, and 6GHz band support, plus Bluetooth 5.3.
🌐 Gigabit LAN: Realtek® GbE LAN supports 1Gbps, 100Mbps, and 10Mbps connections.
🖥️ Display Connectivity: Includes DisplayPort 1.4 and HDMI 2.1, with resolution support dependent on the processor.
🔌 Extended USB Connectivity: Features rear USB 3.2 Gen 2 Type-A ports, USB Type-C®, and additional USB connections.
🌬️ Smart Fan 6: Multiple temperature sensors, hybrid fan headers, and FAN STOP functionality.
🛠️ Q-Flash Plus: Update the BIOS without installing the CPU, memory, or graphics card.
💡 RGB Connectivity: Includes addressable RGB Gen2 and RGB LED strip headers for compatible lighting components.
Technical Specifications
🛠️ Model: B650 Eagle AX
🛠️ SKU / Part Number: GA-B650-EAGLE-AX
🛠️ Chipset: AMD B650
🛠️ CPU Socket: AMD Socket AM5
🛠️ Supported Processors: AMD Ryzen™ 7000 / 8000 / 9000 Series
🛠️ Memory Type: DDR5
🛠️ Memory Slots: 4 × DDR5 DIMM
🛠️ Maximum Memory Capacity: 256GB
🛠️ Memory Architecture: Dual Channel
🛠️ Expansion Slots: PCI Express x16 and PCIe 3.0 x1 operating slots, with availability and operating mode dependent on the processor
🛠️ Storage: 3 × M.2 connectors and 4 × SATA 6Gb/s connectors
🛠️ Storage RAID: RAID 0, RAID 1, and RAID 10 support for NVMe SSDs and SATA storage devices
🛠️ Wireless: Intel® Wi-Fi 6E AX210
🛠️ Bluetooth: Bluetooth 5.3
🛠️ Wired Networking: Realtek® Gigabit Ethernet
🛠️ Audio: Realtek® High Definition Audio CODEC
🛠️ Display Outputs: 1 × DisplayPort and 1 × HDMI
🛠️ Rear Connectivity: USB Type-A, USB Type-C®, PS/2 keyboard/mouse, RJ-45 LAN, SMA antenna connectors, and audio jacks
🛠️ Operating System Support: Windows 11 64-bit and Windows 10 64-bit
🛠️ BIOS Features: Q-Flash and Q-Flash Plus
🛠️ Motherboard Dimensions: 30.5 × 24.4 cm
🛠️ Form Factor: ATX
Ideal For
💻 PC builders looking for an AMD AM5 motherboard with DDR5 memory, multiple M.2 storage options, Wi-Fi 6E, Bluetooth 5.3, and extensive connectivity for a desktop setup.
