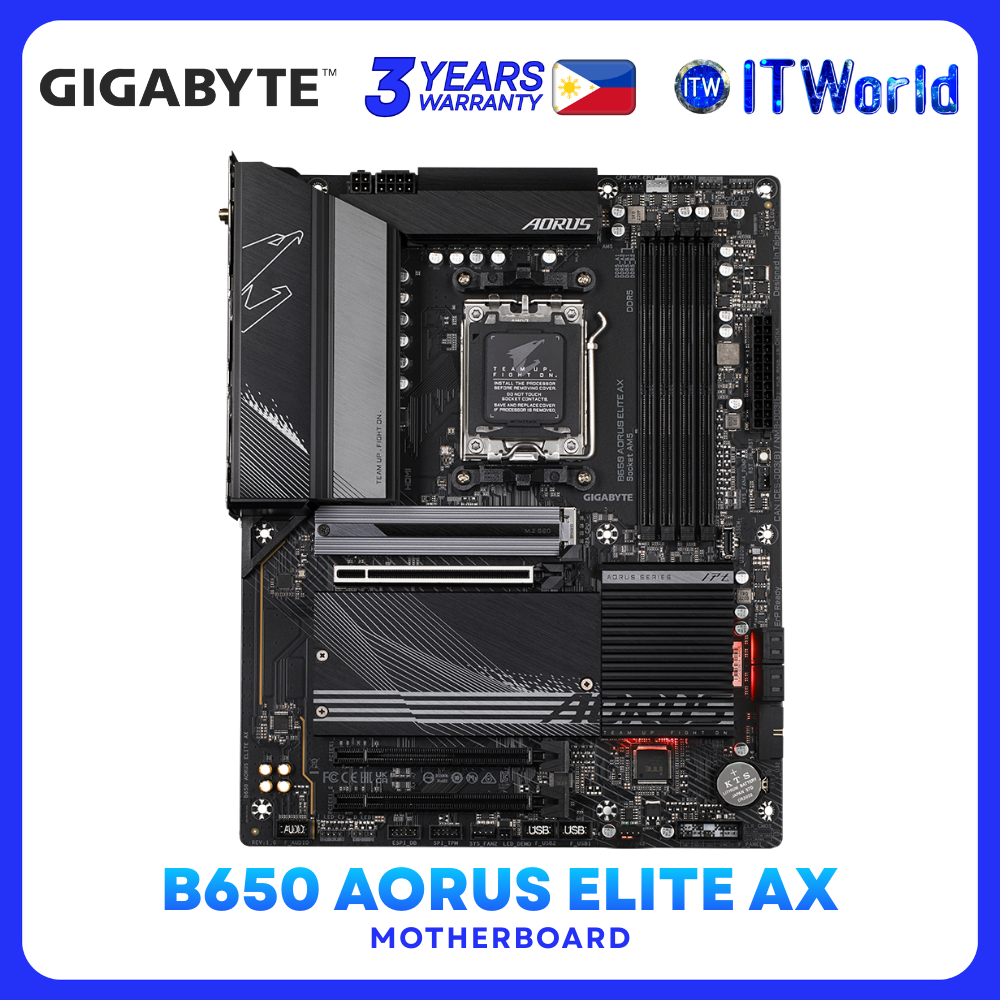

🔹 Model: B650 AORUS ELITE AX
🔹 Chipset: AMD B650
🔹 Form Factor: ATX
✨ Key Features & Highlights
🧠 AM5 CPU Support – Compatible with AMD Ryzen™ 7000 / 8000 / 9000 Series Processors
⚡ DDR5 Memory Ready – Supports up to 256GB DDR5 with speeds up to 8000MT/s (OC)
🎮 PCIe Expansion – 1× PCIe 4.0 x16 slot (CPU), 2× PCIe 3.0 x1 slots (Chipset)
🚀 Triple M.2 Slots – Supports PCIe 5.0 & PCIe 4.0 NVMe SSDs
🌐 2.5GbE LAN – Realtek® 2.5Gb Ethernet for fast and stable networking
📡 Wi-Fi 6E + Bluetooth – Wi-Fi 6E (AX) with BT 5.2 / BT 5.3 (depends on PCB revision)
🎧 Realtek® HD Audio – Supports up to 7.1-channel audio
🖥️ Integrated Graphics Output – DisplayPort 1.4 & HDMI 2.1 support
🔌 Rich USB Connectivity – USB-C®, USB 3.2 Gen 2x2, Gen 2, Gen 1, and USB 2.0 ports
🛠️ DIY & Builder Friendly – Q-Flash Plus, Clear CMOS jumper, multiple fan & RGB headers
📋 Specifications
• CPU Socket: AMD AM5
• Memory: 4× DDR5 DIMM, Dual Channel, Non-ECC Unbuffered
• Memory Profiles: AMD EXPO™ & XMP Support
• Onboard Graphics:
– DisplayPort: Up to 3840×2160@144Hz
– HDMI: Up to 4096×2160@60Hz
• LAN: Realtek® 2.5GbE
• Wireless:
– AMD Wi-Fi 6E RZ616 (PCB rev. 1.0) + BT 5.2
– Intel® Wi-Fi 6E AX210 (PCB rev. 1.1) + BT 5.3
• Storage:
– 3× M.2 PCIe Slots
– 4× SATA 6Gb/s
– RAID 0 / 1 / 10 support
• Audio: Realtek® High Definition Audio
• OS Support: Windows 10 64-bit / Windows 11 64-bit
• Form Factor: ATX (30.5 × 24.4 cm)
