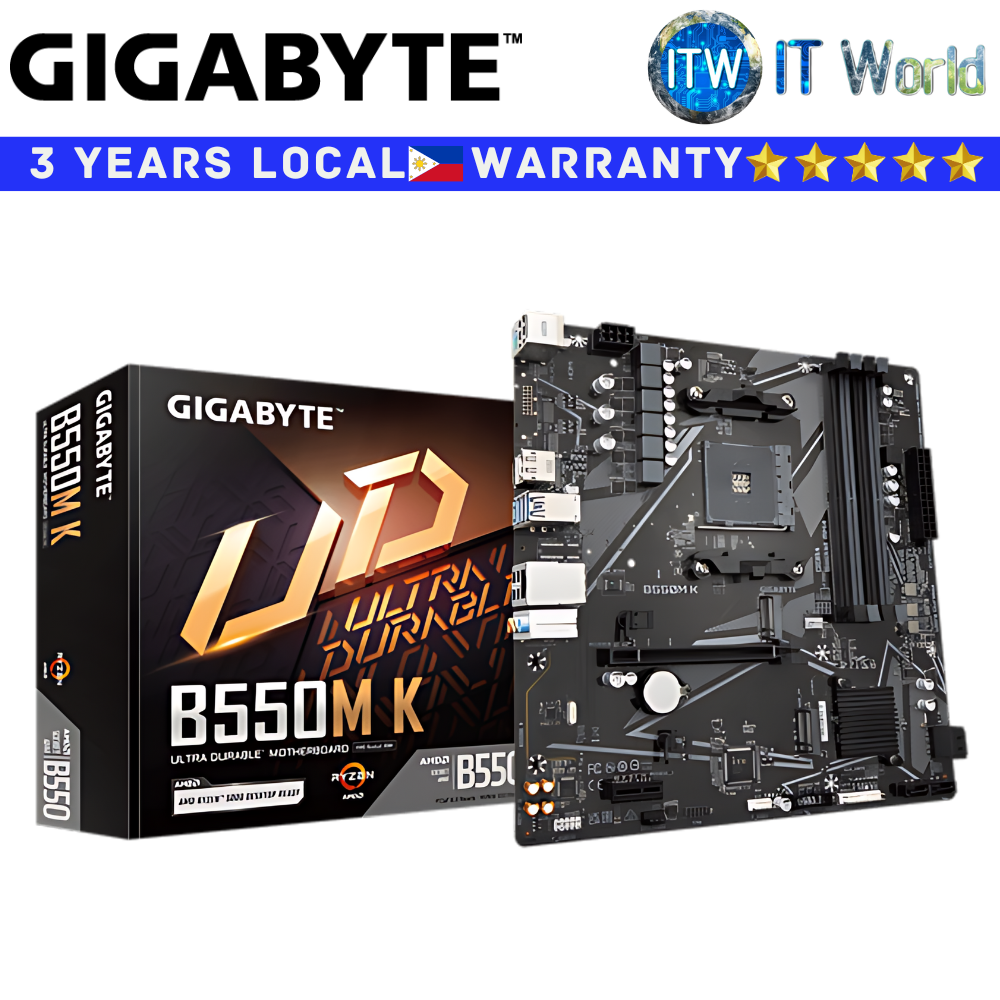

Product Name: Itw | Gigabyte Motherboard B550M-K microATX AM4 DDR4 (GA-B550M-K)
AMD B550 Ultra Durable Motherboard with Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, GbE LAN, Smart Fan 5 with FAN STOP
> Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
> Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
> Ultra Durable™ PCIe 4.0 Ready x16 Slot
> Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
> High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
> GbE LAN with Bandwidth Management
> Rear DisplayPort and HDMI for Multi-display Support
> Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
> Anti-Sulfur Resistors Design
Specification
CPU
> AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
Chipset
> AMD B550
Memory
> 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
> Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
> Dual channel memory architecture
> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
> Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
> Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
> Realtek® Audio CODEC
> High Definition Audio
> 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
> Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
> 1 x PCI Express x16 slot, integrated in the CPU:
- AMD Ryzen™ 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode * Actual support may vary by AMD CPU's specification.
- AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode
> 1 x PCI Express x1 slot, integrated in the Chipset:
- Supporting PCIe 3.0 x1 mode
Storage Interface
> 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
- AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:
- Supporting PCIe 3.0 x2 SSDs
> 4 x SATA 6Gb/s connectors, integrated in the Chipset:
- Support for RAID 0, RAID 1, and RAID 10
USB
> CPU: 4 x USB 3.2 Gen 1 ports on the back panel
> Chipset
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
> 1 x 24-pin ATX main power connector
> 1 x 8-pin ATX 12V power connector
> 1 x CPU fan header
> 1 x system fan header
> 2 x M.2 Socket 3 connectors
> 4 x SATA 6Gb/s connectors
> 1 x front panel header
> 1 x front panel audio header
> 1 x USB 3.2 Gen 1 header
> 1 x USB 2.0/1.1 header
> 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
> 1 x Clear CMOS jumper
Back Panel Connectors
> 1 x PS/2 keyboard/mouse port
> 1 x DisplayPort
> 1 x HDMI port
> 4 x USB 3.2 Gen 1 ports
> 4 x USB 2.0/1.1 ports
> 1 x RJ-45 port
> 3 x audio jacks
I/O Controller
> iTE® I/O Controller Chip
Form Factor
> Micro ATX Form Factor; 24.4cm x 24.4cm
