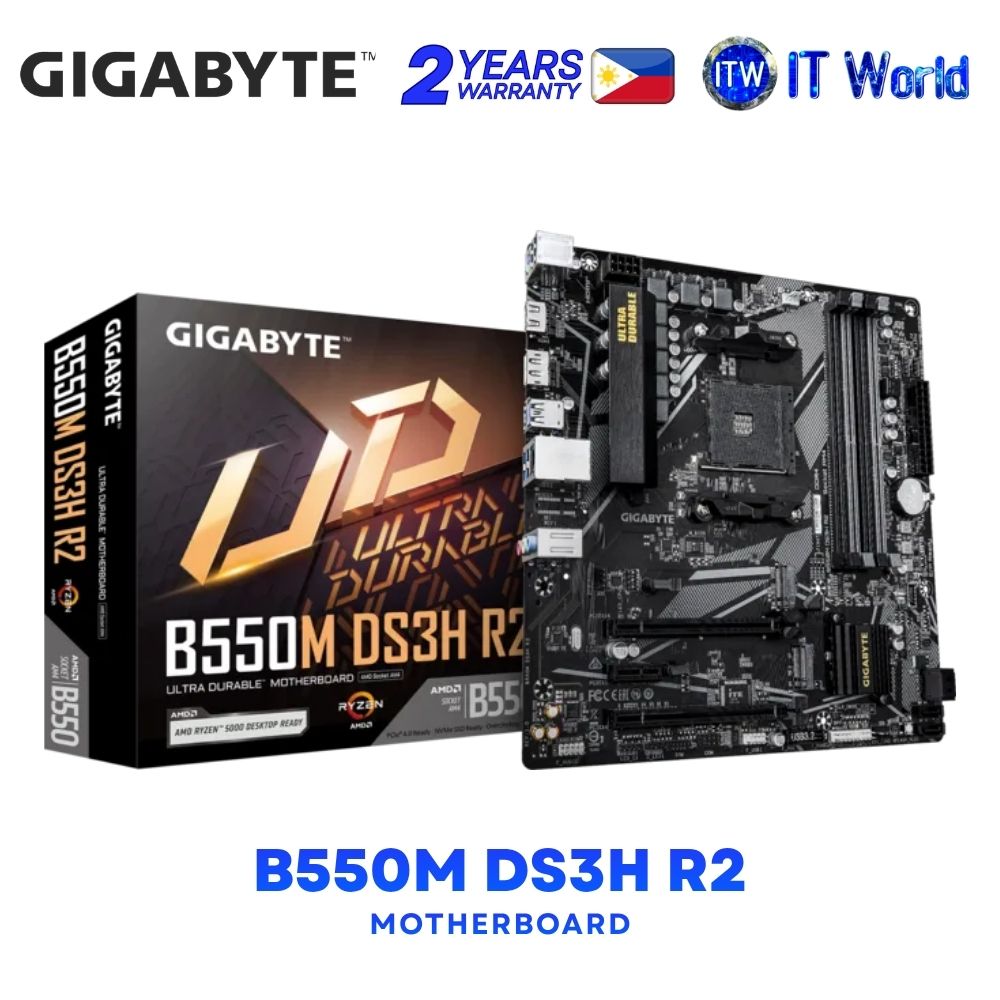

Gigabyte B550M DS3H R2 micro-ATX AM4 DDR4 AMD B550 Chipset Motherboard
Product Highlights
🔧 AMD Socket AM4 — Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
⚡ Digital VRM — 5+3 phases VRM solution
🧠 DDR4 Memory — 4× DDR4 DIMM slots, up to 128GB system memory
🚀 PCIe 4.0 — PCIe 4.0 x16 slot for graphics card with improved strength and heat dissipation
💾 Dual M.2 Storage — 2× M.2 connectors, including PCIe 4.0 support
🌡️ Thermal Solution — VRM Thermal Armor Advanced
🌐 Fast Networking — Realtek® GbE LAN up to 1Gbps
🖥️ Display Outputs — HDMI and DisplayPort
🔌 Connectivity — USB 3.2 Gen 1, USB 2.0/1.1, USB Type-C® internal header, RJ-45 and audio ports
🎮 Expansion — 1× PCI Express x16, 1× PCI Express x16 (x4) and 1× PCI Express x1
💡 RGB Support — Addressable LED and RGB LED strip headers with RGB Fusion
🔄 BIOS Features — Q-Flash Plus and Q-Flash support
💻 Operating System — Supports Windows 11 64-bit and Windows 10 64-bit
📐 Form Factor — Micro ATX, 24.4cm × 24.4cm
🎧 Audio — Realtek® ALC1220 CODEC with High Definition Audio
💽 SATA Storage — 4× SATA 6Gb/s connectors with RAID 0, RAID 1 and RAID 10 support
Specifications
📋 Brand: Gigabyte
📋 Model: B550M DS3H R2
📋 Product Type: Micro-ATX AM4 DDR4 AMD B550 Chipset Motherboard
📋 CPU Socket: AMD Socket AM4
📋 Chipset: AMD B550
📋 Memory: 4× DDR4 DIMM, up to 128GB
📋 M.2: 2× M.2 Socket 3 connectors
📋 SATA: 4× SATA 6Gb/s
📋 LAN: Realtek® GbE LAN
📋 Form Factor: Micro ATX, 24.4cm × 24.4cm
