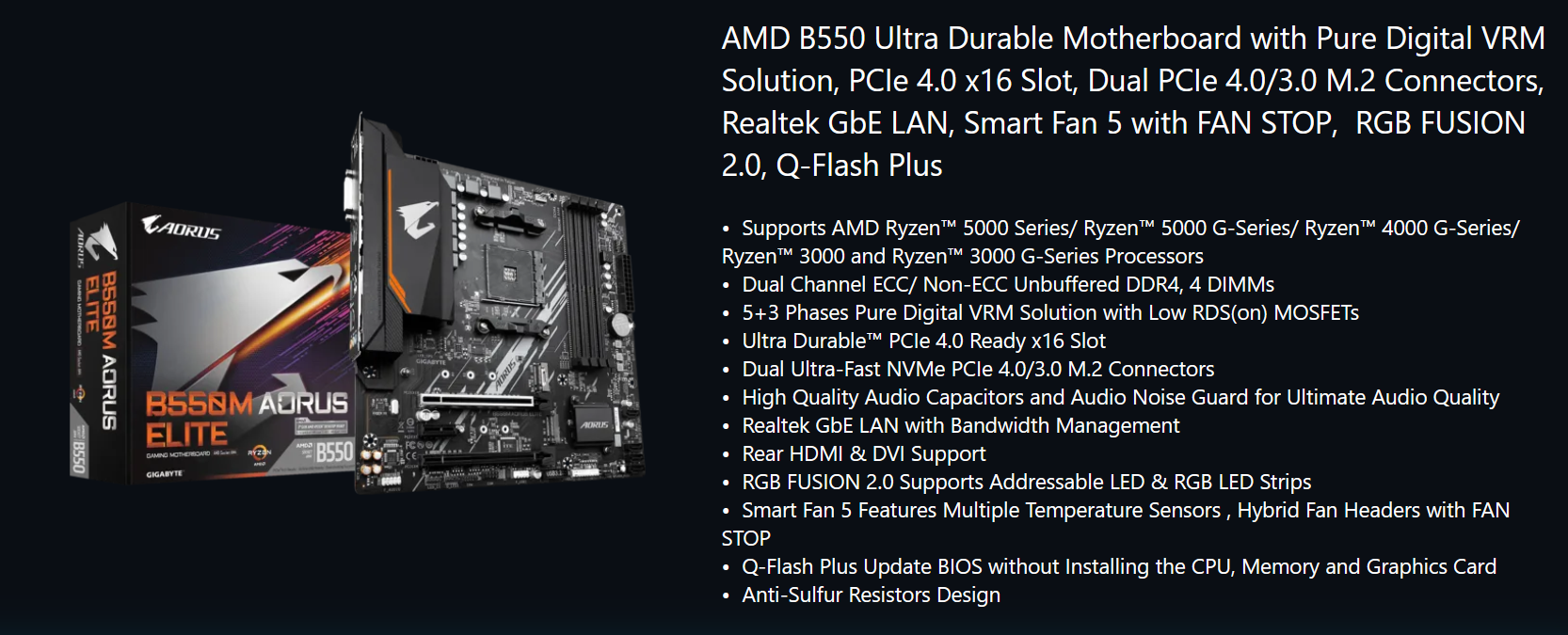

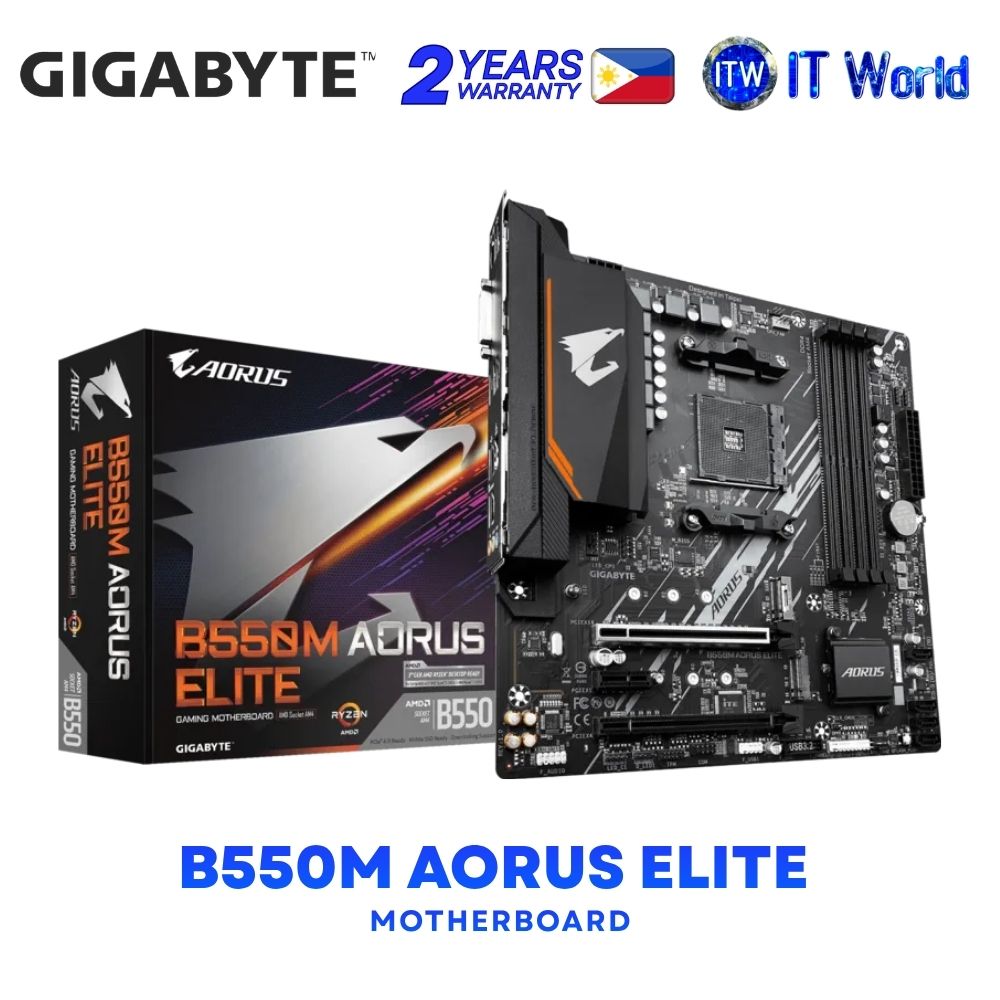

Gigabyte B550M Aorus Elite micro-ATX AM4 DDR4 AMD B550 Chipset Motherboard GA-B550M-AORUS-ELITE
🚀 AMD B550 Platform – Micro-ATX motherboard with AMD B550 chipset and AM4 socket, supporting AMD Ryzen™ 5000, 5000 G-Series, 4000 G-Series, 3000, and 3000 G-Series processors.
⚡ 5+3 Phase Digital VRM – Pure Digital VRM Solution with Low RDS(on) MOSFETs for reliable power delivery.
🧠 DDR4 Memory Support – 4 x DDR4 DIMM slots supporting up to 128GB system memory, with dual-channel architecture, ECC/non-ECC unbuffered DIMM, and XMP support.
🎮 PCIe 4.0 Ready – Features a PCI Express x16 slot supporting PCIe 4.0 x16 mode with compatible Ryzen™ processors.
💾 Dual M.2 Connectors – 2 x M.2 Socket 3 connectors supporting SATA and PCIe SSDs, with PCIe 4.0 support available on the CPU-connected M.2 slot with compatible processors.
💽 Storage Expansion – 4 x SATA 6Gb/s connectors with support for RAID 0, RAID 1, and RAID 10.
🌐 Realtek GbE LAN – Integrated Realtek Gigabit Ethernet supporting 1 Gbps / 100 Mbps / 10 Mbps connectivity with bandwidth management.
🎧 High-Quality Audio – Realtek Audio CODEC with High Definition Audio and support for 2/4/5.1/7.1-channel audio.
🖥️ Display Outputs – 1 x HDMI port supporting up to 4096×2160@60Hz and 1 x DVI-D port supporting up to 1920×1200@60Hz.
🔌 USB Connectivity – 4 x USB 3.2 Gen 1 and 4 x USB 2.0/1.1 ports on the rear panel, plus additional internal USB headers.
🌈 RGB FUSION 2.0 – Supports addressable LED and RGB LED strips for customizable lighting setups.
❄️ Smart Fan 5 – Multiple temperature sensors and hybrid fan headers with FAN STOP for flexible cooling control.
🔧 Q-Flash Plus – Update the BIOS without installing the CPU, memory, or graphics card.
🛡️ Durable Design – Features Anti-Sulfur Resistors and Ultra Durable™ PCIe 4.0 Ready design.
📐 Form Factor: Micro ATX – 24.4cm × 24.4cm
🛡️ Operating System Support: Windows 11 64-bit / Windows 10 64-bit
