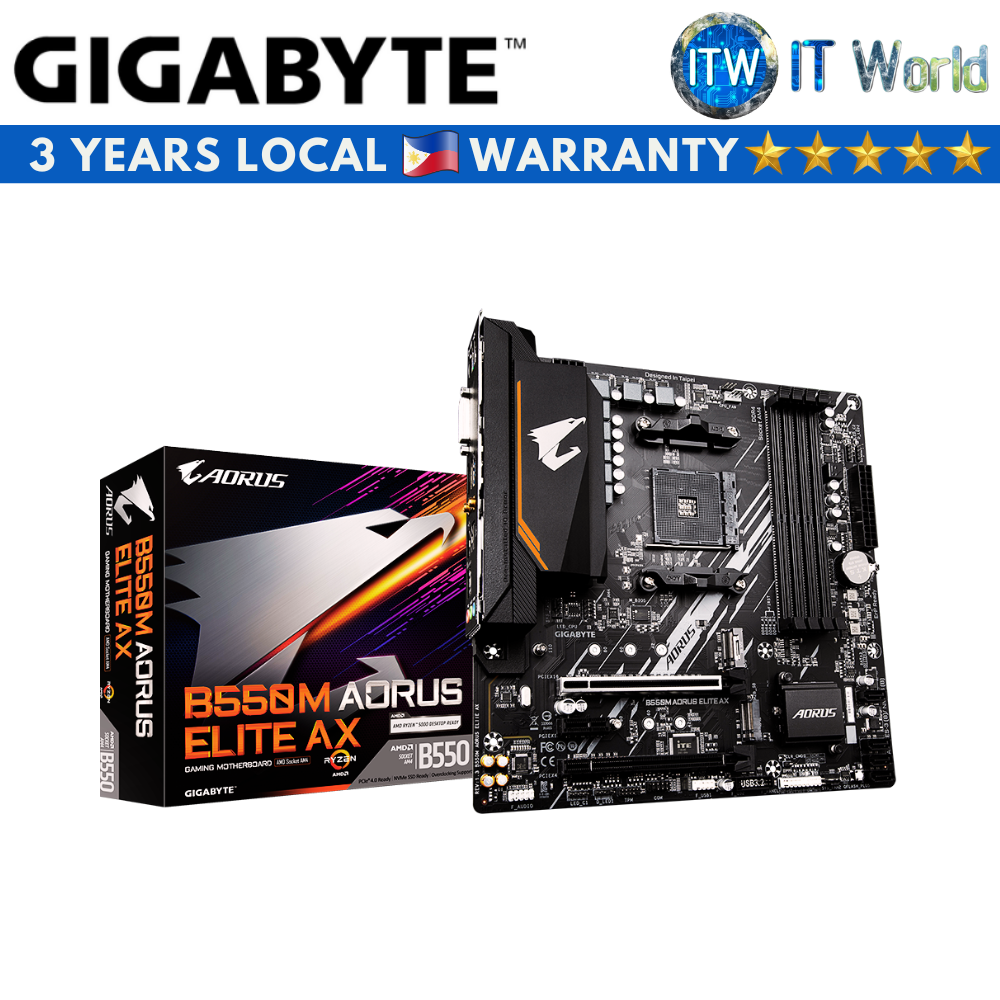

Gigabyte B550M Aorus Elite AX microATX AM4 DDR4 Motherboard (GA-B550M-AORUS-ELITE-AX)

Product Name: Itw | Gigabyte B550M Aorus Elite AX microATX AM4 DDR4 Motherboard (GA-B550M-AORUS-ELITE-AX)

Key Features

- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs

- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

- Ultra Durable™ PCIe 4.0 Ready x16 Slot

- Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors

- Onboard Wi-Fi 6E 802.11ax & BT 5.3

- High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality

- Realtek GbE LAN with Bandwidth Management

- Rear HDMI & DVI Support

- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips

- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

- Anti-Sulfur Resistors Design

Specification

CPU

- AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

Chipset

- AMD B550

Memory

- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

- Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

- Dual channel memory architecture

- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*

* ECC memory (ECC mode) support varies by CPU

- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

- Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

~Integrated in the AMD Ryzen™ 5000 G-Series/4000 G-Series Processors:

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

Audio

- Realtek® Audio CODEC

- High Definition Audio

- 2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

- Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Wireless Communication module

~ Realtek® Wi-Fi 6E RTL8852CE

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Expansion Slots

~ 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

- AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode

* Actual support may vary by AMD CPU's specification.

- AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

- 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

* Supporting PCIe 3.0 x4 mode

- 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:

* Supporting PCIe 3.0 x1 mode

Storage Interface

~ 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs

- AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs

- AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

~ 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs

~ 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10

USB

~ CPU: 4 x USB 3.2 Gen 1 ports on the back panel

~ Chipset

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Back Panel Connectors

- 1 x PS/2 keyboard/mouse port

- 1 x DVI-D port

- 1 x HDMI port

- 2 x SMA antenna connectors (2T2R)

- 4 x USB 3.2 Gen 1 ports

- 4 x USB 2.0/1.1 ports

- 1 x RJ-45 port

- 3 x audio jacks

Form Factor

- Micro ATX; 24.4cm x 24.4cm
