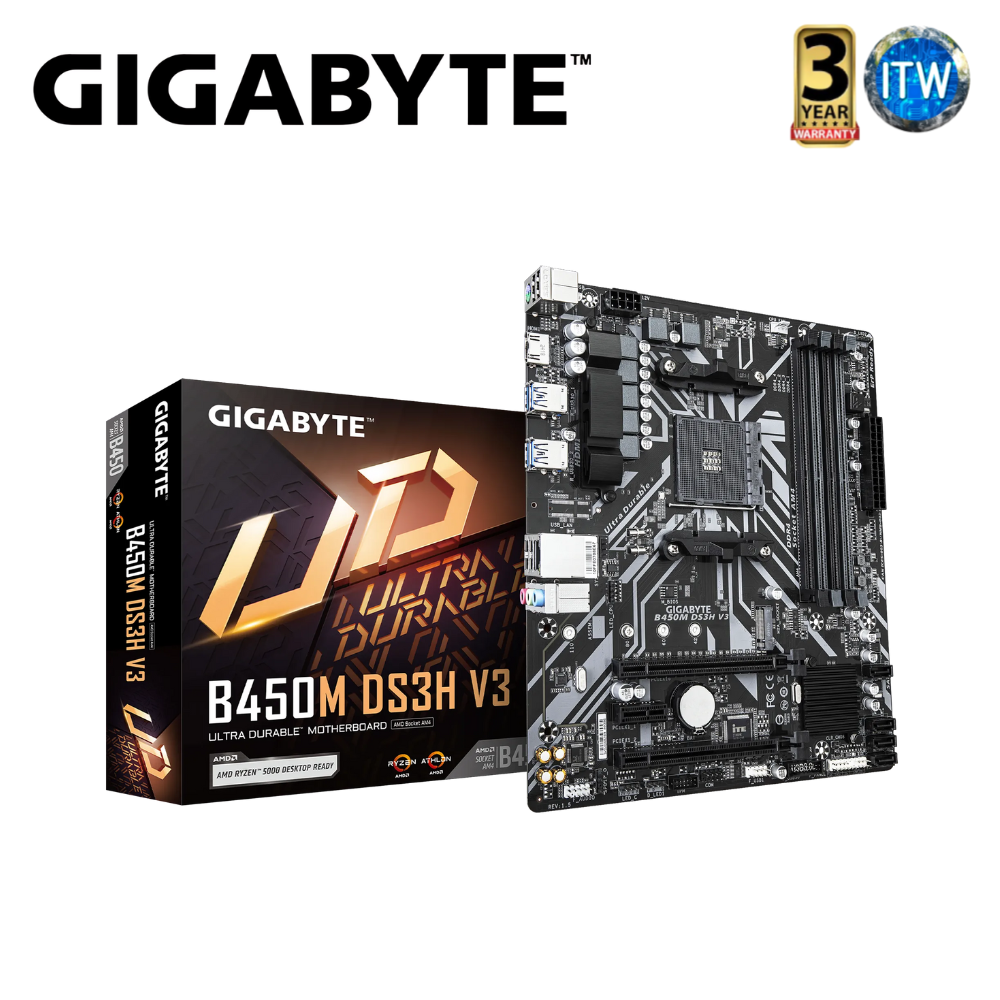

Product Name: Itw | Gigabyte Motherboard B450M DS3H V3 - AMD B450 Ultra Durable MATX AM4 DDR4 (GA-B450M-DS3H-V3)
Key Feature
• Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• HDMI, DVI-D Ports for Multiple Display
• Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• RGB Fusion supports RGB LED Strips in 7-Colors
• Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
• Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
• APP Center Including EasyTune™ and Cloud Station™ Utilities
• CEC 2019 Ready, Save Power with a Simple Click
Specification
CPU
• AM4 Socket: Supports AMD Ryzen™ 5000 series / Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Chipset
• AMD B450
Memory
• 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory
• Dual channel memory architecture
• Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor:
• 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)
* Support for HDMI 2.0 version and HDCP 2.2.(Note)
Audio
• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out
Lan
• Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
• 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
• 1 x PCI Express x16 slot, running at x4 (PCIEX4)
• 1 x PCI Express x1 slot
• (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Interface
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
* Actual support may vary by CPU.
* Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
• 4 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB
Chipset:
• 2 x USB 3.1 Gen 1 ports available through the internal USB header
• 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
• 4 x USB 3.1 Gen 1 ports on the back panel
Form Factor
• Micro ATX Form Factor; 24.4cm x 21.5cm
