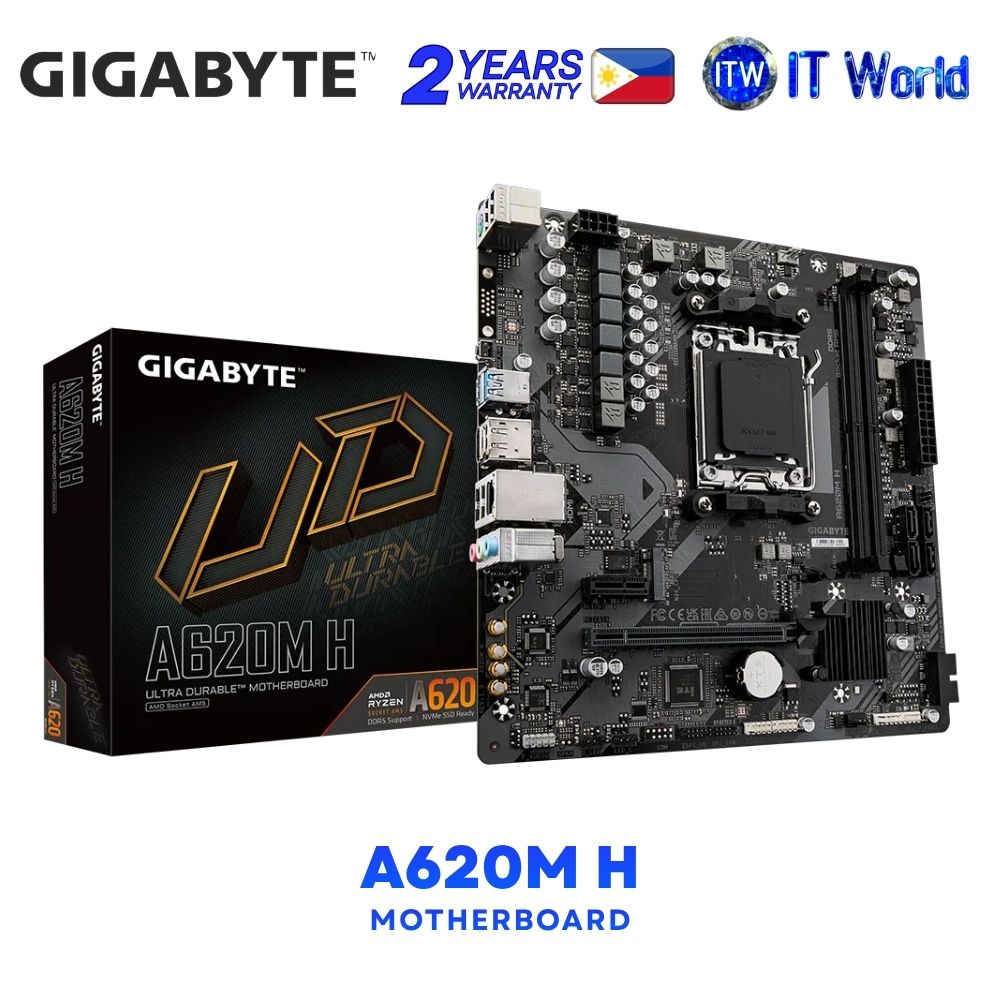

Gigabyte A620M H micro-ATX AM5 DDR5 AMD A620 Chipset Motherboard
✨ Build your PC with the GIGABYTE A620M H, a Micro-ATX motherboard designed for AMD Ryzen™ 7000, 8000, and 9000 Series processors. Featuring DDR5 memory support, PCIe 4.0 storage connectivity, and essential expansion options, it provides a solid foundation for your desktop PC build.
Key Features & Specifications
🧠 Processor Support: AMD Socket AM5, compatible with AMD Ryzen™ 7000, 8000, and 9000 Series processors.
⚡ Chipset: AMD A620 chipset.
💾 Memory: 2 × DDR5 DIMM slots, up to 128GB system memory, dual-channel architecture, and AMD EXPO™ / Intel® XMP support.
🚀 Memory Speed: Supports DDR5 memory speeds up to 6400 MT/s (OC), depending on CPU and memory configuration.
🔌 Expansion Slots: 1 × PCIe 4.0 x16 slot (CPU-dependent) and 1 × PCIe 3.0 x1 slot.
💨 Storage: 1 × PCIe 4.0 x4 M.2 connector (CPU-dependent) and 4 × SATA 6Gb/s connectors.
🖥️ Display Outputs: 1 × DisplayPort 1.4 and 1 × HDMI 2.1, with support for up to 3 displays depending on CPU capabilities.
🌐 Networking: Realtek® Gigabit Ethernet LAN supporting 10/100/1000 Mbps.
🎧 Audio: Realtek® Audio CODEC with High Definition Audio and up to 7.1-channel audio support.
🔗 USB Connectivity: Rear USB 3.2 Gen 1 and USB 2.0/1.1 ports, with additional connectivity through internal headers.
🌡️ Smart Fan 6: Multiple temperature sensors, hybrid fan headers, and FAN STOP support.
🛠️ Easy BIOS Updates: Q-Flash Plus allows BIOS updates without installing the CPU, memory, or graphics card.
🔒 EZ-Latch: PCIe x16 slot features a quick-release design.
💡 RGB Support: Addressable LED strip header and RGB LED strip header.
🔹 Operating System: Supports Windows 10 64-bit and Windows 11 64-bit.
Physical Specifications
📐 Brand: GIGABYTE
📐 Model: A620M H
📐 Product Type: Motherboard
📐 Chipset: AMD A620
📐 CPU Socket: AMD AM5
📐 Memory Type: DDR5
📐 Form Factor: Micro-ATX
📐 Motherboard Dimensions: 23.0 × 22.5 cm
⚠️ Reminders
1️⃣ Please record a full unboxing video as proof in case of issues.
2️⃣ Verify the delivery rider’s ID or take a photo with your payment for security.
