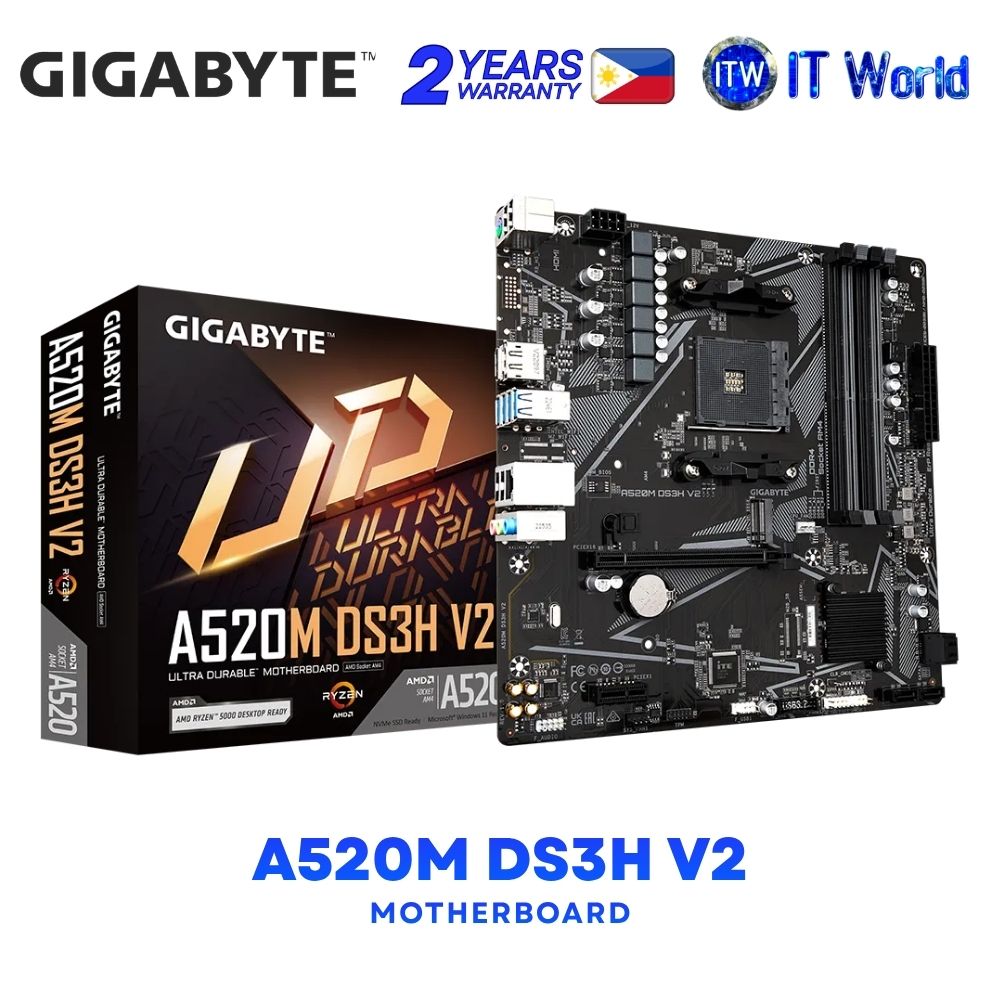

Gigabyte A520M DS3H V2 micro-ATX AM4 DDR4 AMD A520 Chipset Motherboard
Product Description
Build your PC with the GIGABYTE A520M DS3H V2 Motherboard, featuring the AMD A520 chipset, AM4 socket, and DDR4 memory support. Designed for compatible AMD Ryzen processors, it offers reliable connectivity, flexible storage options, and smart cooling features for your PC build.
Key Features & Specifications
️ Brand: GIGABYTE
Model: A520M DS3H V2
Product Type: Motherboard
Form Factor: Micro-ATX (24.4 × 24.4 cm)
⚙️ Chipset: AMD A520
CPU Socket: AMD AM4
Processor Support: AMD Ryzen™ 5000 Series, Ryzen™ 5000 G-Series, Ryzen™ 4000 G-Series, Ryzen™ 3000 Series, and Ryzen™ 3000 G-Series processors
Memory Support: 4 × DDR4 DIMM slots, up to 128GB, dual-channel architecture
Memory Speed: Up to DDR4 4733 MHz (O.C.); supported speeds depend on the processor and memory configuration
Expansion Slots: 1 × PCIe 3.0 x16 and 1 × PCIe 3.0 x1
Storage: 1 × M.2 connector supporting SATA and PCIe 3.0 x4/x2 SSDs, plus 4 × SATA 6Gb/s connectors
️ Display Outputs: 1 × DisplayPort (up to 5120 × 2880 @ 60Hz) and 1 × HDMI (up to 4096 × 2160 @ 60Hz)
Networking: Realtek Gigabit Ethernet LAN (1 Gbps/100 Mbps) with bandwidth management
Audio: Realtek High Definition Audio with support for up to 7.1-channel audio
USB Connectivity: 4 × rear USB 3.2 Gen 1, 2 × rear USB 2.0/1.1, plus internal USB headers for additional ports
️ Cooling: Smart Fan 5 with multiple temperature sensors, hybrid fan headers, and FAN STOP
️ Durability: Ultra Durable™ design, digital VRM solution, audio noise guard, and anti-sulfur resistor design
Operating System: Windows 11 64-bit and Windows 10 64-bit support
