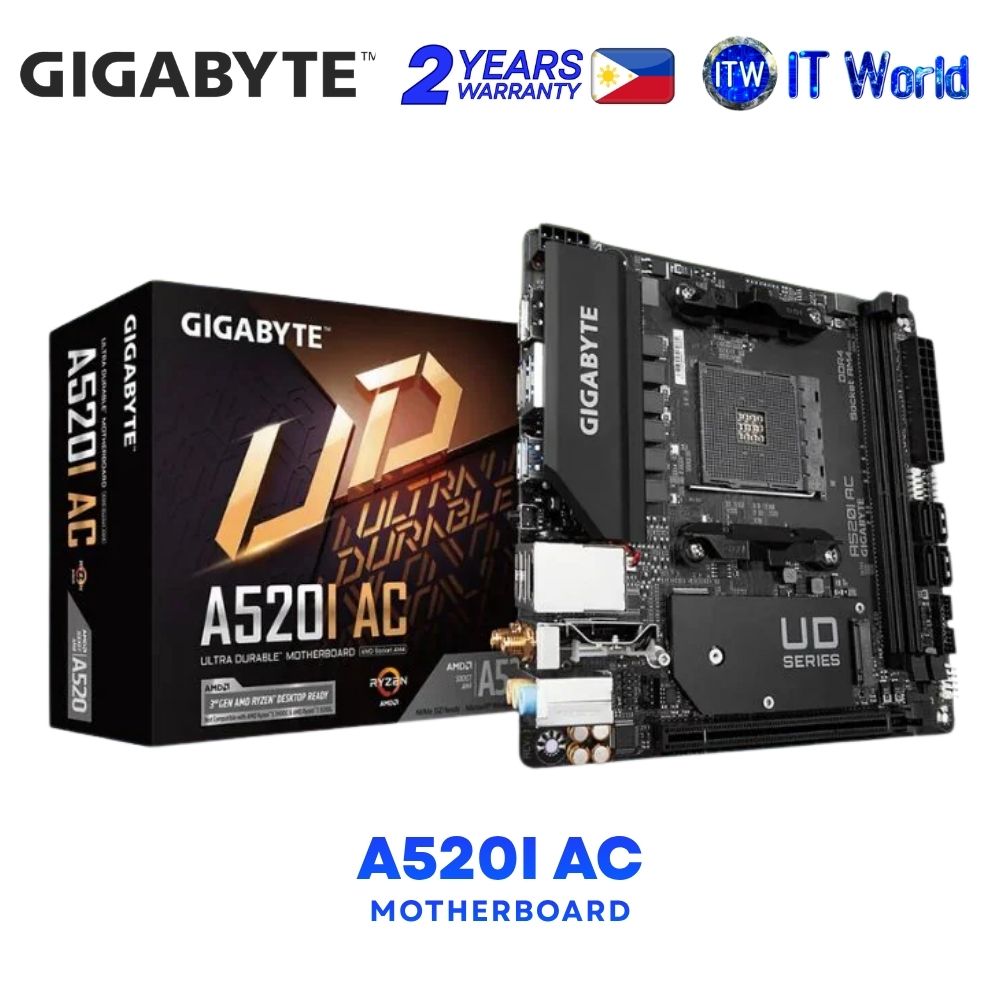

Gigabyte A520I mini-ITX AM4 DDR4 AMD A520 Chipset Motherboard GA-A520I-AC
Compact Mini-ITX Design
📐 Mini-ITX form factor measuring 17.0 cm × 17.0 cm, ideal for compact PC builds.
AMD AM4 Platform
⚙️ Supports AMD Ryzen™ 5000 Series, Ryzen™ 5000 G-Series, Ryzen™ 4000 G-Series, Ryzen™ 3000, and Ryzen™ 3000 G-Series processors.
⚙️ Powered by the AMD A520 chipset.
6-Phase Digital VRM
💪 Direct 6 Phases Digital VRM solution with 55A DrMOS for power delivery.
DDR4 Memory Support
🧠 2 × DDR4 DIMM slots
🧠 Supports up to 64GB system memory
🧠 Dual-channel memory architecture
🧠 Supports DDR4 speeds up to 5300(O.C.) MHz
🧠 Supports ECC and non-ECC Unbuffered DIMMs and XMP memory.
Fast Storage Options
💾 1 × M.2 Socket 3 connector supporting 2260/2280 SATA and PCIe 3.0 x4/x2 SSDs
💾 4 × SATA 6Gb/s connectors
💾 Supports RAID 0, RAID 1, and RAID 10
Built-In Wi-Fi & Bluetooth
📶 Dual-band 802.11ac Wi-Fi supporting 2.4GHz/5GHz
📶 Bluetooth 4.2
📶 Includes Ultra Durable™ antenna connectors.
Gigabit LAN
🌐 Realtek® GbE LAN with 10/100/1000 Mbit connectivity
🌐 LAN bandwidth management support.
Multi-Display Support
🖥️ 1 × DisplayPort supporting up to 5120×2880 @ 60Hz
🖥️ 2 × HDMI supporting up to 4096×2160 @ 60Hz
🖥️ Supports up to 3 displays simultaneously.
PCIe Expansion
🎮 1 × PCI Express x16 slot
🎮 Supports PCIe 3.0, running at x16.
USB Connectivity
🔌 4 × USB 3.2 Gen 1 ports on the rear panel
🔌 2 × USB 3.2 Gen 1 via internal header
🔌 4 × USB 2.0/1.1 ports.
High Definition Audio
🎵 Realtek® Audio CODEC
🎵 Supports 2/4/5.1/7.1-channel audio.
RGB FUSION 2.0
🌈 Supports addressable LED and RGB LED strips for customizable lighting.
Smart Fan 5
❄️ Multiple temperature sensors
❄️ Hybrid fan headers
❄️ FAN STOP support
❄️ Fan speed and temperature monitoring.
Q-Flash Plus
🔄 Update the BIOS without installing the CPU, memory, or graphics card.
Durable Design
🛡️ Ultra Durable™ design
🛡️ Anti-Sulfur Resistors Design.
Operating System Support
💻 Windows 11 64-bit
💻 Windows 10 64-bit
