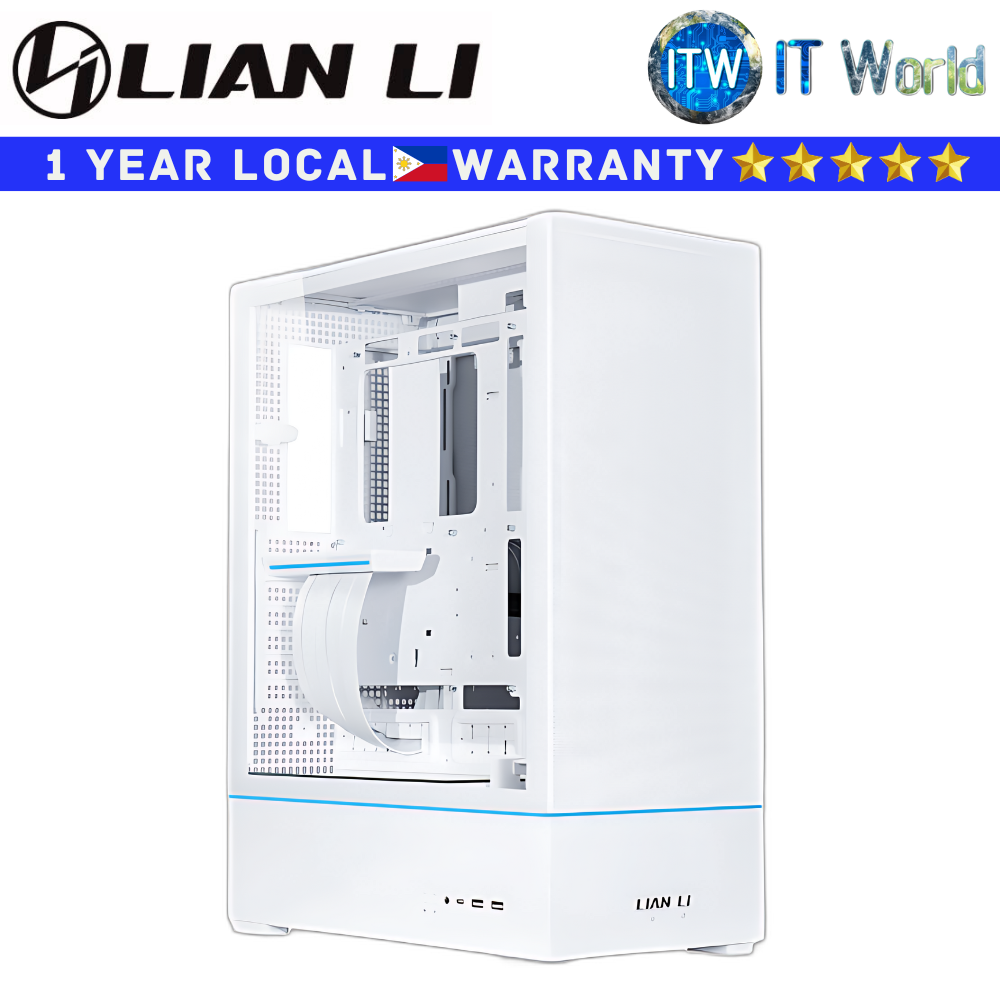

Product Name: Itw | Lian Li Computer PC Case SUP01 Small Tower Case Tempered Glass (Black | White)
SUP01
* 45-liter stand-up platform case for a minimal footprint
* Front-facing GPU installation with adjustable mounting brackets for a unique visual and cooling approach
* Independent chambered direct cooling design that brings the most effective heat dissipation for all core components
* Includes 510mm PCIe 4.0 riser cable with an RGB lighting cover that shares the same lighting effects with the case ARGB strip
* Includes an exterior 120mm fan mounting bracket at the rear to push fresh air into the chassis
* Includes 3 x 120mm performance fans at the side for GPU exhaust
* Supports 360mm/280mm AIO with a maximum pump height of 88.2mm
* Supports standard motherboards up to ATX size and back-connect ATX motherboards
Specification
* PRODUCT NAME: SUP01
* MODEL: SUP01X BLACK | SUP01W WHITE
* COLOR: Black | White
* CASE TYPE: Small Tower Case
* DIMENSION
> (D) 403.45mm x (W) 212mm x (H) 534mm
> (D) 403.45mm x (W) 212mm x (H) 524mm (w/o feet)
* CAPACITY: 44.8L
* MATERIAL
> Steel
> 4.0mm Tempered Glass
* RISER CABLE TYPE: PCIE 4.0
* MOTHERBOARD SUPPORT
> ATX / M-ATX / ITX
> ATX Back Connect
* PSU SUPPORT: ATX (Max 220mm)
* INCLUDED FAN: 3 x 120mm PWM
* FAN SUPPORT
> Side 1: 3 x 120mm
> Side 2: 3 x 120mm or 2 x 140mm
> Rear exterior: 1 x 120mm
* RADIATOR SUPPORT: Side 2: 360mm or 280mm
* DRIVE SUPPORT
> Drive Cage: 2 × 2.5” SSD or 2 × 3.5” HDD
> Above PSU shroud:2 × 2.5” SSD
* GPU LENGTH CLEARANCE: Max 400mm
* CPU HEIGHT CLEARANCE: Max 88.2mm
* EXPANSION SLOTS
> 7 (for low profile card)
> 4 (for standard profile card with extension cable)
* I/O PORTS
> 1 x Power Button
> 1 x Reset Button
> 2x USB 3.0 TYPE-A
> 1x USB 3.1 TYPE-C
> 1x Mic
> 1 x Light Color Button (C)
> 1 x Light Mode Button (M)
* DUST FILTER
> 1 x bottom tray
> 1 x front magnatic
> 1 x top magnatic
* WARRANTY: 1 year
