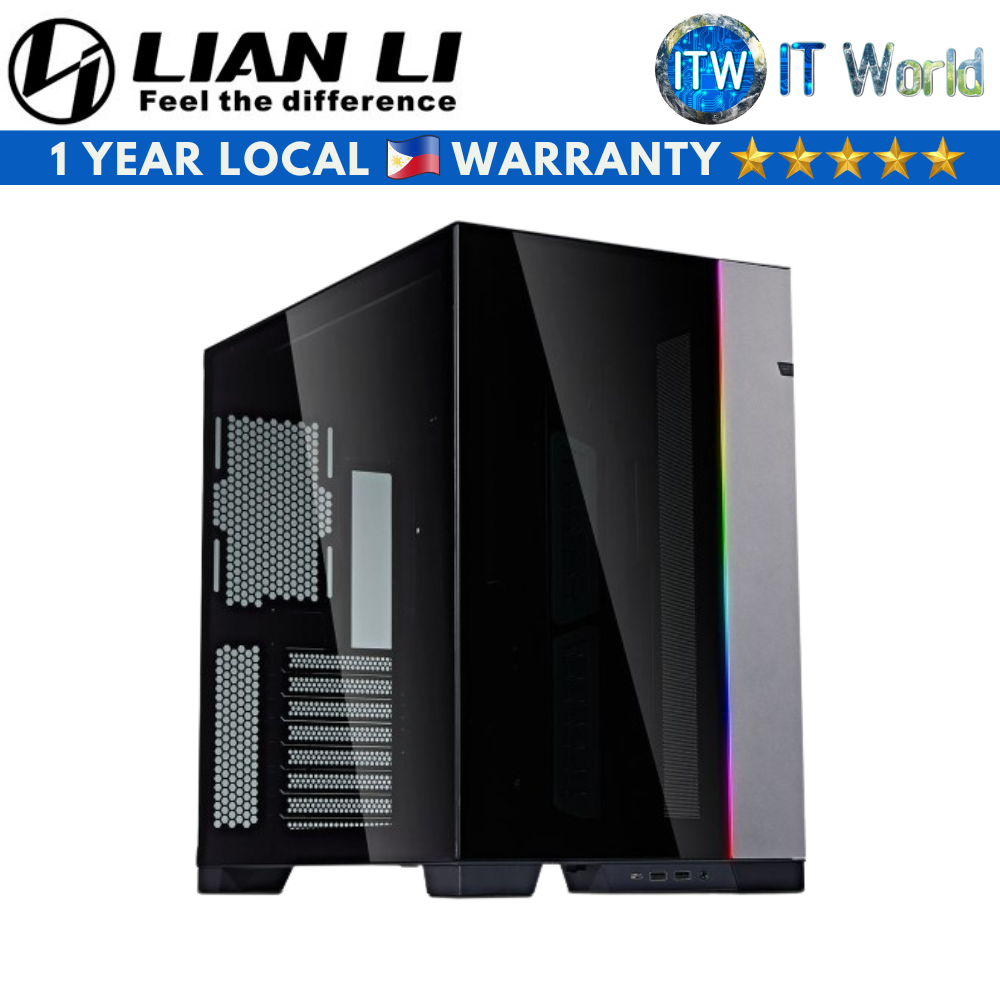

Product Name: Itw | Lian Li Computer PC Case O11 Dynamic EVO Grey Mid-Tower Tempered Glass
Details
* Mid-tower chassis with two modes: Normal Mode/ Reverse Mode
* Feature multi-directional power button and movable IO module
* Front and side tempered glass panels for components and RGB display
* Supports up to 3x 360 radiators and a maximum of 10 fans
* Offers 9 storage drives mounting space
* Dual-chamber layout with hooks friendly cable management compartment
* Number of PSU supported : 2
* Five optional accessories: Vertical GPU Kit / Upright GPU Kit / Additional I/O kit / Front Mesh Kit / Top I/O Kit
Specification
- PRODUCT NAME: O11 DYNAMIC EVO
- COLOR: White
- DIMENSION: (D)465mm × (W)285mm × (H)459mm
- MATERIAL
> 4mm Aluminum
> 4mm Tempered Glass
> 1mm Steel Structure
- MOTHERBOARD SUPPORT: E-ATX (width: under 280mm)/ATX /M-ATX/ITX
- PSU SUPPORT: 220mm
- FAN SUPPORT
> Top: 120mm × 3 or 140mm × 2
> Side: 120mm × 3 or 140mm × 2
> Bottom: 120mm × 3 or 140mm × 2
> Rear: 120mm × 1
> On Drive Cage: 60mm × 1
- RADIATOR SUPPORT
> Top: 360mm × 1 or 280mm × 1
*Total max thickness: 87.5mm
> Side: 360mm × 1 or 280mm × 1
*Inner scenario total max thickness:
> 83mm(120mm fan on top and bottom)
> 63mm(140mm fan on top and bottom)
*Outer scenario total max. thickness：
> 120mm(120mm fan on top and bottom)
> 100mm(140mm fan on top and bottom)
> Bottom: 360mm × 1
*Total max thickness: 87.5mm
- DRIVE SUPPORT
> Bottom: 2.5” SSD × 4 or 3.5” HDD × 2
> Side: 2.5” SSD × 4 or 3.5” HDD × 2
> Drive Cage: 2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1
> Cable Management Bar: 2.5” SSD × 2
*Only 9 sets of 2.5” SSD mounting pads are provided
- GPU LENGTH CLEARANCE: 426 mm
- CPU HEIGHT CLEARANCE: 167 mm
- EXPANSION SLOTS: 8
- I/O PORTS
> 2 × USB 3.0
> 1 × USB 3.1 TYPE-C,
> 1 × HD AUDIO/ MIC
> LED Color and Mode button
> Reset Button
> Power Button
- DUST FILTER: Bottom × 1
