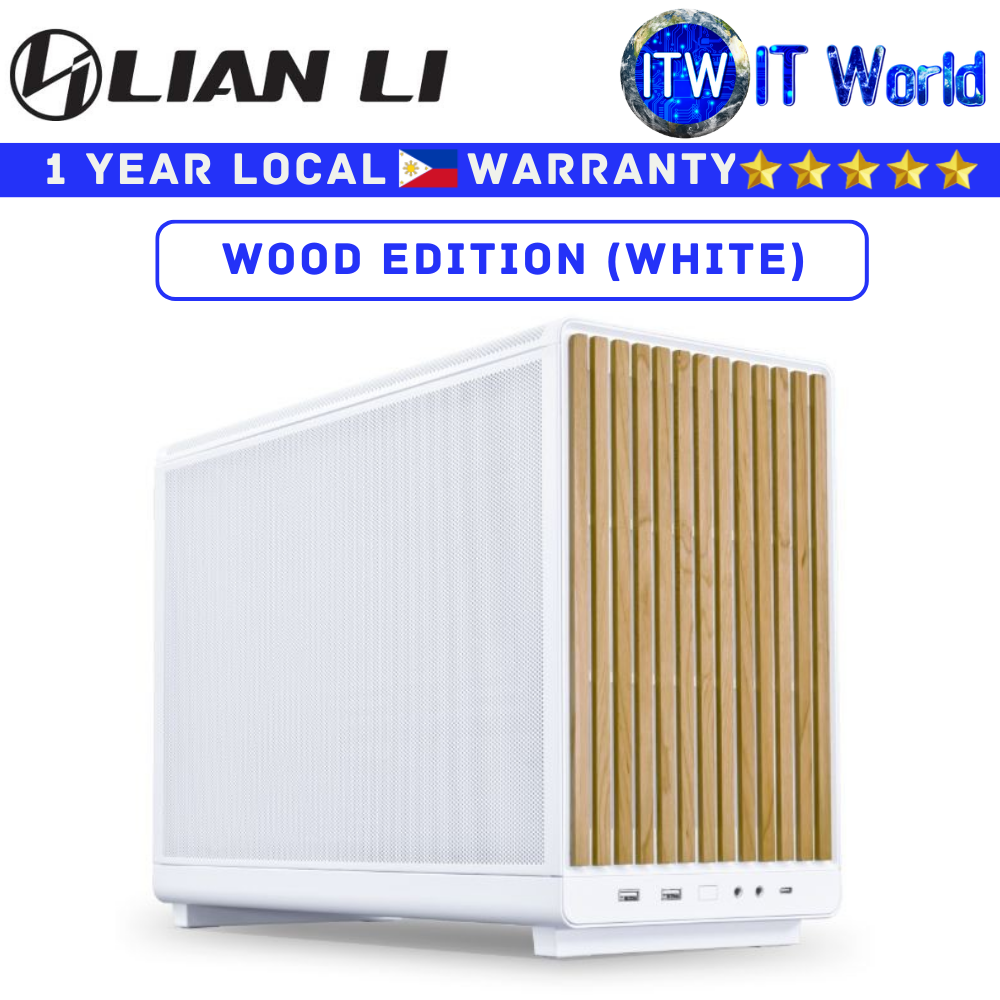

Product Name: Itw | Lian Li Computer PC Case A3-mATX Minimalistic (Black | White | Wooden Black | Wooden White)
A3-mATX
> Minimalistic sleek design 26.3L micro form factor chassis
> Side and top panels are designed with steel mesh
> Accommodates M-ATX and ITX motherboard with 4 slots 415mm large GPU
> Supports up to 360 radiator and 10 x 120mm fans
> Supports ATX/SFX/SFX-L and LIAN LI Edge PSU that can be mounted sideways or frontways
> In collaboration with DAN Cases for the case design whereas manufactured and sold by LIAN LI.
*** A3-mATX BLACK | WHITE ***
Specification
* MODEL NAME: A3-mATX
* MODEL NO.: A3-mATX BLACK | A3-mATX WHITE
* COLOR: Black | White
* CASE TYPE: MFF (Micro Form Factor)
* DIMENSION
> (D) 443mm x (W) 194mm x (H) 321.5mm
> (D) 443mm x (W) 194mm x (H) 306mm(w/o feet)
* CAPACITY: 26.3L
* MATERIAL: Steel
* MOTHERBOARD SUPPORT: M-ATX / ITX
* PSU SUPPORT: ATX / SFX / SFX-L (Max 220mm)
* FAN SUPPORT
> Top: 3 x 120mm
> Side: 3 x 120mm or 2 x 140mm
> Bottom: 3 x 120mm
> Rear: 1 x 120mm
* RADIATOR SUPPORT
> Top: 1 x 360 / 240mm
> Side: 1 x 360 / 280 / 240mm
> Bottom: 1 x 240mm (360mm with fan at the bottom)
* DRIVE SUPPORT
> Tray: 2 × 2.5” SSD
> Bottom: 1 × 2.5” SSD or 1 × 3.5” HDD
* GPU LENGTH CLEARANCE: Max 415mm
* CPU HEIGHT CLEARANCE: Max 165mm
* EXPANSION SLOTS: 4
* I/O PORTS
> 1 x Power Button
> 2 x USB 3.0 TYPE-A
> 1 x USB 3.1 TYPE-C
> 1 x Mic
> 1 x HD Audio
* DUST FILTER: 1 x Bottom
*** A3-mATX Wooden Edition BLACK | WHITE ***
Specification
* MODEL NAME: A3-mATX
* MODEL NO.: A3-mATX-WD BLACK | A3-mATX-WD WHITE
* COLOR: Black (Wood Edition) | White (Wood Edition)
* CASE TYPE: MFF (Micro Form Factor)
* DIMENSION
> (D) 443mm x (W) 194mm x (H) 321.5mm
> (D) 443mm x (W) 194mm x (H) 306mm (w/o feet)
* CAPACITY: 26.3L
* MATERIAL: Steel
* MOTHERBOARD SUPPORT: M-ATX / ITX
* PSU SUPPORT: ATX / SFX / SFX-L (Max 220mm)
* FAN SUPPORT
> Top: 3 x 120mm
> Side: 3 x 120mm or 2 x 140mm
> Bottom: 3 x 120mm
> Rear: 1 x 120mm
* RADIATOR SUPPORT
> Top: 1 x 360 / 240mm
> Side: 1 x 360 / 280 / 240mm
> Bottom: 1 x 240mm (360mm with fan at the bottom)
* DRIVE SUPPORT
> Tray: 2 × 2.5” SSD
> Bottom: 1 × 2.5” SSD or 1 × 3.5” HDD
* GPU LENGTH CLEARANCE: Max 415mm
* CPU HEIGHT CLEARANCE: Max 165mm
* EXPANSION SLOTS: 4
* I/O PORTS
> 1 x Power Button
> 2 x USB 3.0 TYPE-A
> 1 x USB 3.1 TYPE-C
> 1 x Mic
> 1 x HD Audio
* DUST FILTER
> 1 x Bottom
> 1 x Front
