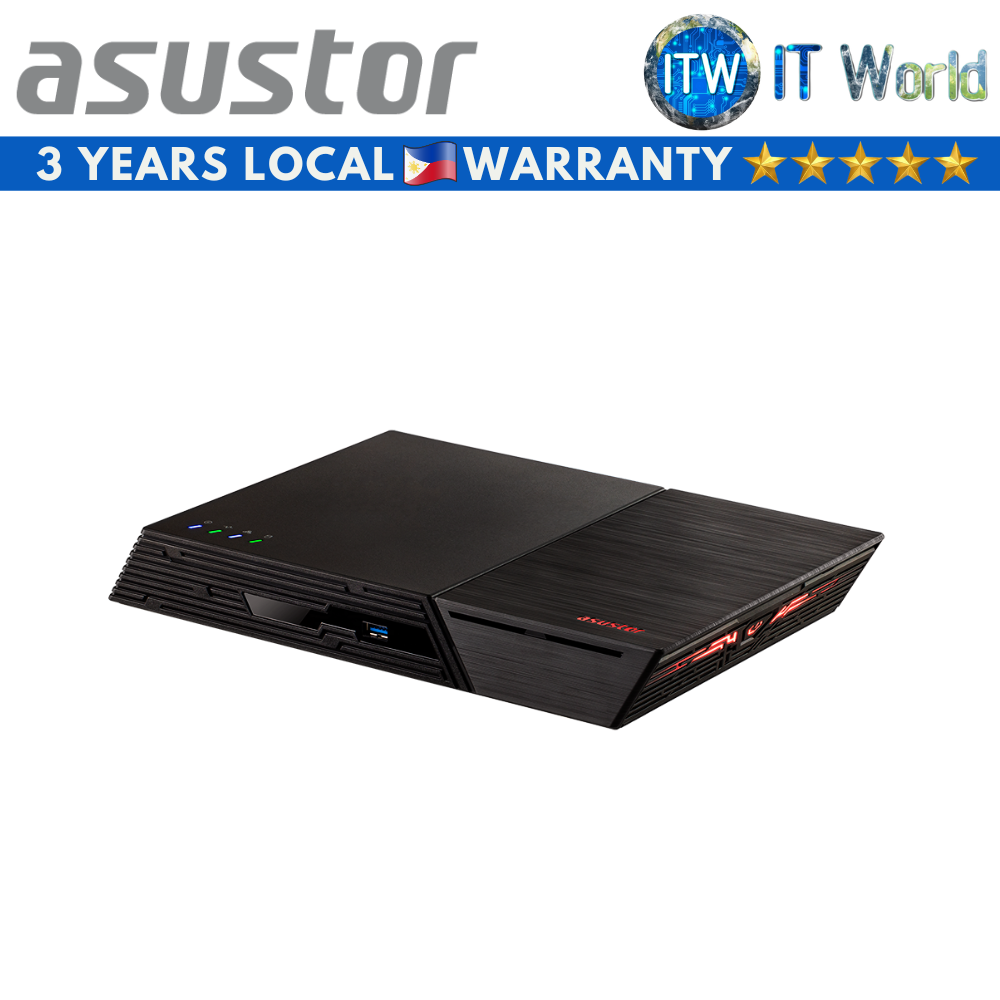

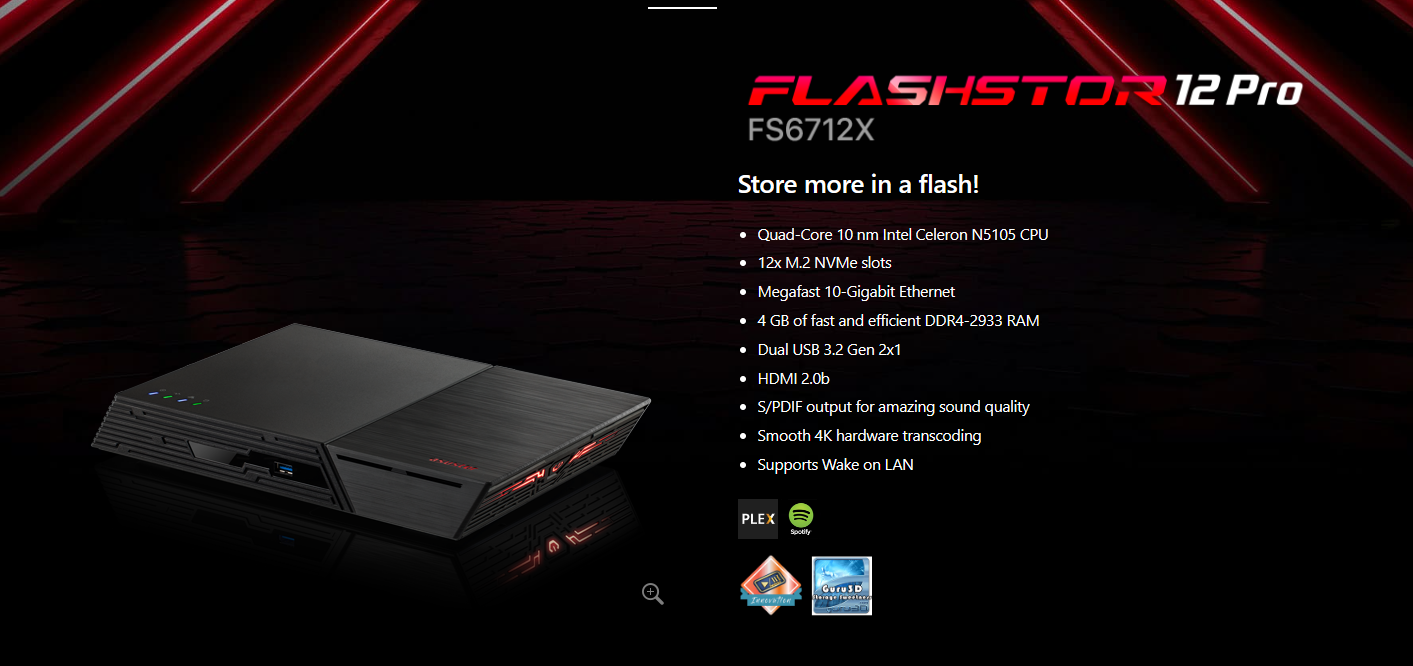

Product Name: Itw | Asustor Flashstor 12 Pro FS6712X 12-Bays Diskless Network Attached Storage (NAS)
Specification
*** Hardware Specs ***
CPU
* CPU Model: Intel Celeron N5105
* CPU Architecture: x64 64-bit
* CPU Frequency: Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory
* Memory: 4GB SO-DIMM DDR4
* Memory Module Pre-installed: 4GB (1x 4GB)
* Total Memory Slots: 2
* Memory Expandable up to
- 16GB (2x 8GB)
> Support mixed capacity
* Flash Memory: 8GB eMMC
Storage
* M.2 Drive Slots: 12
* Compatible Drive Type: M.2 2280 NVMe
* Maximum Drive Bays with Expansion Unit: 20
External Ports
* Expansion: 2x USB 3.2 Gen 2x1; 2 x USB 2.0
* Network: 1 x 10 Gigabit Ethernet (10G/5G/2.5G/1G/100M/10M)
* Multimedia Output: 1x HDMI 2.0b, 1x S/PDIF
Others

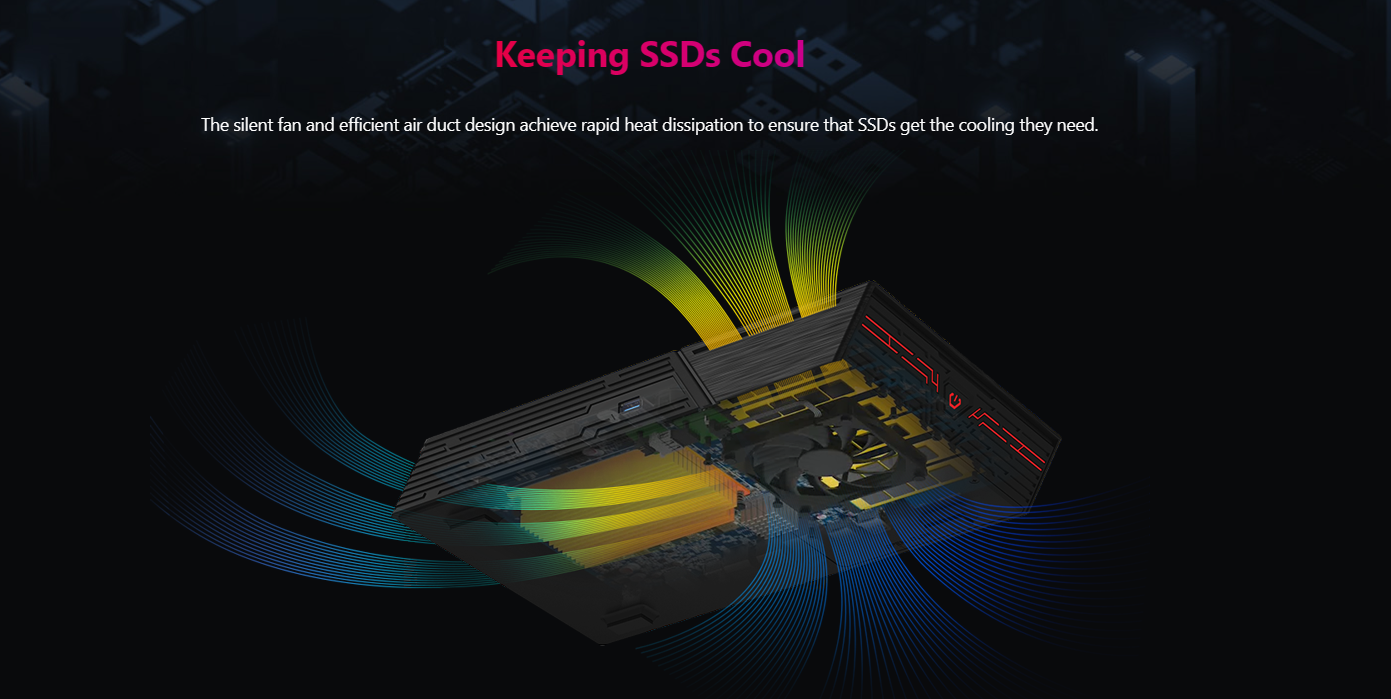

* System Fan: 1 x 80mm
* Power Supply Unit / Adapter: 90W x1
* Input Power Voltage: 100V to 240V AC
* Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Operation
* Power Consumption: 26 W

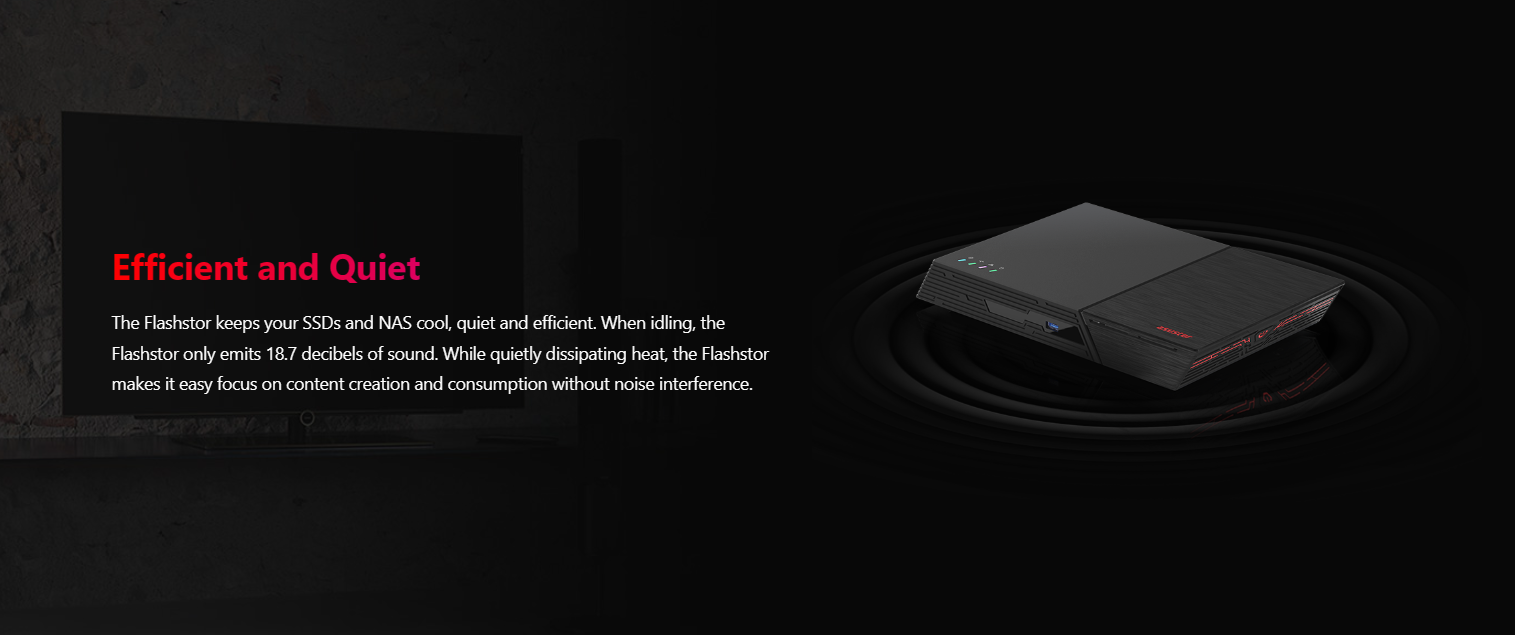

* Noise Level: 18.7dB
* Operation Temperature: 0°C~40°C (32°F~104°F)
* Humidity: 5% to 95% RH
Size and Weight
* Size: 48.3 (H) x 308.26 (W) x 193 (D) mm
* Weight: 1.37 kg / 3 lb
*** Software & Features ***
General
* Supported OS
- Windows 7, 8, 10, 11, Server 2008, Server 2012, Server 2016, Server 2019, - Server 2022
- macOS
- UNIX, Linux, and BSD
* Supported Browsers
- Firefox
- Chrome
- Safari
- Microsoft Edge
Network
* Network Protocols: CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
* Connection and transmission
- TCP/IP (IPv4 & IPv6)
- Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover
- Jumbo Frame (MTU)
- VLAN
- EZ Connect
- Wireless Network
- DDNS and EZ-Router
- Supports Wake-on-LAN (WOL)
File Management & Sharing
* File System
- Internal Drive: EXT4 ,Btrfs
- External Drive: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs
* File Explorer
- Web-based File Management
- ISO File Mounting
- Share Links
- Task Monitor
- Browse Files on Local PC
- Thumbnail Previews
- Data Access via External Optical Drive
- Supports video playback
* Network Recycle Bin
- Share folder-based
- Maintains original directory structure and file permission
- On-click restore
- Supports scheduled emptying
- Filtering rules
- File size
- File extension
- Deletion Settings
- File size
- File date
Storage management
* M.2 Volume
- Support Multiple Volumes with Spare Drives
- M.2 Volume: Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
- Support for RAID Level Migration
- Support for RAID Capacity Expansion

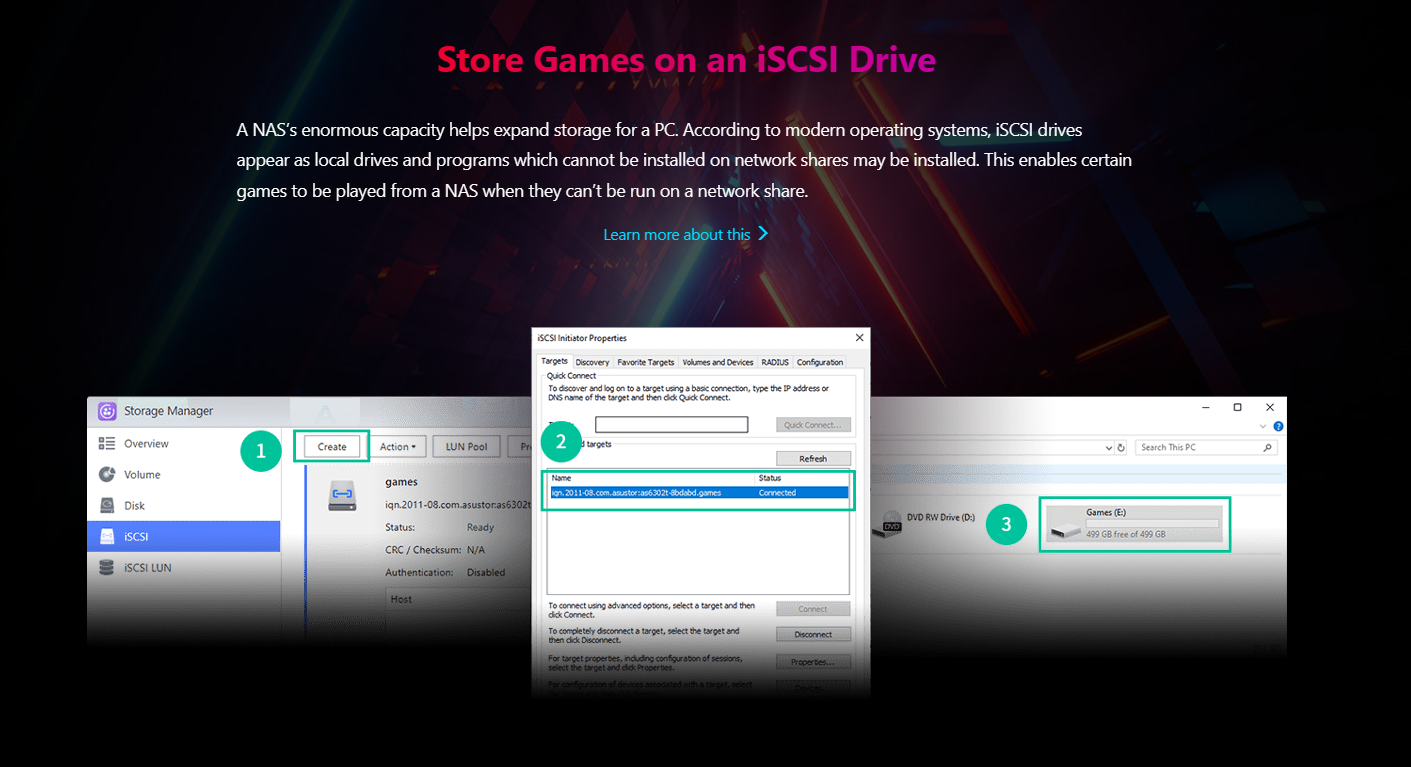

* iSCSI/IP-SAN
- Maximum Targets: 256
- Maximum LUNs: 256
- Maximum Snapshot Versions of a Single LUN: 256
- Target Masking
- LUN Mapping
- ISO File Mounting
- Supports MPIO
- Persistent (SCSI-3) Reservations
* Disk Management
- Scheduled Bad Block Scans
- Scheduled S.M.A.R.T Scans
Access & Security
* Access Control
- Maximum Number of Users: 4096
- Maximum Number of Groups: 512
- Maximum Number of Shared Folders: 512
- Maximum Number of Concurrent Connections: 512
- Supports Windows Active Directory
- Supports Windows Active Directory / LDAP
* ACL
- Provides both Windows ACL and Linux ACL permission configuration methods
- Can enable Windows ACL for specific shared folders
- Comprehensive support for Windows’ 13 types of advanced permission settings
- Can view Windows ACL permission settings from within ADM
- Supports local users and groups
- Exclusive permission reset function allows users to quickly restore default permissions
* System Administration
- Log Type: System Log, Connection Log, File Access Log
- Real-time Online User Monitor
- Real-time System Monitor
- User Quota
- Virtual Drive (ISO Mounting, Maximum 16)
- UPS Support

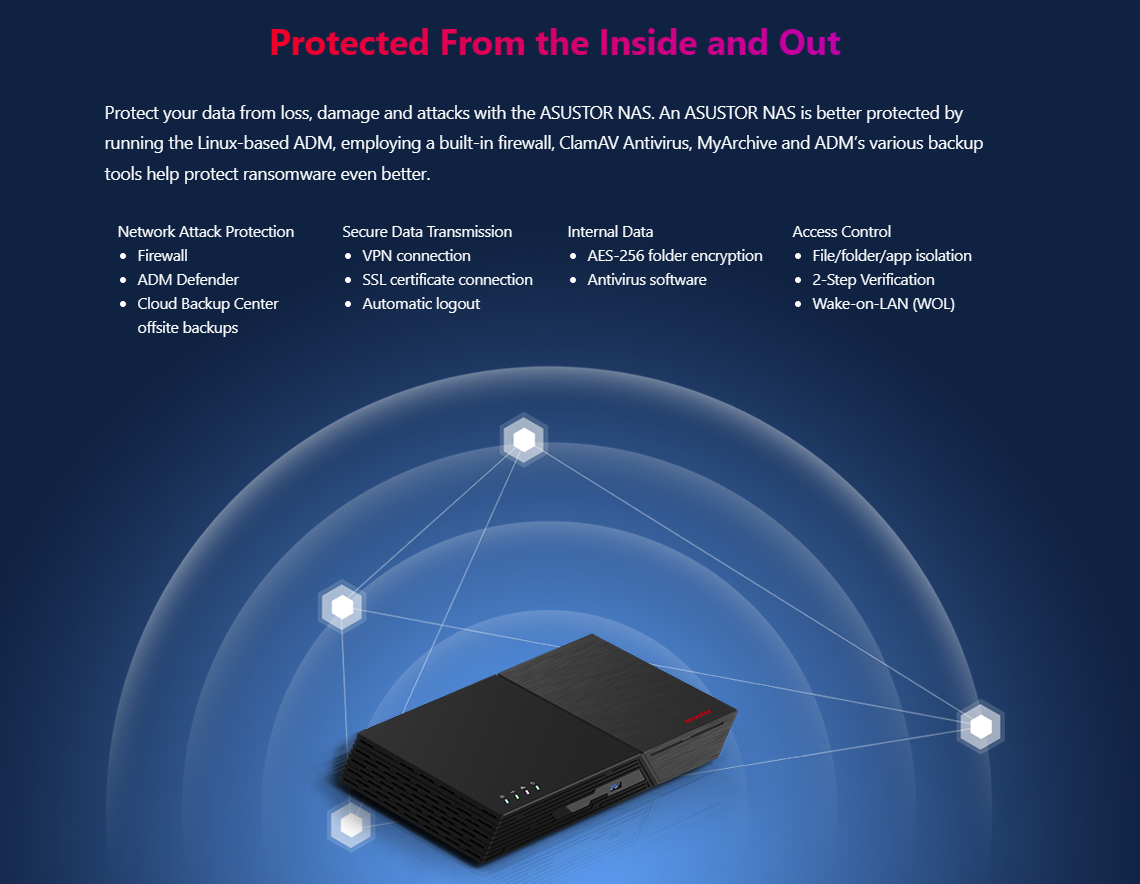

* Security
- AES 256-Bit Encryption
- Firewall: Prevent Unauthorized Access
- Alert Notifications: E-mail, SMS
- Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
- Built-in Hardware Encryption Engine: AS10/11/31/32/33/40/52/53/54/6/61/62/63/64/65/66/67/70/71/FS67 Series
- RAID Scrubbing: detects the integrity and consistency of RAID 5 and RAID 6 drive data.
* Network Defender
- Auto black list
- Trusted list
- Black/White list
> Supports IP/IP range/geolocation
