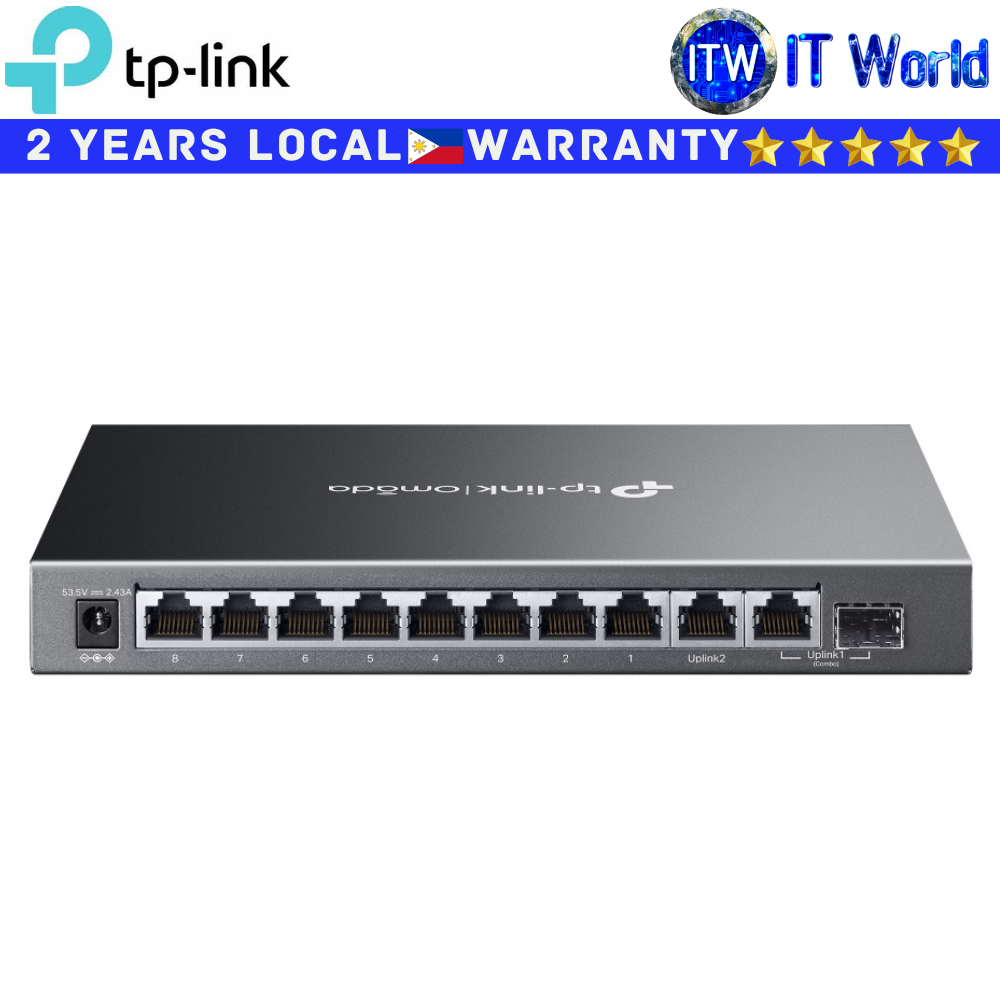

Product Name: Itw | TP-Link Switch ES210GMP Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+
Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+
> 8× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
> 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
> 123W Power Budget, with up to 30W for each PoE port*
> Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
> Centralized Cloud Management via the web or the Omada app†
> Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
> Automatic Loop Prevention, VLAN, and IGMP Snooping
> Fanless design for silent operation
> Durable metal casing and desktop/wall mounting design
Specification
Hardware
* Interface
> 8× 10/100/1000Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)
> 1× 10/100/1000Mbps RJ45 Port
> 1× Gigabit SFP/RJ45 Combo Port
> Auto-Negotiation/Auto MDI/MDIX
* Fan Quantity: Fanless
* Installation
> Desktop
> Wall Mount
* Physical Security Lock: √
* Power Supply: DC Power Adapter (Output: 53.5 VDC/ 2.43 A)
* PoE Ports (RJ45)
> Standard: 802.3af PoE and 802.3at PoE+ compliant
> PoE Ports: 8ports
> PoE Budget: 123W available for all PoE+ ports, 30W max per port
> PoE Auto Recovery‡
> Up to 250m PoE transmission distance**
* Dimensions (WxDxH): 8.2×4.9×1.0in (209×126×26mm)
Performance
* Switching Capacity: 20Gbps
* Packet Forwarding Rate: 14.88Mpps
* MAC Address Table: 8K
* Packet Buffer Memory: 4Mbit
* Jumbo Frame: 15KB
Software
* Quality of Service
> Port-based/802.1p/DSCP QoS
> 8 Priority Queues
> Priority Schedule Mode
- WRR (Weighted Round Robin)
> Queue Weight Config
> Bandwidth Control
- Port-Based Rating Limit
> Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control△
* L2 Features
> Static Link Aggregation
> Loop Prevention / Loopback Detection
> Flow Control
- 802.3x Flow Control
> Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
> Port Statistics
- Port Mirror Status
- Traffic Statistics
> 802.1ab LLDP
* L2 Multicast
> IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
* VLAN
> MTU VLAN
> Port-Based VLAN
> 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
* Transmission Method: Store-And-Forward
Management
* Omada App: Yes,Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
* Centralized Management
> Omada Cloud-Based Controller
> Omada Hardware Controller
> Omada Software Controller
* Cloud Access: Yes,Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
* Zero-Touch Provisioning: Yes,Requires the use of Omada Cloud-Based Controller
* Management Features
> Web-based GUI
> DHCP Client
> Cable Diagnostics
> Automatic Device Discovery†
> Batch Configuration†
> Batch Firmware Upgrading†
> Unified Configuration†
Others
* Certification: FCC, CE, RoHS
* Package Contents
> ES210GMP
> Power Adapter
> Installation Guide
> Rubber Feet
* Environment
> Operating Temperature: 0℃~40℃ (32℉~104℉)
> Storage Temperature: -40℃~70℃ (-40℉~158℉)
> Operating Humidity: 10%~90% non-condensing
> Storage Humidity: 5%~90% non-condensing
