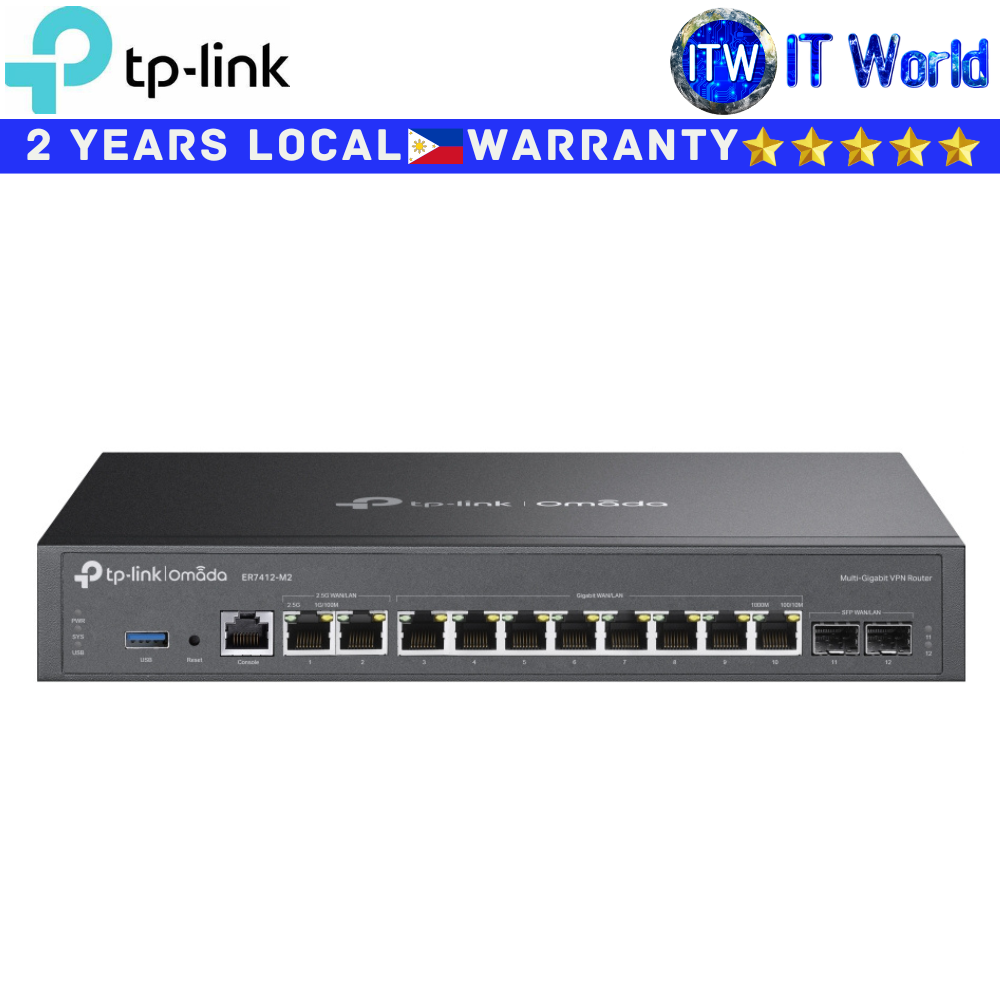

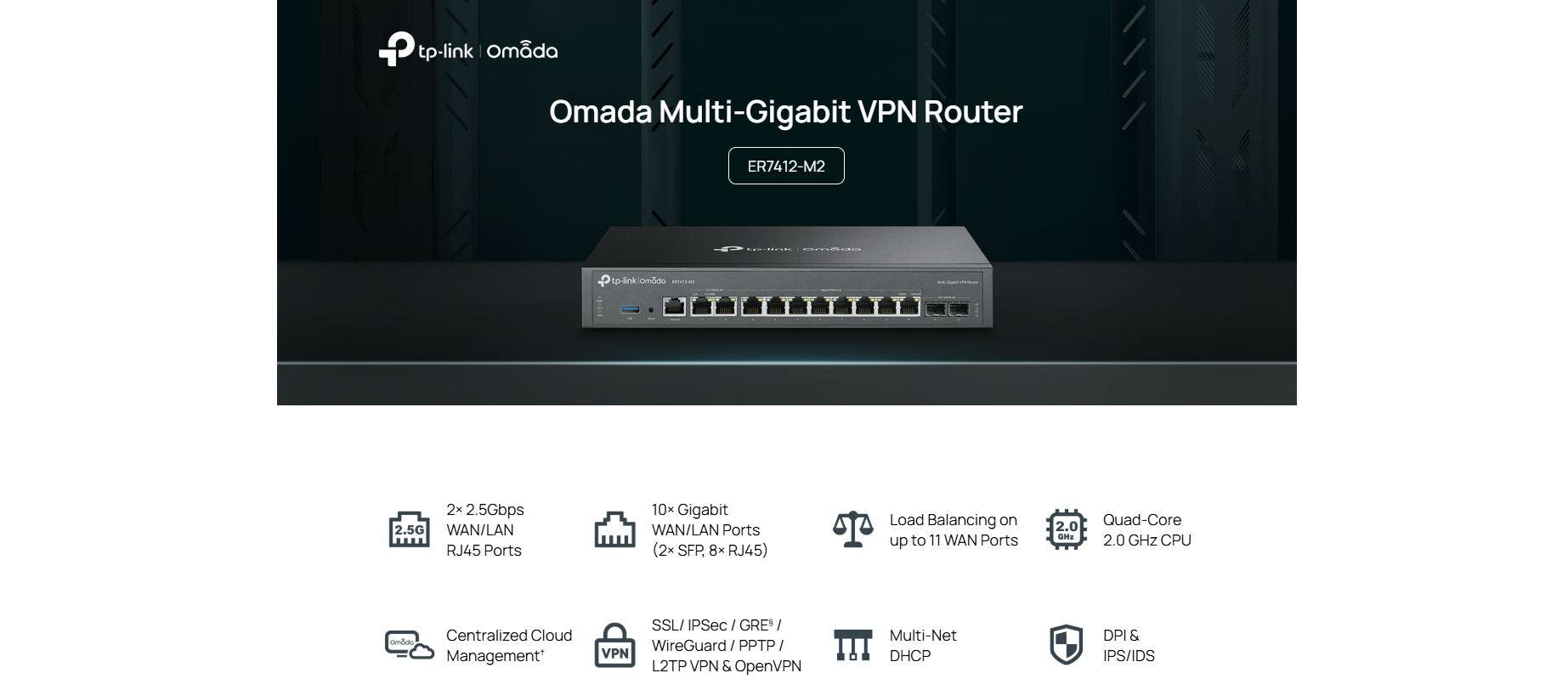

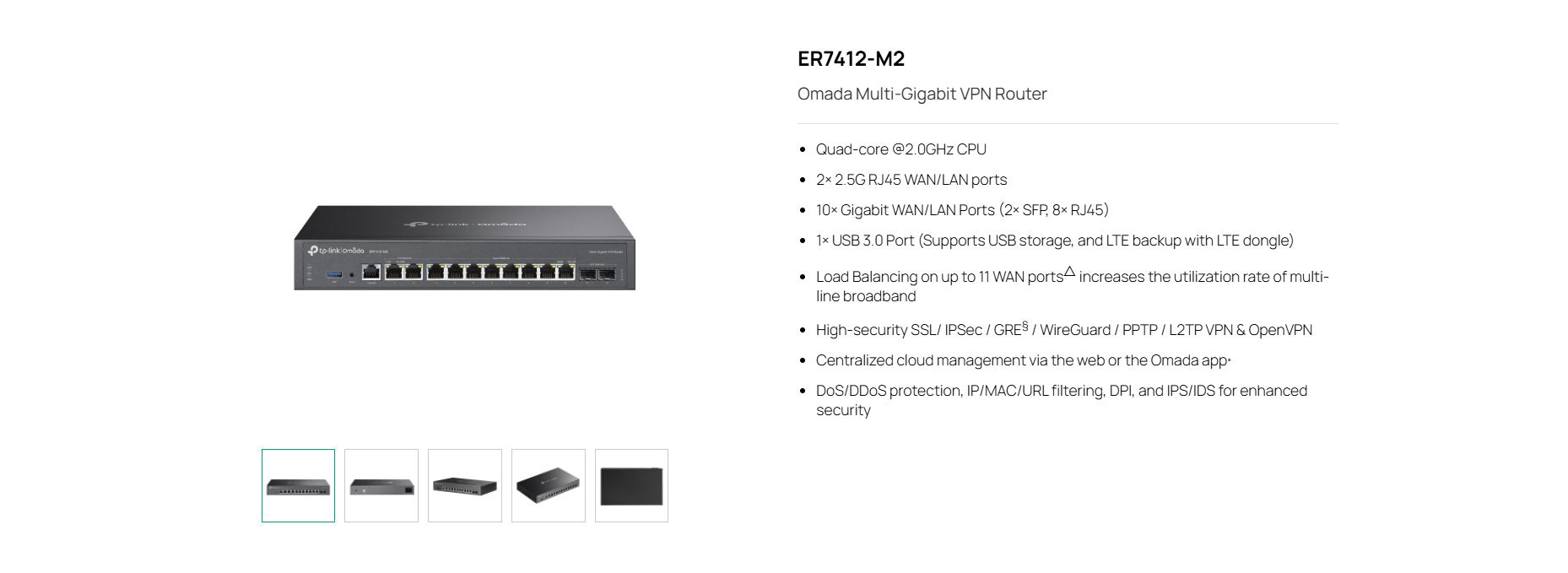

Product Name: Itw | TP-Link Router ER7412-M2 Omada Multi-Gigabit VPN Router Centralized Cloud Management
Specification

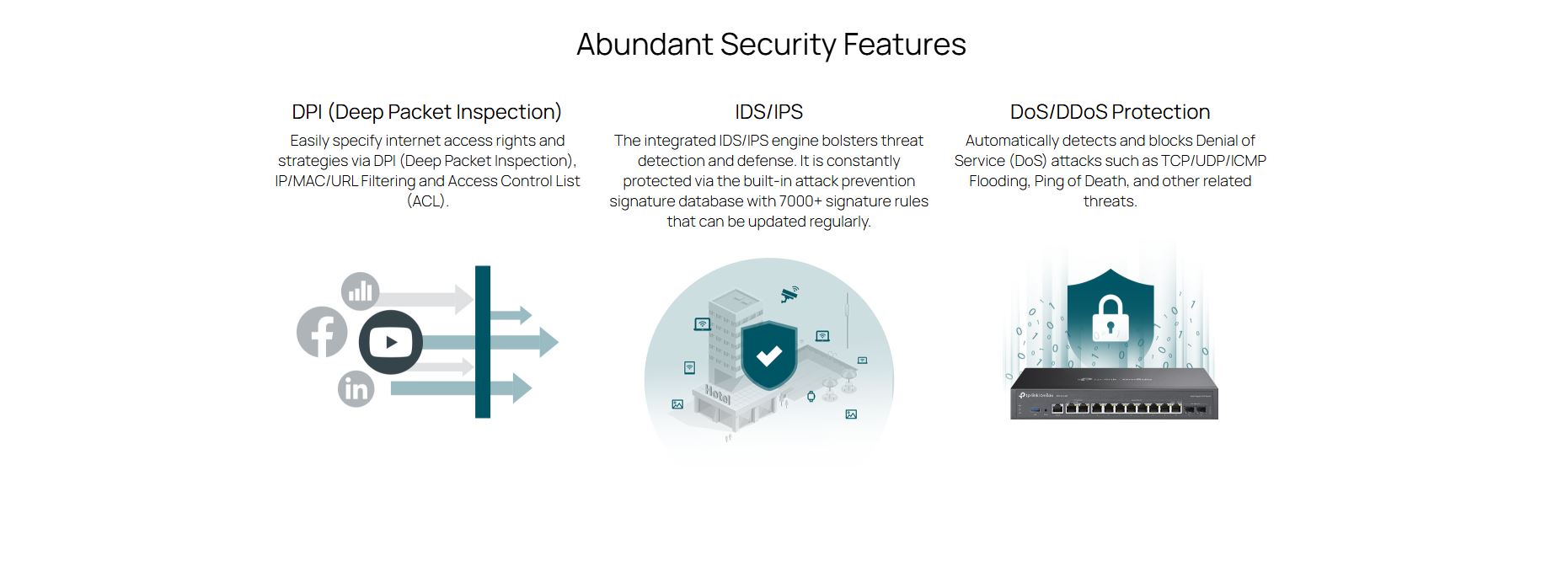

Security
* Access Control
> Source/Destination IP-Based ACL
> Stateful ACL
> IPv4/IPv6 ACL
> Location Based ACL
* Filtering
> WEB Group Filtering§
> URL Filtering
> Web Security§
* ARP Inspection
> Sending GARP Packets§
> ARP Scanning§
> IP-MAC Binding§
* Attack Defense
> TCP/UDP/ICMP Flood Defense
> Block TCP Scan (Stealth FIN/Xmas/Null)
> Block Ping from WAN
Hardware
* Standards and Protocols
> IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q
> TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

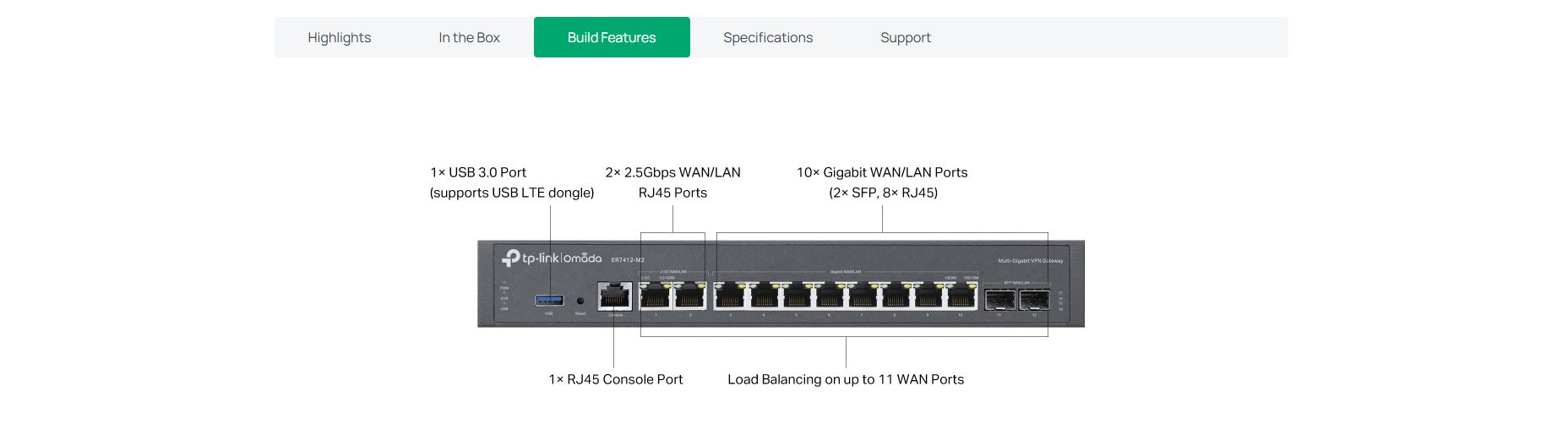

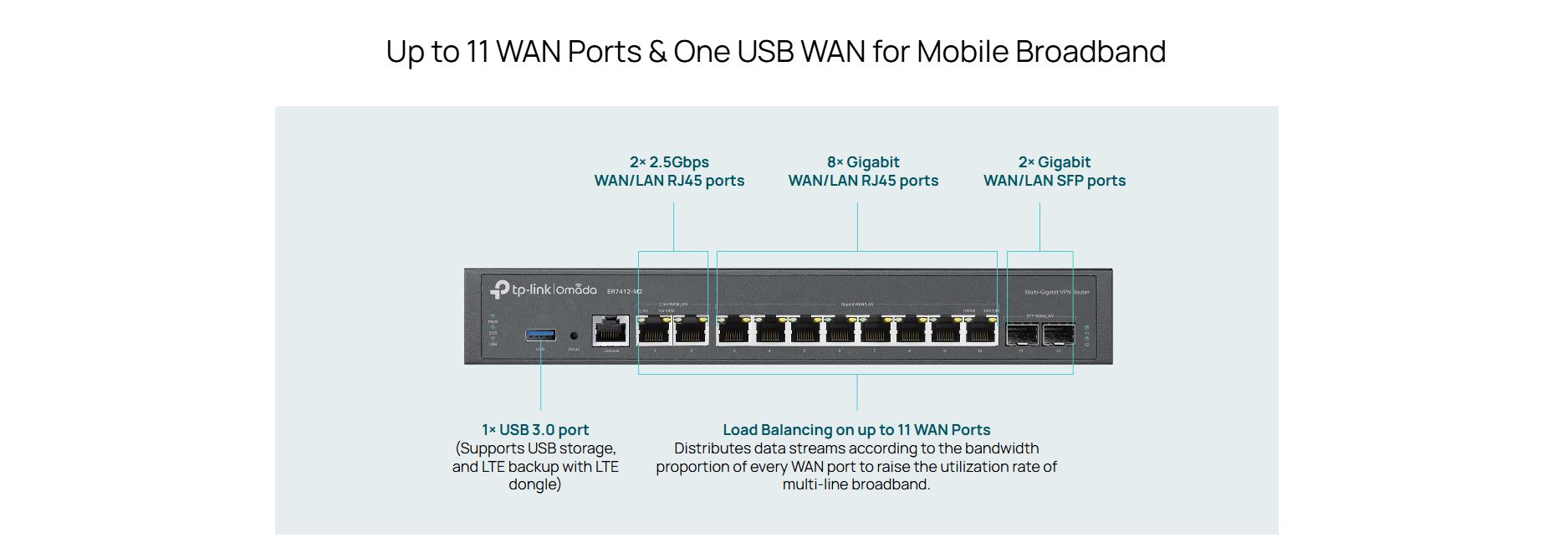

* Interface
> 1× 2.5G RJ45 WAN/LAN Port
> 1× 2.5G RJ45 WAN/LAN Port
> 2× Gigabit SFP WAN/LAN Ports
> 8× Gigabit RJ45 WAN/LAN Ports
> 1× RJ45 Console Port
> 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
* Network Media
> 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m)
> 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m)
> 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
> 2500BASE-T: UTP category 5e, 6 cable (Max 100m)
* Button: Reset Button
* Power Supply: 100–240 VAC, 50/60Hz
* Flash: 128MB NAND
* DRAM: 1GB DDR4

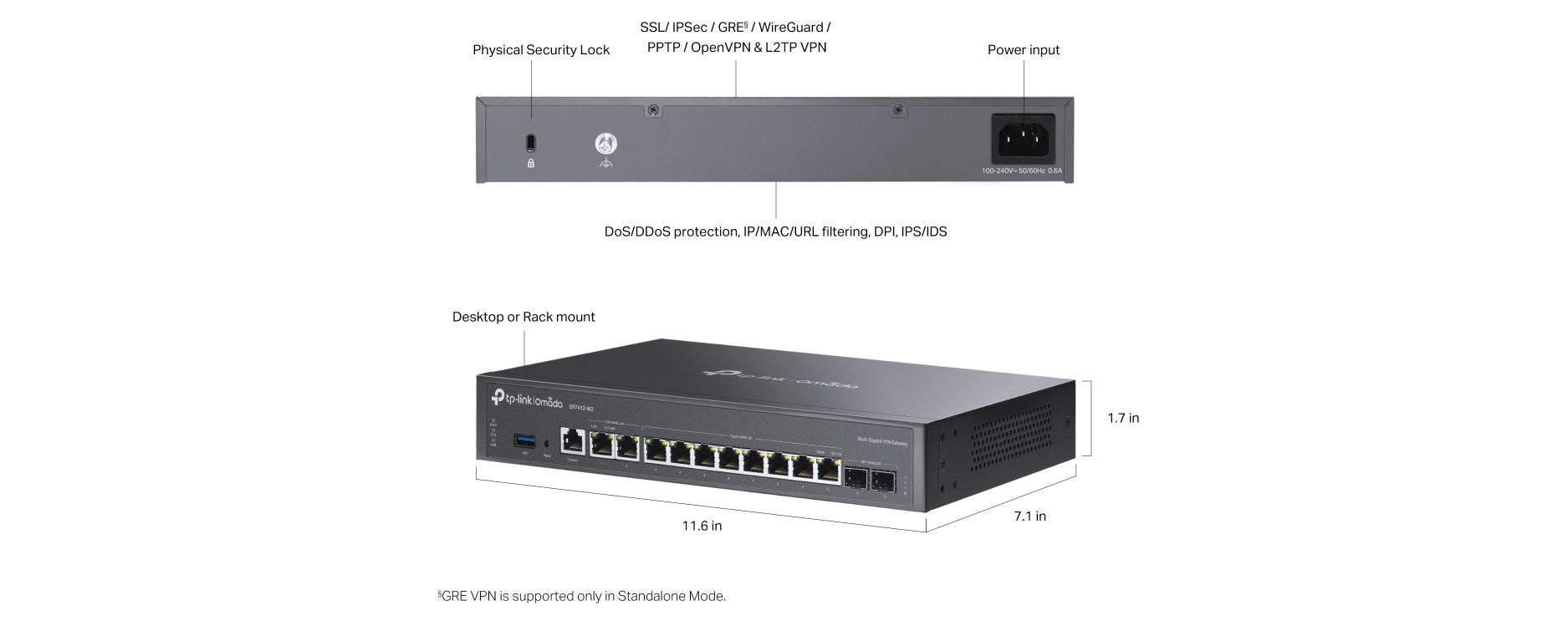

* Dimensions (W x D x H): 11.6×7.1×1.7in (294×180×44mm)
* Protection: 4kV surge protection
* Enclosure: Steel
* Mounting
> Desktop
> Rackmountable
* Max Power Consumption: 18.5W (With USB 3.0 connected)
Performance
* DPI Throughput: 2.2Gbps
* GRE
> Unencrypted: 1153.0Mbps
> Encrypted: 559.2Mbps
* WireGuard VPN: 771.6Mbps
* Concurrent Session: 1,000,000
* New Sessions/Second: 7,000
* NAT (Static IP): 2345.71Mbps/2351.22Mbps
* NAT(DHCP): 2353.41Mbps/2353.40Mbps
* NAT(PPPoE): 2336.52Mbps/2336.08Mbps
* NAT (L2TP): 1937.53Mbps/1761.82Mbps
* NAT (PPTP): 1757.54Mbps/2011.33Mbps
* IPsec VPN Throughput
> ESP-SHA1-AES256: 1125.60Mbps
> ESP-SHA256-AES256: 1133.1Mbps
> ESP-SHA384-AES256: 1126.6Mbps
> ESP-SHA512-AES256: 1132.8Mbps
* OpenVPN UDP: 266.2Mbps
* L2TP VPN Throughput
> Unencrypted: 2724.5Mbps
> Encrypted: 1018.4Mbps
* PPTP VPN Throughput
> Unencrypted: 3035Mbps
> Encrypted: 534.6Mbps
* SSL VPN Throughput: 263.1Mbps
* 66 Byte Packet forwarding rate: 1833Mbps/1835Mbps
* 1,518 Byte Packet forwarding rate: 2461Mbps/2461Mbps
Basic Functions
* WAN Connection Type
> Static IP/Dynamic IP
> PPPoE (supports MRU Configuration)
> PPTP
> L2TP
> Mobile Broadband: 4G/3G modem for backup via USB port
* MAC Clone Modify WAN/LAN MAC Address†
* DHCP
> DHCP Server
> DHCPv6 PD Server (only in Standalone Mode)
> DHCP Options Customization
> DHCP Address Reservation
> Multi-IP Interfaces
> Multi-Net DHCP
* IPv6: StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
* VLAN: 802.1Q VLAN
* IPTV: IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Advanced Functions
* Advanced Routing
> Static Routing
> Policy Routing
> RIP (available in Standalone Mode)
> OSPF (available in Standalone Mode)
* Bandwidth Control: IP/Port-based Bandwidth Control
* Load Balance
> Intelligent Load Balance
> Application Optimized Routing
> Link Backup (Timing§, Failover)
> Online Detection
* NAT
> One-to-One NAT§
> Multi-Net NAT
> Virtual Server
> Port Triggering§
> NAT-DMZ
> FTP/H.323/SIP/IPSec/PPTP ALG
> UPnP
* Session Limit: IP-based Session Limit

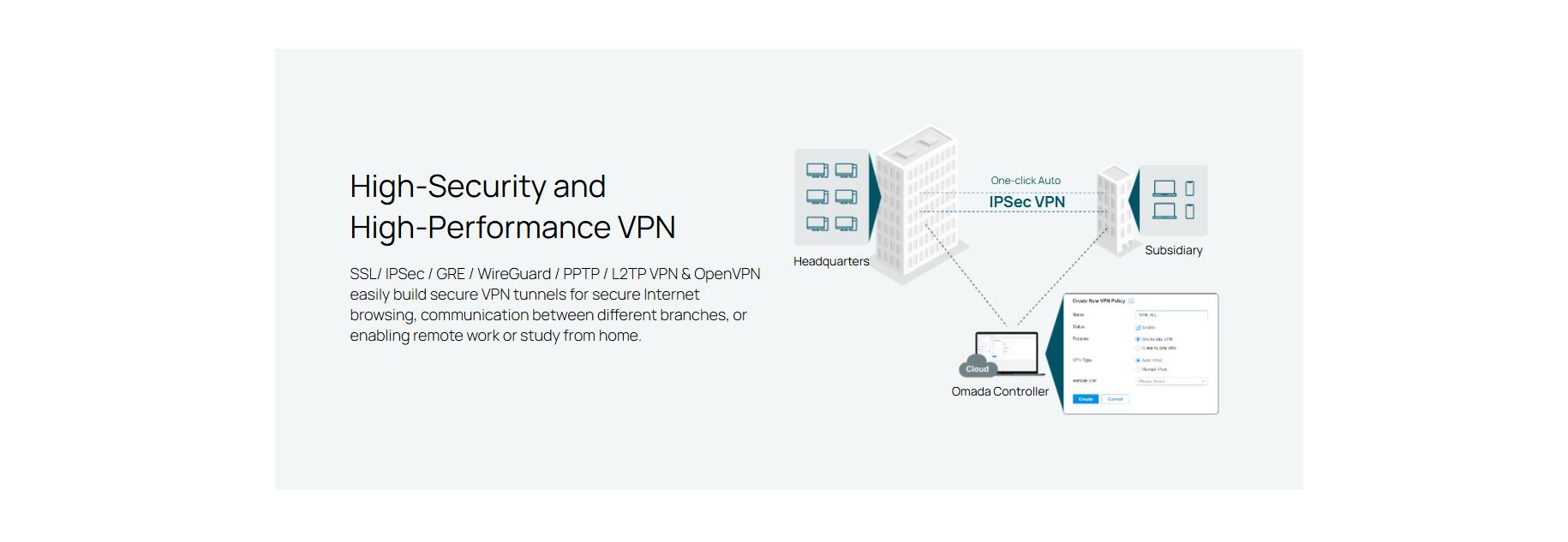

VPN
* GRE: Only in Standalone Mode
* SSL VPN: 80 Tunnels
* IPsec VPN
> 150 IPSec VPN Tunnels
> LAN-to-LAN, Client-to-LAN
> Main, Aggressive Negotiation Mode
> DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
> IPsec Failover
> IKE v1/v2
> MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
> NAT Traversal (NAT-T)
> Dead Peer Detection (DPD)
> Perfect Forward Secrecy (PFS)
* PPTP VPN
> PPTP VPN Server
> PPTP VPN Client (15)**
> 150 Tunnels
> PPTP with MPPE Encryption
* L2TP VPN
> L2TP VPN Server
> L2TP VPN Client (15)**
> 150 Tunnels
> L2TP over IPSec
* OpenVPN
> OpenVPN Server
> OpenVPN Client (11)**
> 121 OpenVPN Tunnels
> "Certificate + Account" Mode
> Full Mode
* WireGuard VPN: 20 Tunnels
Authentication
* Web Authentication
> No Authentication
> Simple Password*
> Hotspot (Local User/Voucher*/SMS*/Radius*)
> External Radius Server
> External Portal Server*
> LDAP
