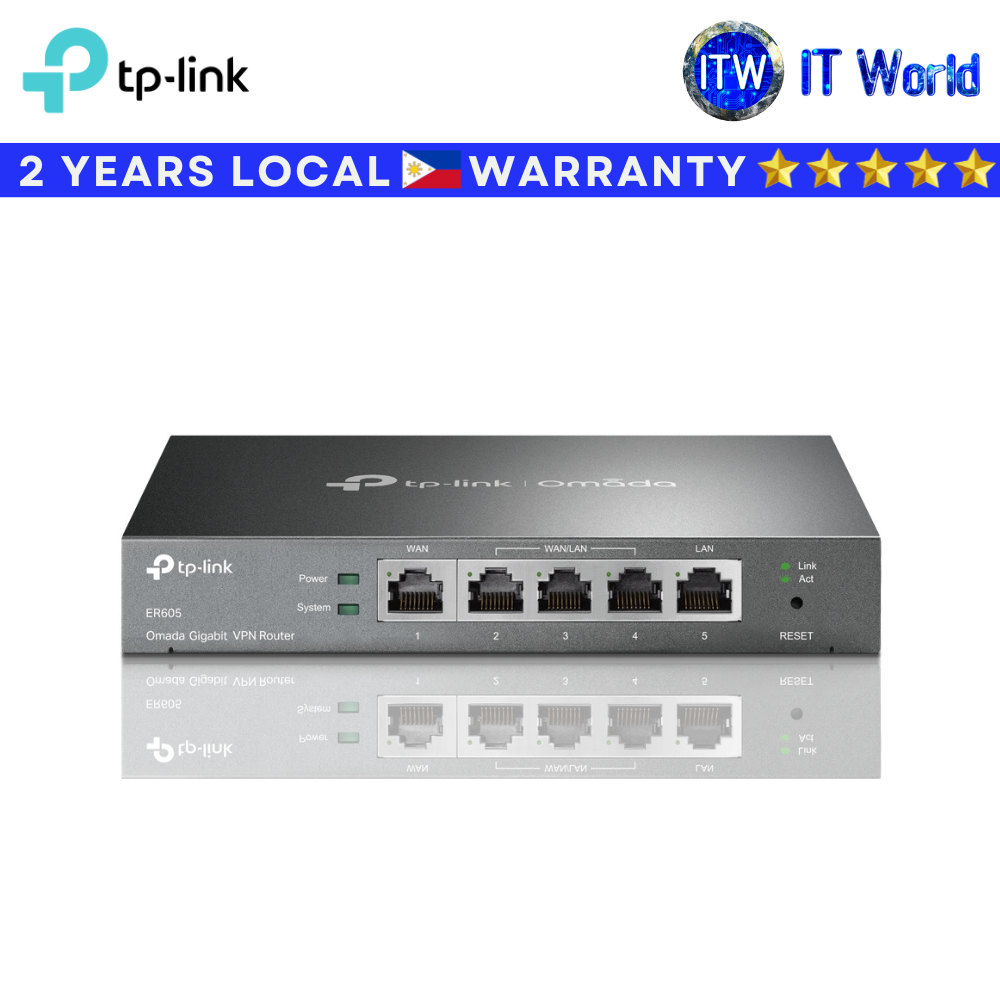

Product Name: Itw | TP-Link Omada ER605 Gigabit Highly Secure VPN Router
*ER605
Omada Gigabit VPN Router

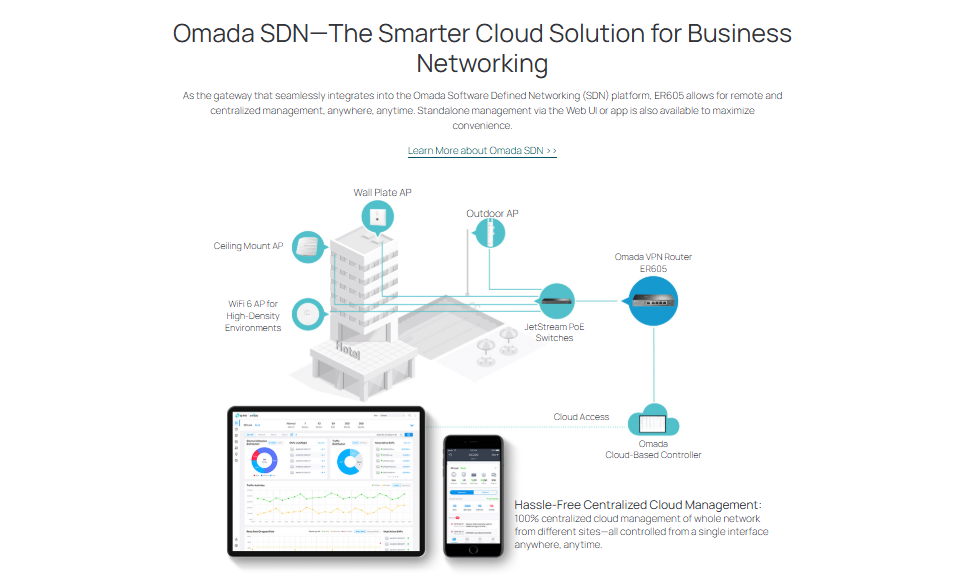

- Integrated into Omada SDN: Zero-Touch Provisioning***, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Five Gigabit Ports: High-speed wired connectivity.

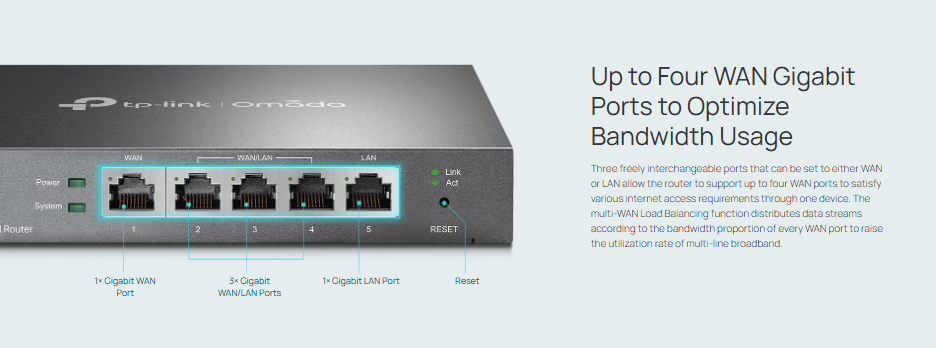

- Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband.

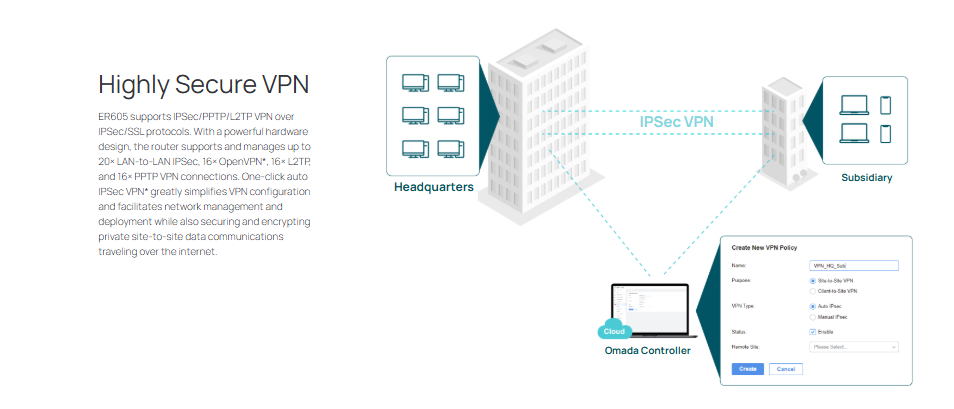

- Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.

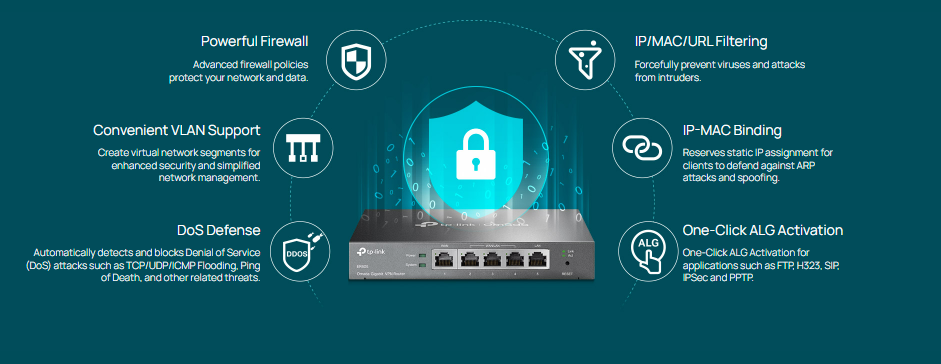

- Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.
Specification
*SECURITY
Access Control: Source/Destination IP Based Access Control
Filtering:
• WEB Group Filtering§
• URL Filtering
• Web Security§
ARP Inspection:
• Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding
Attack Defense:
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
*HARDWARE FEATURES
Fan Quantity: Fanless
Button Reset: Button
Power Supply: External 12V/1A DC Adapter
PoE Budget -
Flash: 128 MB NAND
DRAM: 256 MB DDR
LED: PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
Dimensions ( W x D x H ): 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
Protection: 4 kV surge protection
Enclosure: Steel
Mounting: Desktop/Wall-mount
Max Power Consumption: 7.94 W
*PERFORMANCE
DPI Throughput: TCP: 905 Mbps;
UDP: 788 Mbps
WireGuard VPN Throughput
• 123.4 Mbps
Concurrent Session: 150,000
New Sessions /Second: 2,600
NAT (Static IP)
• Upload: 945.77 Mbps
• Download: 938.79 Mbps
• Bi-Directional: 1808.29 Mbps
NAT(DHCP)
• Upload: 945.54 Mbps
• Download: 945.66 Mbps
• Bi-Directional: 1802.77 Mbps
NAT(PPPoE)
• Upload: 939.71Mbps
• Download: 939.43 Mbps
• Bi-Directional: 1788.54 Mbps
NAT (L2TP)
• Upload: 815.55 Mbps
• Download: 835.59 Mbps
• Bi-Directional: 903.13 Mbps
NAT (PPTP)
• Upload: 813.23 Mbps
• Download: 850.91 Mbps
• Bi-Directional: 894.41 Mbps
IPsec VPN Throughput
• ESP-SHA1-AES256: 259.78 Mbps
• ESP-SHA256-AES256: 260.81 Mbps
• ESP-SHA384-AES256: 37.65 Mbps
• ESP-SHA512-AES256: 38.32 Mbps
OpenVPN • 21.70 Mbps
L2TP VPN Throughput
• Unencrypted: 640.99 Mbps
• Encrypted: 77.31 Mbps
PPTP VPN Throughput
• Unencrypted: 759.55 Mbps
• Encrypted: 75.80 Mbps
SSL VPN Throughput -
66 Byte Packet forwarding rate
• Upload/Download: 954.50 Mbps
• Bi-Directional: 1130.00 Mbps
1,518 Byte Packet forwarding rate
• Upload/Download: 997.50 Mbps
• Bi-Directional: 1965.00 Mbps
*ADVANCED FUNCTIONS
Advanced Routing
• Static Routing
• Policy Routing
• RIP§
• OSPF§
Bandwidth Control: IP-based Bandwidth Control
Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection
NAT
• One-to-One NAT
• Multi-Net NAT
• Port Forwarding
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit: IP-based Session Limit
*VPN
IPsec VPN
• 20 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256, SHA2-384 and SHA2-512 • Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1 Authentication Algorithm, SHA2 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN
• PPTP VPN Server
• PPTP VPN Client (10) **
• 16 Tunnels
• PPTP with MPPE Encryption
L2TP VPN
• L2TP VPN Server
• L2TP VPN Client (10) **
• 16 Tunnels
• L2TP over IPSec
OpenVPN
• OpenVPN Server
• OpenVPN Client (10)§
• 16 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
WireGuard VPN
• 20 Tunnels
*AUTHENTICATION
Web Authentication
• No Authentication
• Simple Password*
• Hotspot（Local User / Voucher*/ SMS*/ Radius*）
• External Radius Sever
• External Portal Sever*
• LDAP§
