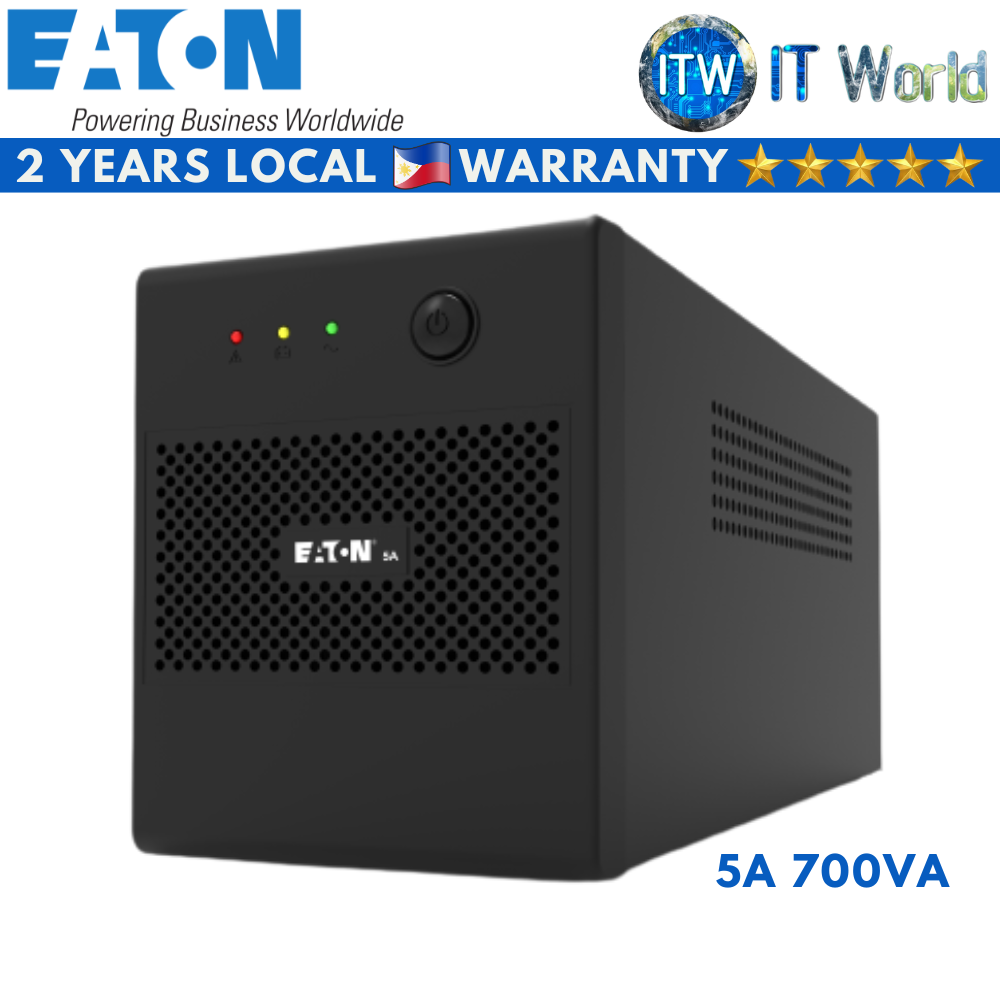

Eaton 5A 700I-NEMA 700VA 360W Line Interactive UPS

Product Name: ITW | Eaton 5V 650VA/5A 700I-NEMA 700VA 360W Line Interactive UPS

■ ■ Eaton 5V 650VA Line Interactive UPS ■ ■

Specification

Technical

✎ Rating (VA/W): 650VA/360W

✎ Format: Tower

Electrical Characteristics

✎ Input Voltage Range: 170V - 280V

✎ Input Connection Type: Fixed 5-15P 1.2m

✎ Surge Protection: NA

✎ Generator Compatible: NA

Output

✎ Output Voltage: 230V

✎ Output Voltage reg. (Battery mode): ±10%

✎ Battery wave form: Stepped sine wave

✎ Protection: PCBA current sensor (F/W protection)

✎ Output back up socket: (2) Universal outlets / (4) Thailand hybrid outlets

✎ Transfer time: 2-6ms typical, 10ms Max

Battery

✎ Type: 1 x 12V/7Ah

✎ Typical backup time (100W): 16min

✎ Recharge time: 6 hours to 9%

Interface

✎ On / Off switch: Yes

✎ Indicator: (1) LED

✎ Communication-USB: No

✎ Communication-RS232: No

✎ RJ11 protection: No

Physical

✎ Dimension D x W x H (mm): 278*100*143

✎ Weight (kg): 4.4

✎ Package: Color Box

Customer service and support

✎ Warranty: 1 year

■ ■ Eaton 5A 700I-NEMA 700VA 360W Line Interactive UPS ■ ■

✎ Rating (VA / W): 700VA/360W

✎ Form factor: Tower

✎ Input Voltage Range: 140 – 300 VAC

✎ Frequency: 50 / 60 Hz

✎ Output Voltage: 230 VAC

✎ Battery Wave Form: Stepped sine wave

✎ Output backup socket

■ DIN model: (2) Schuko outlets

■ NEMA model: (4) NEMA universal outlets

■ UNI model: (2) Universal outlets

✎ Surge protection: Yes

✎ Generator Compatible: Yes

✎ Mute by Power Key: Yes

✎ Circuit breaker: Yes
