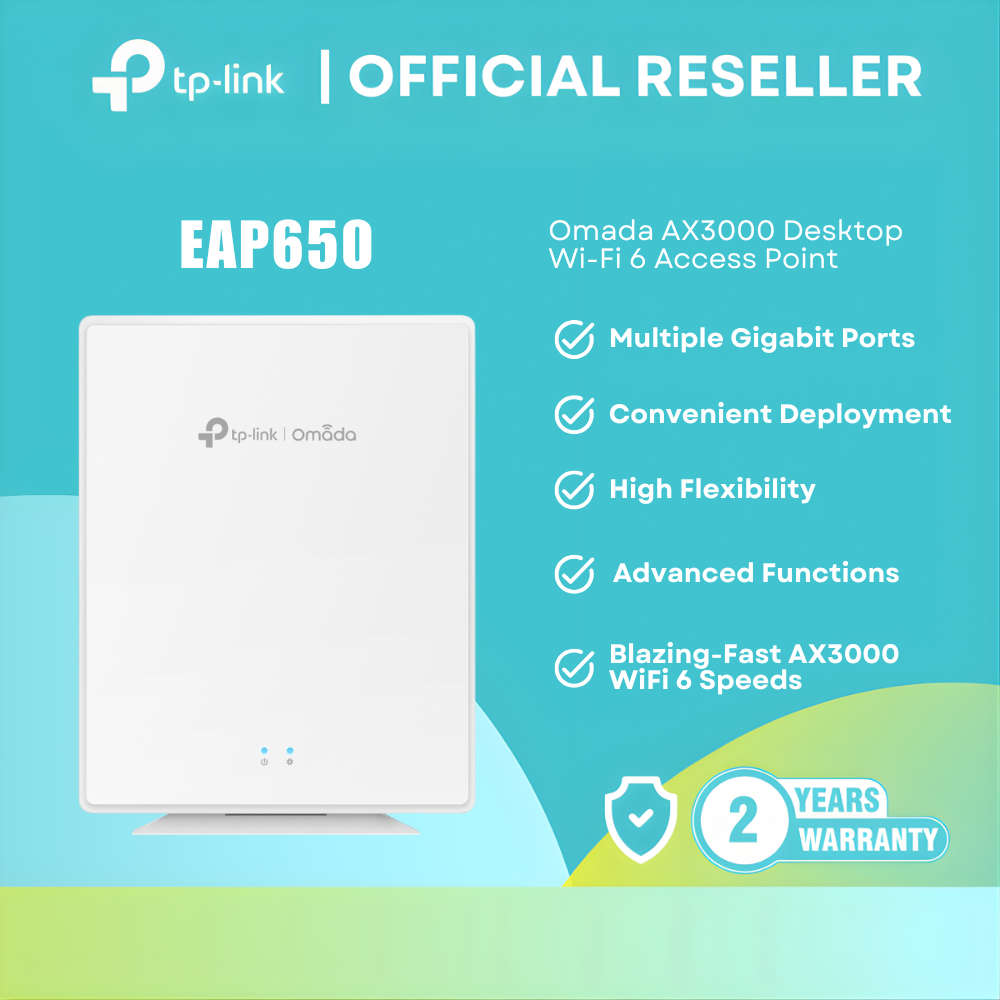

TP-Link Omada EAP650-Desktop
Key Specifications & Features

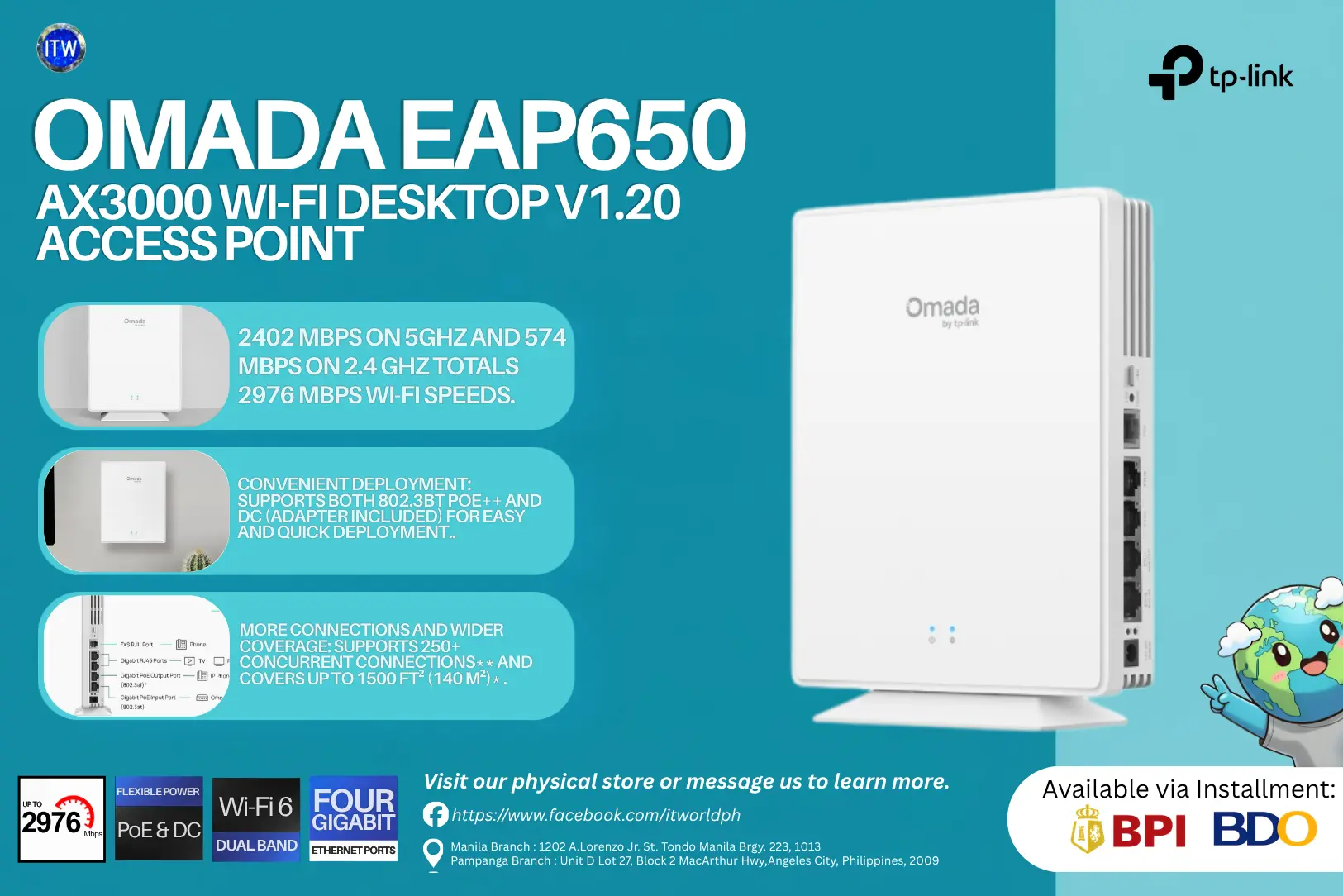

The TP-Link Omada EAP650-Desktop is a versatile AX3000 Wi-Fi 6 access point designed for flexible placement on a desk or wall without complex installation. It provides high-speed dual-band wireless connectivity, specifically 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, and is part of the Omada Software Defined Networking (SDN) ecosystem for centralized management.
Wireless Performance: Delivers AX3000 speeds with HE160 (160 MHz bandwidth) for faster streaming and downloads.
Wired Connectivity: Equipped with 4x Gigabit Ethernet ports, including one that supports PoE Out (802.3af) when the unit itself is powered by 802.3at/bt PoE.
Flexible Powering: Can be powered via 802.3at/bt PoE or a standard 12V DC adapter (included).
VoIP Ready: Includes an FXS port (RJ11) for connecting a standard analog telephone to a VoIP system.
Seamless Management: Supports Seamless Roaming and Omada Mesh for extended coverage without manual handovers between access points.
Physical Design: A compact, slimline build that supports both standalone desktop use and wall mounting with the included kit.
Design features
Physical & Mounting Design
- Dual-Purpose Form Factor: It supports both standalone desktop placement and wall mounting. A dedicated wall mount bracket is included, which clips onto the back, and a desktop stand is provided for tabletop use.
- Compact Build: It has a slimline profile with dimensions of 175 × 140 × 33 mm and a weight of 452g (excluding the mounting base).
- Security & Safety: Features a physical security lock hole (Kensington Lock) for securing the device to a desk or wall in public or shared spaces.
Bootstrap-Based Templates
Design Odoo templates easily with clean HTML and Bootstrap CSS. These templates offer a responsive, mobile-first design, making them simple to customize and perfect for any web project, from corporate sites to personal blogs.
The device serves as a mini-switch, offering more connectivity than standard ceiling-mount access points:
- 4× Gigabit Ethernet Ports: Includes one port for PoE-In (to power the unit) and one for PoE-Out (802.3af) to power another device like an IP phone.
- FXS Port (RJ11): A specialized port for connecting a standard analog telephone to a VoIP system, ideal for hotel rooms or home offices.
- Power Flexibility: Can be powered via 802.3at/bt PoE or a standard 12V/1.5A DC adapter (included).
- Controls: Includes dedicated Reset and LED buttons.
Internal Components
- Antenna Array: Uses internal omnidirectional antennas, specifically 2× 5 dBi for 2.4 GHz and 3× 4.7 dBi for 5 GHz, providing a coverage range of approximately 1,500 ft² (140 m²).
- Status Indicators: LED lights on the front of the polycarbonate shell provide real-time status updates.
