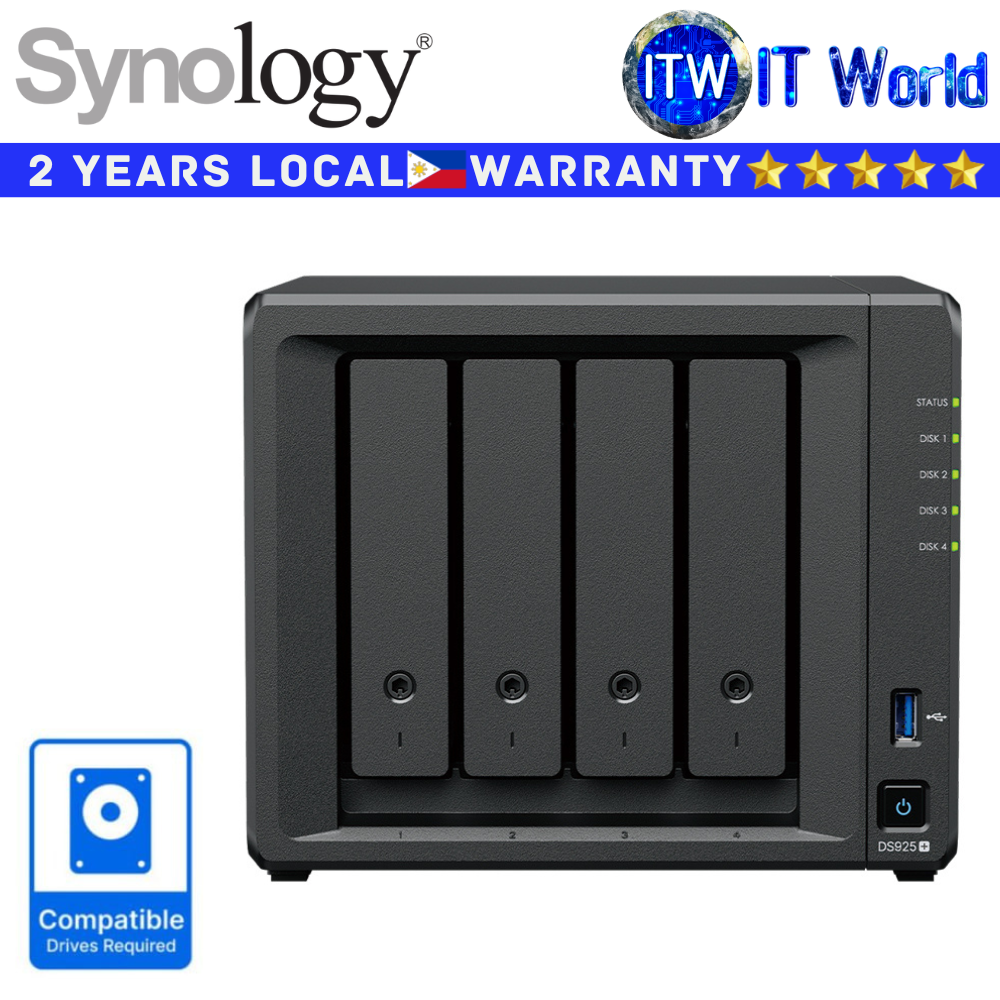

Product Name: Itw | Synology DiskStation DS925+ 4-Bays Compact Data Management Solution Desktop NAS Server
Specification
*CPU
CPU Model: AMD Ryzen V1500B
CPU Quantity: 1
CPU Core: 4
CPU Architecture :64-bit
CPU Frequency: 2.2
Hardware Encryption Engine: ✓
*Memory
System Memory: 4 GB DDR4 ECC SODIMM
Memory Module Pre-installed: 4 GB (4 GB x 1)
Total Memory Slots: 2
Maximum Memory Capacity: 32 GB (16 GB x 2)
*Storage
Drive Bays: 4
Maximum Drive Bays with Expansion Unit: 9 (DX525 x 1)
M.2 Drive Slots: 2 (NVMe)
Drive Type (See all supported drives)
- 3.5" SATA HDD
- 2.5" SATA SSD
- M.2 2280 NVMe SSD
Hot Swappable Drive*: ✓
*External Ports

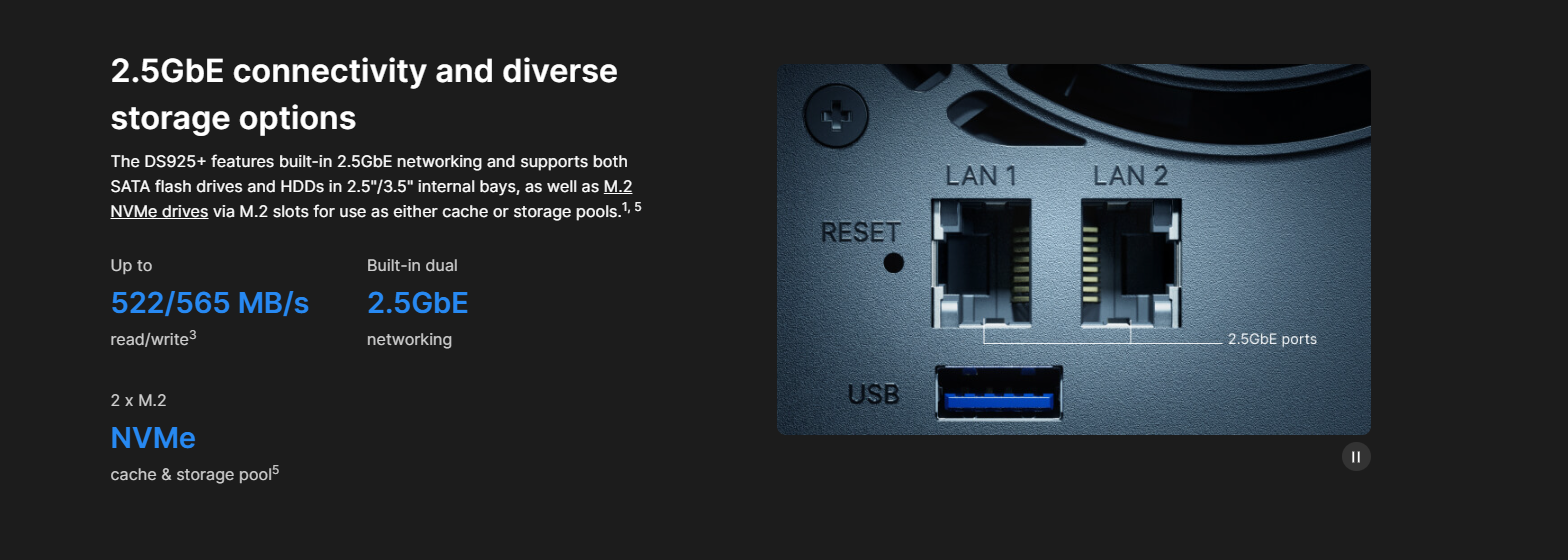

RJ-45 2.5GbE LAN Port: 2
USB 3.2 Gen 1 Port: 2
Expansion Port: 1
Expansion Port Type: USB Type-C
*Appearance
Size (Height x Width x Depth): 166 mm x 199 mm x 223 mm
Weight: 2.26 kg
*Others
System Fan: 92 mm x 92 mm x 2 pcs
Fan Speed Mode
- Full-Speed Mode
- Cool Mode
- Quiet Mode
Brightness Adjustable Front LED Indicators: ✓
Power Recovery: ✓
Noise Level*: 20.5 dB(A)
Scheduled Power On / Off: ✓
Wake on LAN / WAN: ✓
Power Supply Unit / Adapter: 100 watts
AC Input Power Voltage: 100V to 240V AC
Power Frequency: 50/60 Hz, Single Phase
Power Consumption*:
- 37.91 watts (Access)
- 12.33 watts (HDD Hibernation)
British Thermal Unit:
- 129.27 BTU/hr (Access)
- 42.05 BTU/hr (HDD Hibernation)
Notes:
- For more information on how power consumption is measured, refer to this article.
- Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two GRAS 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
*Temperature
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 60°C (-5°F to 140°F)
Relative Humidity: 5% to 95% RH
*Environment
RoHS Compliant
*Packaging Content
- Main Unit X 1
- Accessory Pack X 1
- AC Power Adapter X 1
- AC Power Cord X 1
- RJ-45 LAN Cable X 2
