Product Name:

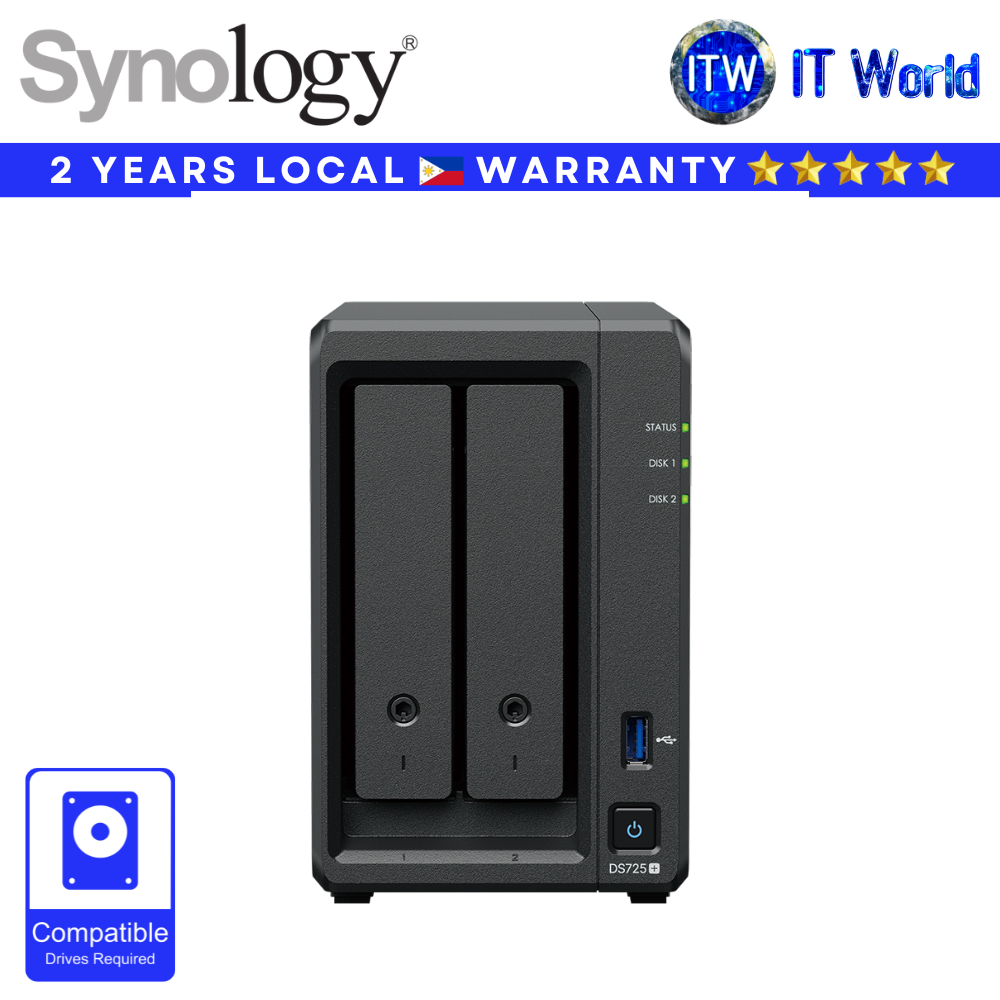

Itw | Synology DiskStation DS725+ NAS / AMD Ryzen / 2-Bay / 2.5GbE / NVMe / DDR4 ECC / DSM 7
Key Features:
AMD Ryzen R1600 Dual-Core CPU (2.6GHz base / 3.1GHz turbo)
4GB DDR4 ECC SODIMM memory (expandable up to 32GB)

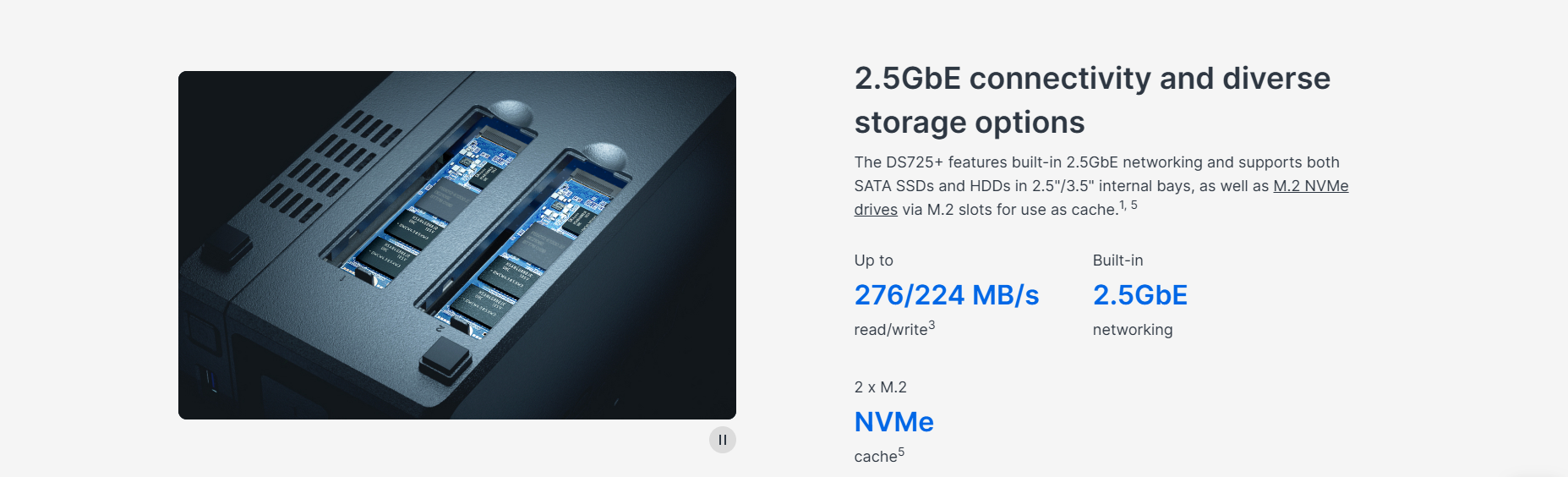

Dual M.2 NVMe SSD slots for cache or storage pool
2 x 3.5"/2.5" SATA bays, expandable to 7 bays (w/ DX525)
1 x 2.5GbE + 1 x 1GbE LAN port for high-speed networking
USB 3.2 Gen 1 + USB-C expansion port
Hot-swappable drive support (3.5” SATA only)
Quiet operation at just 17.9 dB(A)
DSM 7.0 OS with RAID, Hybrid RAID, and backup capabilities
Ultra-efficient power: 20.41W during access, 7.87W idle
Technical Specifications:
CPU: AMD Ryzen R1600, 2 cores, 64-bit, up to 3.1GHz
Memory:
Installed: 4GB DDR4 ECC SODIMM (1x4GB)
Expandable: Up to 32GB (2x16GB)
Drive Bays:
2 x 3.5"/2.5" SATA
2 x M.2 2280 NVMe SSD slots
Up to 7 drive bays with 1x DX525 expansion unit
LAN Ports:
1 x 2.5GbE
1 x 1GbE
USB Ports:
1 x USB 3.2 Gen 1
1 x USB Type-C (for expansion)
Cooling:
1 x 92mm system fan
Fan modes: Full-Speed / Cool / Quiet
RAID Support:
SHR, Basic, JBOD, RAID 0/1 (native)
RAID 5/6/10 with expansion
Max Volume Size: 200TB (32GB RAM required), default 108TB
Max Volume Count: 32
Noise Level: 17.9 dB(A)
Power Supply: 65W Adapter, 100–240V
Power Consumption: 20.41W (Access), 7.87W (HDD Hibernation)
DSM Features:
SSD Caching & M.2 NVMe Storage Pool support
RAID migration & expansion
Wake on LAN/WAN
Scheduled Power On/Off
Power Recovery
LED Brightness Adjustment
Extensive app ecosystem under Synology DSM OS
In the Box:
DiskStation DS725+ main unit
Accessory pack
AC power adapter (65W)
AC power cord
2 x RJ-45 LAN cables
Quick installation guide
Compatibility:
3.5" SATA HDD: HAT3300 / HAT5300 series
2.5" SATA SSD: SAT5200 series
NVMe SSD: SNV3400 / SNV5400 series
Memory Expansion: D4ES04-4G / D4ES03-8G / D4ES03-16G
Expansion Unit: DX525
