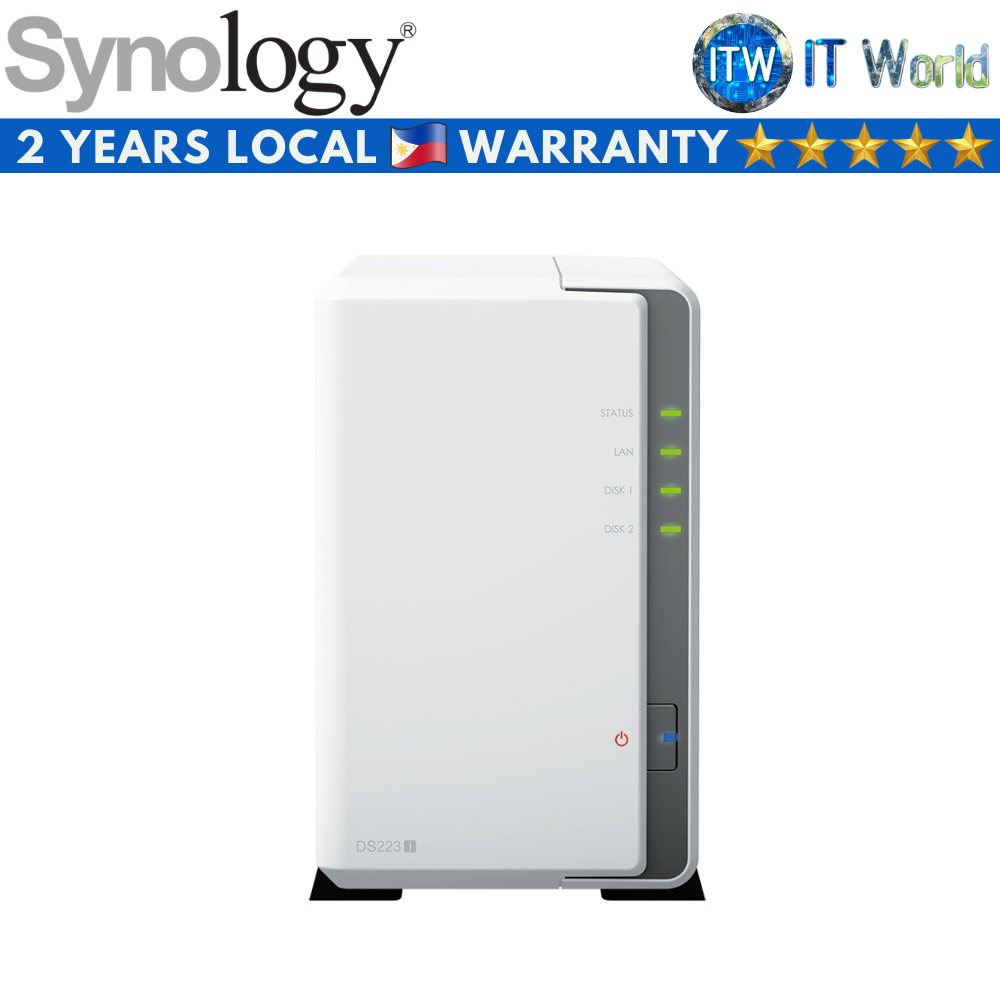

Product Name: ITW | Synology DS223J 2-Bay DiskStation NAS Enclosure
Specification
Hardware Specs
CPU
✎ CPU Model: Realtek RTD1619B
✎ CPU Quantity: 1
✎ CPU Architecture: 64-bit
✎ CPU Frequency: 4-core 1.7 GHz
✎ Hardware Encryption Engine: Yes
Memory
✎ System Memory: 1 GB DDR4 non-ECC
Storage
✎ Drive Bays: 2
✎ Compatible Drive Type* (See all supported drives)
■ 3.5" SATA HDD
■ 2.5" SATA SSD (with optional 2.5" Disk Holder)
External Ports
✎ RJ-45 1GbE LAN Port: 1
✎ USB 3.2 Gen 1 Port*: 2
File System
✎ Internal Drives
■ Btrfs
■ EXT4
✎ External Drives
■ Btrfs
■ EXT4
■ EXT3
■ FAT
■ NTFS
■ HFS+
■ exFAT
Appearance
✎ Size (Height x Width x Depth): 165 mm x 100 mm x 225.5 mm
✎ Weight: 0.88 kg
Others
✎ System Fan: 92 mm x 92 mm x 1 pcs
✎ Fan Speed Mode
■ Full-Speed Mode
■ Cool Mode
■ Quiet Mode
■ Low-power Mode
✎ Brightness Adjustable Front LED Indicators: Yes
✎ Power Recovery: Yes
✎ Noise Level*: 18.2 dB(A)
✎ Scheduled Power On / Off: Yes
✎ Wake on LAN / WAN: Yes
✎ Power Supply Unit / Adapter: 60 W
✎ AC Input Power Voltage: 100V to 240V AC
✎ Power Frequency: 50/60 Hz, Single Phase
✎ Power Consumption
■ 16.31 W (Access)
■ 4 W (HDD Hibernation)
✎ British Thermal Unit
■ 55.62 BTU/hr (Access)
■ 13.64 BTU/hr (HDD Hibernation)
Temperature
✎ Operating Temperature: 0°C to 40°C (32°F to 104°F)
✎ Storage Temperature: -20°C to 60°C (-5°F to 140°F)
✎ Relative Humidity: 5% to 95% RH
Environment
✎ RoHS Compliant
Software Specs
DSM Specs
Storage Management
✎ Maximum Single Volume Size*: 108 TB
✎ Maximum Internal Volume Number: 64
✎ Supported RAID Type
■ Synology Hybrid RAID
■ Basic
■ JBOD
■ RAID 0
■ RAID 1
✎ RAID Migration: Basic to RAID 1
✎ Volume Expansion with Larger HDDs
■ Synology Hybrid RAID
■ RAID 1
✎ Volume Expansion by Adding a HDD: Synology Hybrid RAID
File Services
✎ File Protocol: SMB/AFP/NFS/FTP/WebDAV
✎ Maximum Concurrent SMB/AFP/FTP Connections: 100
✎ Windows Access Control List (ACL) Integration: Yes
✎ NFS Kerberos Authentication: Yes
Account & Shared Folder
✎ Maximum Local User Accounts: 1,024
✎ Maximum Local Groups: 256
✎ Maximum Shared Folder: 256
✎ Maximum Shared Folder Sync Tasks: 4
Hyper Backup
✎ Data & Folder Backup: Yes
Log Center
✎ Syslog Events per Second: 200
General Specs
✎ Networking Protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
✎ Supported Browsers
■ Google Chrome
■ Firefox
■ Microsoft Edge
■ Safari
Download Station
✎ Maximum Concurrent Download Tasks: 80
SAN Manager
✎ Maximum iSCSI Target Number: 10
✎ Maximum LUN: 10
✎ LUN Clone/Snapshot, Windows ODX: Yes
Media Server
✎ DLNA Compliance: Yes
Synology Photos
✎ Facial Recognition: Yes
Snapshot Replication
✎ Maximum Snapshots per Shared Folder: 256
✎ Maximum of System Snapshots: 4,096
Surveillance Station
✎ Maximum IP cam (Licenses required): 12 (including 2 Free License) (see all supported IP cameras)
✎ Total FPS (H.264)
■ 360 FPS @ 720p (1280x720)
■ 360 FPS @ 1080p (1920x1080)
■ 300 FPS @ 3M (2048x1536)
■ 150 FPS @ 5M (2591x1944)
■ 110 FPS @ 4K (3840x2160)
✎ Total FPS (H.265)
■ 360 FPS @ 720p (1280x720)
■ 360 FPS @ 1080p (1920x1080)
■ 360 FPS @ 3M (2048x1536)
■ 350 FPS @ 5M (2591x1944)
■ 200 FPS @ 4K (3840x2160)
Synology Drive
✎ Recommended Number of Concurrent Sync Clients: 200 (the number of connections that can be maintained when the recommended number of hosted files was reached)
✎ Recommended Number of Hosted Files: 500,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Synology Office
✎ Maximum Users: 200
Video Station
✎ Yes
VPN Server
✎ Maximum Connections: 10
