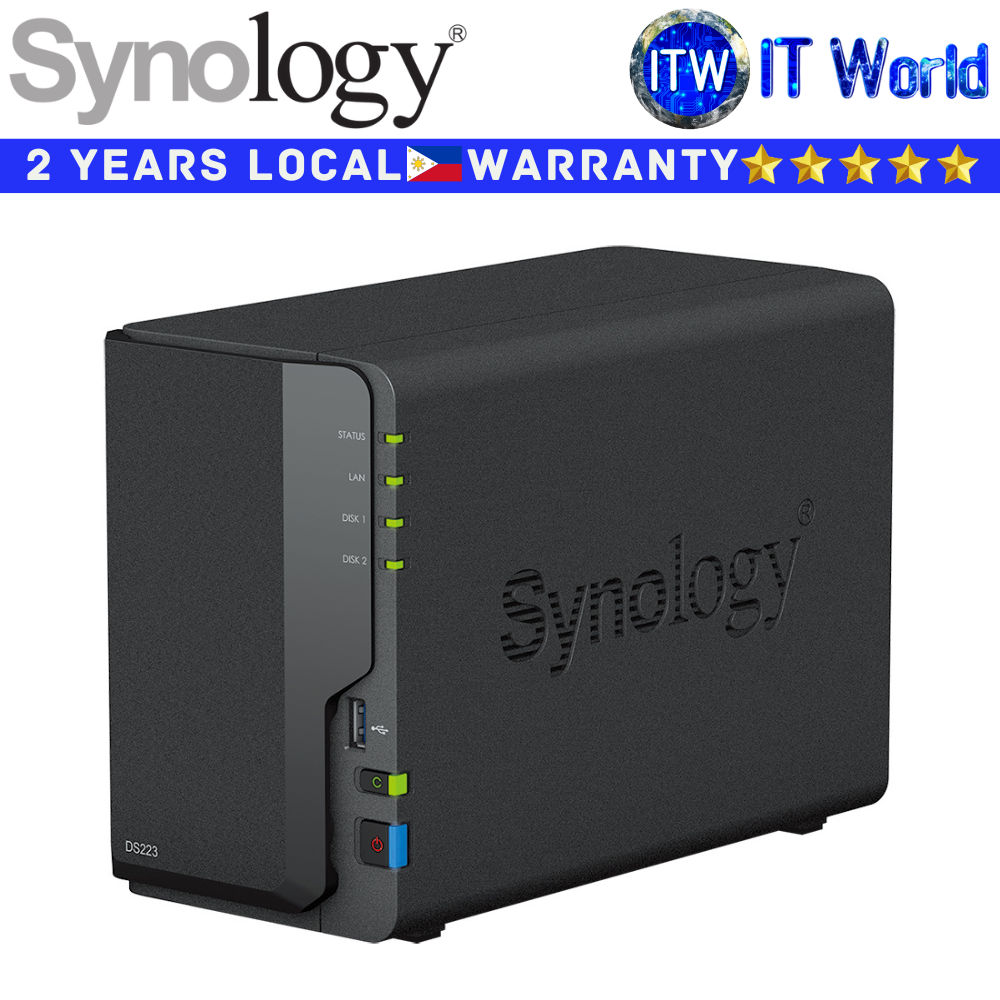

Itw | Synology NAS Storage Diskstation DS223 2-Bay Desktop Network Attached Storage (NAS)

Product Name: Itw | Synology NAS Storage Diskstation DS223 2-Bay Desktop Network Attached Storage (NAS)

Specification

** HARDWARE **

CPU

> CPU Model: Realtek RTD1619B

> CPU Quantity: 1

> CPU Core: 4

> CPU Architecture: 64-bit

> CPU Frequency: 1.7 GHz

> Hardware Encryption Engine: /

Memory

> System Memory: 2 GB DDR4 non-ECC

Storage

> Drive Bays: 2

> Compatible Drive Type

- 3.5" SATA HDD

- 2.5" SATA SSD

> Hot Swappable Drive: /

External Ports

> RJ-45 1GbE LAN Port: 1

> USB 3.2 Gen 1 Port: 3

> USB Copy: /

Appearance

> Size (Height x Width x Depth): 165 mm x 108 mm x 232.7 mm

> Weight: 1.28 kg

Others

> System Fan: 92 mm x 92 mm x 1 pcs

> Fan Speed Mode

- Full-Speed Mode

- Cool Mode

- Quiet Mode

> Brightness Adjustable Front LED Indicators: /

> Power Recovery: /

> Noise Level: 14.6 dB(A)

> Scheduled Power On / Off: /

> Wake on LAN / WAN: /

> Power Supply Unit / Adapter: 60 watts

> AC Input Power Voltage: 100V to 240V AC

> Power Frequency: 50/60 Hz, Single Phase

> Power Consumption

- 17.343 watts (Access)

- 4.08 watts (HDD Hibernation)

> British Thermal Unit

- 59.19 BTU/hr (Access)

- 13.92 BTU/hr (HDD Hibernation)

Temperature

> Operating Temperature: 0°C to 40°C (32°F to 104°F)

> Storage Temperature: -20°C to 60°C (-5°F to 140°F)

> Relative Humidity: 5% to 95% RH

Certification

> FCC

> CE

> BSMI

> VCCI

> RCM

> UKCA

> EAC

> CCC

> KC

> BIS

Environment

> RoHS Compliant

** SOFTWARE **

DSM Specs

Storage Management

> Maximum Single Volume Size: 108 TB

> Maximum Internal Volume Number: 64

> SSD TRIM: /

> Supported RAID Type

- Synology Hybrid RAID

- Basic

- JBOD

- RAID 0

- RAID 1

> RAID Migration: Basic to RAID 1

> Volume Expansion with Larger HDDs

- Synology Hybrid RAID

- RAID 1

> Volume Expansion by Adding a HDD: Synology Hybrid RAID

File System

> Internal Drives

- Btrfs

- ext4

> External Drives

- Btrfs

- ext4

- ext3

- FAT

- NTFS

- HFS+

- exFAT

File Services

> File Protocol

- SMB

- AFP

- NFS

- FTP

- WebDAV

- Rsync

> Maximum Concurrent SMB/AFP/FTP Connections: 200

> Windows Access Control List (ACL) Integration: /

> NFS Kerberos Authentication: /

Account & Shared Folder

> Maximum Local User Accounts: 1,024

> Maximum Local Groups: 256

> Maximum Shared Folder: 256

> Maximum Shared Folder Sync Tasks: 4

Hybrid Share

> Hybrid Share Folder Number: 5

Hyper Backup

> Folder and Package Backup: /

Log Center

> Syslog Events per Second: 400
