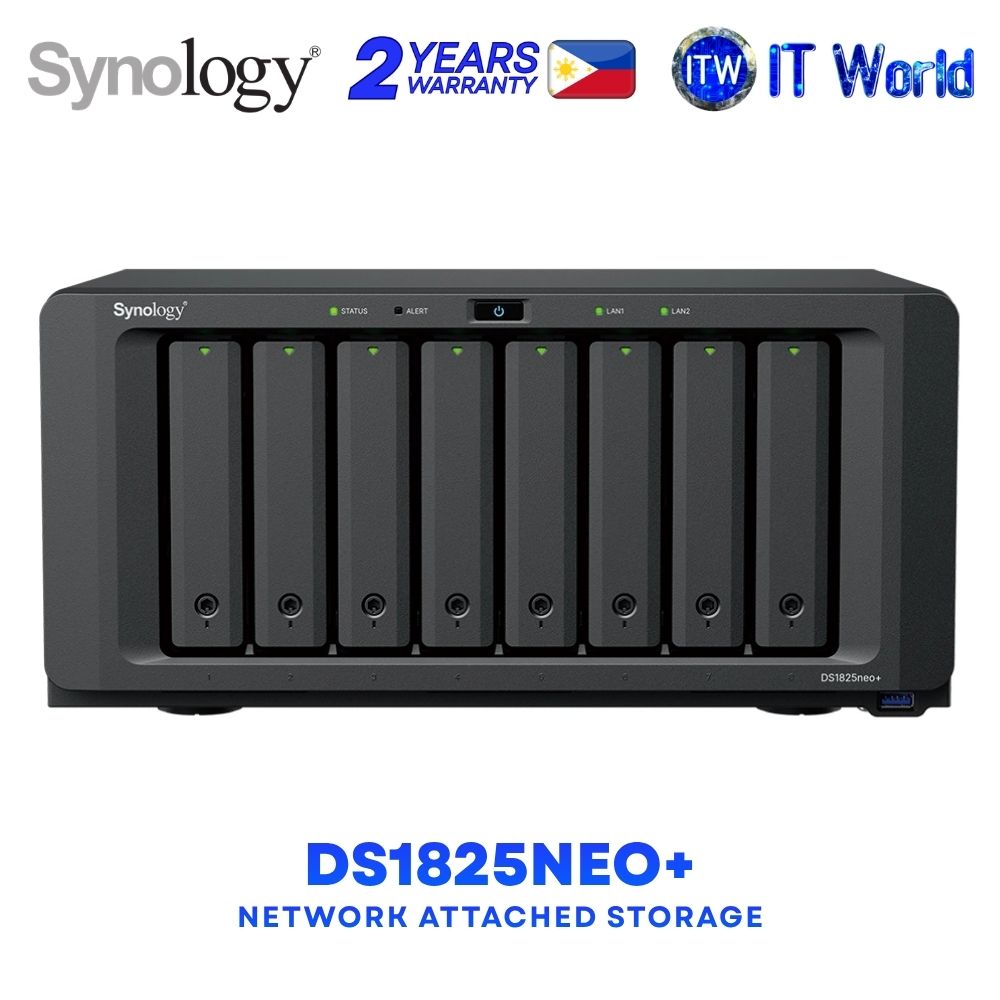

Synology DS1825NEO+ 8-Bays Network Attached Storage (NAS)
🌐 Upgrade your storage infrastructure with the Synology DS1825NEO+ 8-Bay Network Attached Storage (NAS), designed for centralized storage management, data protection, file sharing, backup, and virtualization workloads. Powered by an AMD Ryzen processor and Synology DiskStation Manager (DSM), this NAS offers flexible storage expansion, multi-user collaboration, and a wide range of business and enterprise storage features.
Key Features & Specifications
Processor Performance
🖥️ CPU: AMD Ryzen V1500B
🖥️ CPU Cores: 4 cores / 8 threads
🖥️ CPU Frequency: 2.2 GHz
🖥️ Architecture: 64-bit
🖥️ Hardware Encryption Engine: Supported
Memory
💾 Installed Memory: 4GB DDR4 non-ECC SODIMM
💾 Memory Slots: 2
💾 Maximum Memory Capacity: 32GB (16GB × 2)
Flexible Storage Configuration
🗄️ Drive Bays: 8 × 3.5-inch SATA HDD or 2.5-inch SATA SSD
🗄️ M.2 Slots: 2 × M.2 2280 NVMe SSD
🗄️ Maximum Drive Bays with Expansion Units: 18 (using 2 × DX525)
🗄️ Hot-Swappable Drives: Supported for compatible drive bays
🗄️ SSD Read/Write Cache: Supported
🗄️ M.2 SSD Storage Pools: Supported with compatible Synology-verified SSDs
Network & Connectivity
🌐 2 × RJ-45 2.5GbE LAN ports
🌐 3 × USB 3.2 Gen 1 ports
🌐 2 × USB Type-C expansion ports
🌐 1 × PCIe Gen3 x8 slot (x4 link)
Storage Management & Data Protection
🔒 Supported RAID Types: Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
🔒 File Systems: Btrfs and ext4 for internal drives
🔒 SSD TRIM and storage efficiency support
🔒 Global Hot Spare support for supported RAID types
🔒 Volume expansion and RAID migration capabilities
🔒 Hyper Backup: Folder, package, and entire-system backup support
🔒 Snapshot Replication: Supports up to 4,096 snapshots per system
File Sharing & Collaboration
👥 Maximum SMB Connections: 60
👥 Maximum Local User Accounts: 1,024
👥 Maximum Local Groups: 256
👥 Maximum Shared Folders: 256
👥 Synology Drive: Up to 100 users
👥 Synology Office: Up to 100 users
👥 Synology Chat: Up to 150 users
👥 Synology High Availability: Supported
Virtualization & Business Applications
🧠 Recommended Virtual Machine Manager Instances: 8
🧠 VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack Cinder support
🧠 Synology AI Console with third-party AI model integration
🧠 VPN Server: Up to 8 connections
🧠 Synology MailPlus: Up to 120 users, subject to workload and configuration
Surveillance Capabilities
📹 Default Surveillance Station Licenses: 2
📹 Supports up to 40 IP camera channels for selected resolutions and codecs, depending on configuration
📹 Supports H.264 and H.265 camera streams
Cooling & Power
❄️ System Fans: 2 × 120mm fans
❄️ Fan Modes: Full-Speed, Cool, and Quiet
❄️ Power Supply: 250W
❄️ Power Consumption: 60.1W (access) / 18.34W (HDD hibernation)
❄️ Noise Level: 23.8 dB(A)
❄️ Wake on LAN/WAN: Supported
❄️ Scheduled Power On/Off: Supported
Physical Specifications
📏 Dimensions (H × W × D): 166 × 343 × 243 mm
📏 Unit Weight: 6 kg
📏 Operating Temperature: 0°C to 40°C
📏 Operating Humidity: 8% to 80% RH
📏 RoHS Compliant
Package Contents
📦 1 × Main Unit
📦 1 × Accessory Pack
📦 1 × AC Power Cord
📦 2 × RJ-45 LAN Cables
Important Notes
⚠️ Hard drives, SSDs, memory upgrades, expansion units, and other optional accessories are sold separately unless otherwise specified.
⚠️ Check Synology's drive compatibility list before purchasing storage drives.
⚠️ M.2 SSD hot-swapping is not supported.
⚠️ Volumes larger than 108TB require at least 32GB of memory.
⚠️ For multi-module memory configurations, use identical modules with the same model number. Synology memory modules are recommended for compatibility and reliability.
⚠️ Actual storage capacity and performance depend on drive configuration, RAID setup, installed memory, and workload.
