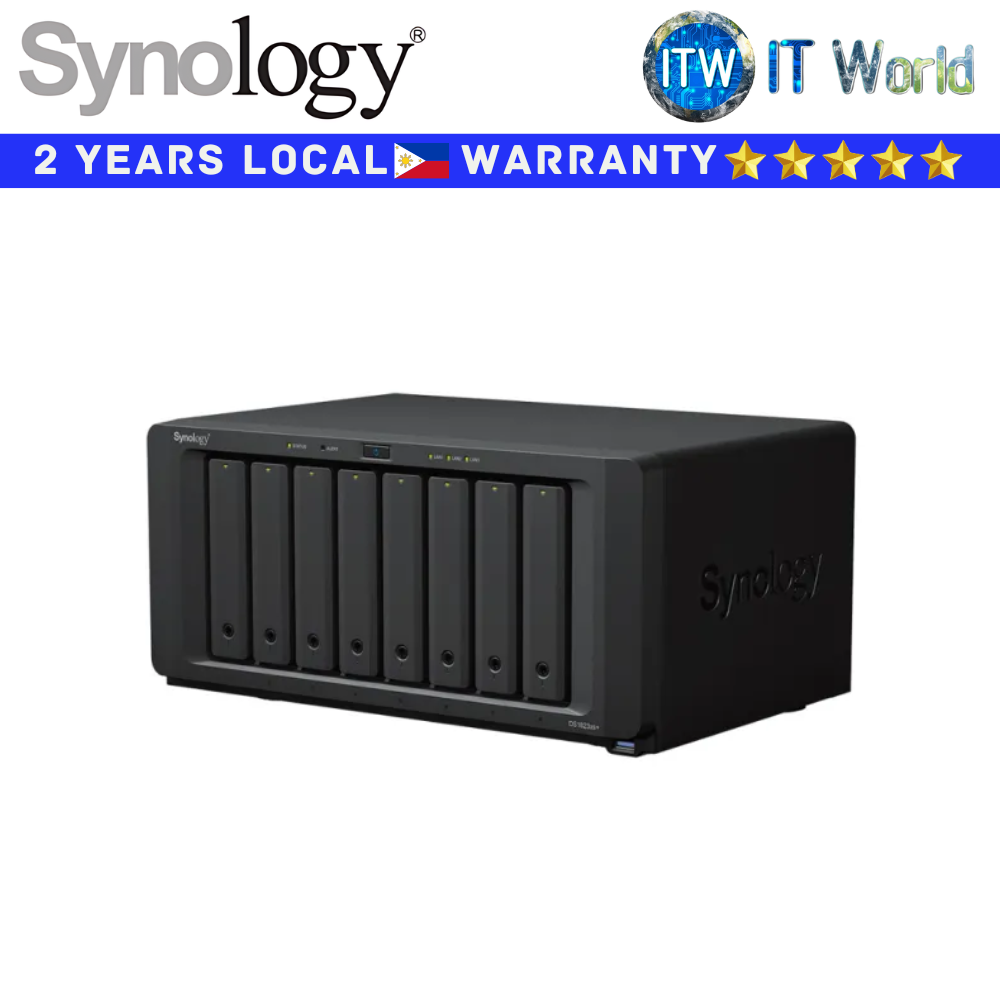

Product Name: ITW | Synology Diskstation DS1823xs+ 8-Bays Desktop NAS (DS1823xs+)
Specification
■ Hardware Specs ■
CPU
✎ CPU Model: AMD Ryzen V1780B
✎ CPU Quantity: 1
✎ CPU Architecture: 64-bit
✎ CPU Frequency: 4-core 3.35 (base) / 3.6 (turbo) GHz
✎ Hardware Encryption Engine (AES-NI): Yes
Memory
✎ System Memory: 8 GB DDR4 ECC SODIMM
✎ Memory Module Pre-installed: 8 GB (8 GB x 1)
✎ Total Memory Slots: 2
✎ Maximum Memory Capacity: 32 GB (16 GB x 2)
Storage
✎ Drive Bays: 8
✎ Maximum Drive Bays with Expansion Unit: 18 (DX517 x 2)
✎ M.2 Drive Slots: 2 (NVMe)
✎ Compatible Drive Type* (See all supported drives)
■ 3.5" SATA HDD
■ 2.5" SATA SSD
■ M.2 2280 NVMe SSD
✎ Hot Swappable Drive*: Yes
External Ports
✎ RJ-45 1GbE LAN Port*: 2 (with Link Aggregation / Failover support)
✎ RJ-45 10GbE LAN Port: 1
✎ Management LAN Port: 1
✎ USB 3.2 Gen 1 Port*: 3
✎ eSATA Port: 2
PCIe
✎ PCIe Expansion: 1 x Gen3 x8 slot (x4 link)
File System
✎ Internal Drives
■ Btrfs
■ EXT4
✎ External Drives
■ Btrfs
■ EXT4
■ EXT3
■ FAT
■ NTFS
■ HFS+
■ exFAT
Appearance
✎ Size (Height x Width x Depth): 166 mm x 343 mm x 243 mm
✎ Weight: 6.2 kg
Others
✎ System Fan: 120 mm x 120 mm x 2 pcs
✎ Fan Speed Mode
■ Full-Speed Mode
■ Cool Mode
■ Quiet Mode
✎ Easy Replacement System Fan: Yes
✎ Brightness Adjustable Front LED Indicators: Yes
✎ Power Recovery: Yes
✎ Noise Level*: 23.6 dB(A)
✎ Scheduled Power On / Off: Yes
✎ Wake on LAN / WAN: Yes
✎ Power Supply Unit / Adapter: 250 W
✎ AC Input Power Voltage: 100V to 240V AC
✎ Power Frequency: 50/60 Hz, Single Phase
✎ Power Consumption
■ 87.93 W (Access)
■ 28.37 W (HDD Hibernation)
✎ British Thermal Unit
■ 300.23 BTU/hr (Access)
■ 96.87 BTU/hr (HDD Hibernation)
Temperature
✎ Operating Temperature: 0°C to 40°C (32°F to 104°F)
✎ Storage Temperature: -20°C to 60°C (-5°F to 140°F)
✎ Relative Humidity: 5% to 95% RH
■ Software Specs ■
DSM Specifications
Storage Management
✎ Maximum Single Volume Size*
■ 200 TB (32 GB memory required)
■ 108 TB
✎ Maximum Internal Volume Number: 256
✎ M.2 SSD Storage Pool Support*: Yes
✎ SSD Read / Write Cache (White Paper): Yes
✎ SSD TRIM: Yes
✎ RAID Group: Yes
✎ Supported RAID Type
■ RAID F1
■ Basic
■ JBOD
■ RAID 0
■ RAID 1
■ RAID 5
■ RAID 6
■ RAID 10
✎ RAID Migration
■ Basic to RAID 1
■ Basic to RAID 5
■ RAID 1 to RAID 5
■ RAID 5 to RAID 6
✎ Volume Expansion with Larger HDDs
■ RAID F1
■ RAID 1
■ RAID 5
■ RAID 6
■ RAID 10
✎ Volume Expansion by Adding a HDD
■ RAID F1
■ JBOD
■ RAID 5
■ RAID 6
✎ Global Hot Spare Supported RAID Type
■ RAID F1
■ RAID 1
■ RAID 5
■ RAID 6
■ RAID 10
File Services
✎ File Protocol: SMB/AFP/NFS/FTP/WebDAV
✎ Maximum Concurrent SMB/AFP/FTP Connections: 2,000
✎ Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion): 8,000
✎ Windows Access Control List (ACL) Integration: Yes
✎ NFS Kerberos Authentication: Yes
Account & Shared Folder
✎ Maximum Local User Accounts: 16,000
✎ Maximum Local Groups: 512
✎ Maximum Shared Folder: 512
✎ Maximum Shared Folder Sync Tasks: 32
Hybrid Share
✎ Hybrid Share Folder Number: 15
High Availability
✎ Synology High Availability: Yes
Log Center
✎ Syslog Events per Second: 3,000
General
✎ Networking Protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
✎ Supported Browsers
■ Google Chrome
■ Firefox
■ Microsoft Edge
■ Safari
Document Viewer
Download Station
✎ Maximum Concurrent Download Tasks: 80
SAN Manager
✎ Maximum iSCSI Target Number: 256
✎ Maximum LUN: 512
✎ LUN Clone/Snapshot, Windows ODX: Yes
Synology MailPlus / MailPlus Server
✎ Free Email Accounts: 5 (Licenses required for additional accounts)
✎ Maximum Number of Concurrent Users: 450
✎ Maximum Server Performance: 2,029,000 emails per day, approx. 59GB
Media Server
✎ DLNA Compliance: Yes
Synology Photos
✎ Facial Recognition: Yes
Snapshot Replication
✎ Maximum Snapshots per Shared Folder: 1,024
✎ Maximum of System Snapshots: 65,536
Surveillance Station
✎ Maximum IP cam (Licenses required): 75 (including 2 Free License) (see all supported IP cameras)
✎ Total FPS (H.264)
■2250 FPS @ 720p (1280x720)
■2100 FPS @ 1080p (1920x1080)
■1500 FPS @ 3M (2048x1536)
■900 FPS @ 5M (2591x1944)
■550 FPS @ 4K (3840x2160)
✎ Total FPS (H.265)
■2250 FPS @ 720p (1280x720)
■2250 FPS @ 1080p (1920x1080)
■2250 FPS @ 3M (2048x1536)
■1500 FPS @ 5M (2591x1944)
■900 FPS @ 4K (3840x2160)
Synology Drive
✎ Recommended Number of Concurrent Sync Clients: 900 (the number of connections that can be maintained when the recommended number of hosted files was reached)
✎ Recommended Number of Hosted Files: 50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Synology Office
✎ Maximum Users: 2,900
✎ Video Station: Yes
Virtual Machine Manager
✎ Recommended Virtual Machine Instances: 8 (Learn more)
✎ Recommended Virtual DSM Number (Licenses required): 8 (including 1 Free License)
VPN Server
✎ Maximum Connections: 60
