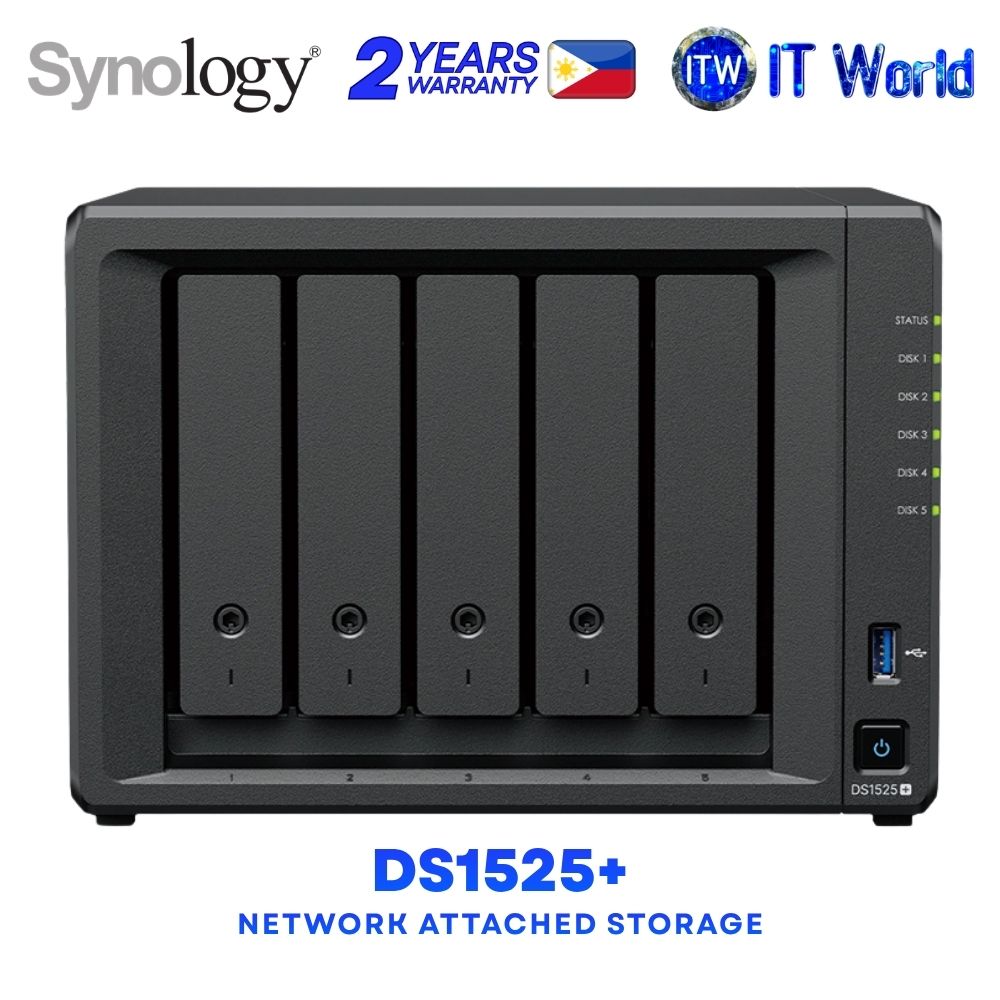

Synology DS1525+ / DS1525NEO+ Diskstation 5-Bays Network Attached Storage (NAS)
🌐 Upgrade your storage infrastructure with the Synology DiskStation DS1525+ / DS1525neo+ 5-Bay Network Attached Storage (NAS), designed for centralized storage management, file sharing, backup, and network-based storage solutions. Powered by an AMD Ryzen V1500B processor, both models offer flexible storage expansion, versatile connectivity, and Synology DiskStation Manager (DSM) features.
Key Features & Specifications
Processor
🖥️ AMD Ryzen V1500B
🖥️ 4 CPU cores and 8 threads
🖥️ 2.2 GHz frequency
🖥️ 64-bit CPU architecture
Memory Configuration
💾 DS1525+: 8 GB DDR4 ECC SODIMM (8 GB × 1)
💾 DS1525neo+: 4 GB DDR4 non-ECC SODIMM (4 GB × 1)
💾 2 memory slots
💾 Maximum memory capacity: 32 GB (16 GB × 2)
Flexible Storage
🗄️ 5 × 3.5-inch SATA HDD or 2.5-inch SATA SSD drive bays
🗄️ 2 × M.2 2280 NVMe SSD slots
🗄️ Expandable up to 15 drive bays with 2 × DX525 expansion units
🗄️ SSD read/write cache support with select compatible SSDs
Connectivity & Expansion
🌐 2 × 2.5GbE RJ-45 LAN ports
🌐 2 × USB 3.2 Gen 1 ports
🌐 2 × USB Type-C expansion ports
🌐 1 × PCIe Gen3 x2 network upgrade slot
🌐 Optional 10GbE network upgrade module: E10G22-T1-Mini
Storage Management & File Systems
⚙️ Supports Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
⚙️ Internal file systems: Btrfs and ext4
⚙️ External file systems: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, and exFAT
⚙️ Up to 32 internal volumes
⚙️ Supports SMB, AFP, NFS, FTP, WebDAV, and Rsync file services
⚙️ Maximum of 40 SMB connections (FSCT-based)
Productivity & Backup
📁 Synology Drive supports up to 80 users and 500,000 hosted or indexed files
📁 Synology Office supports up to 80 users
📁 Synology Chat supports up to 150 users
📁 Hyper Backup supports data, folder, and entire-system backup
📁 Snapshot Replication supports up to 4,096 snapshots per system
📁 Virtual Machine Manager supports up to 8 recommended virtual machine instances
Surveillance Station
🎥 2 default camera licenses
🎥 Supports up to 40 channels at 1080p with H.264 or H.265, subject to the specified performance conditions
🎥 Additional camera licenses require purchase
Cooling & Noise
🔇 2 × 92 mm system fans
🔇 Full-Speed, Cool, and Quiet fan modes
🔇 Noise level: 22.60 dB(A)
Power Specifications
🔌 120W power adapter
🔌 AC input: 100V–240V
🔌 Power frequency: 50/60 Hz, single phase
🔌 Power consumption: 44.56W (access) and 13.63W (HDD hibernation)
Physical Specifications
📐 Dimensions (H × W × D): 166 × 230 × 223 mm
📐 Unit weight: 2.67 kg
📐 Operating temperature: 0°C to 40°C
📐 RoHS compliant
Package Contents
📦 Main unit × 1
📦 Accessory pack × 1
📦 AC power adapter × 1
📦 AC power cord × 1
📦 RJ-45 LAN cable × 2
