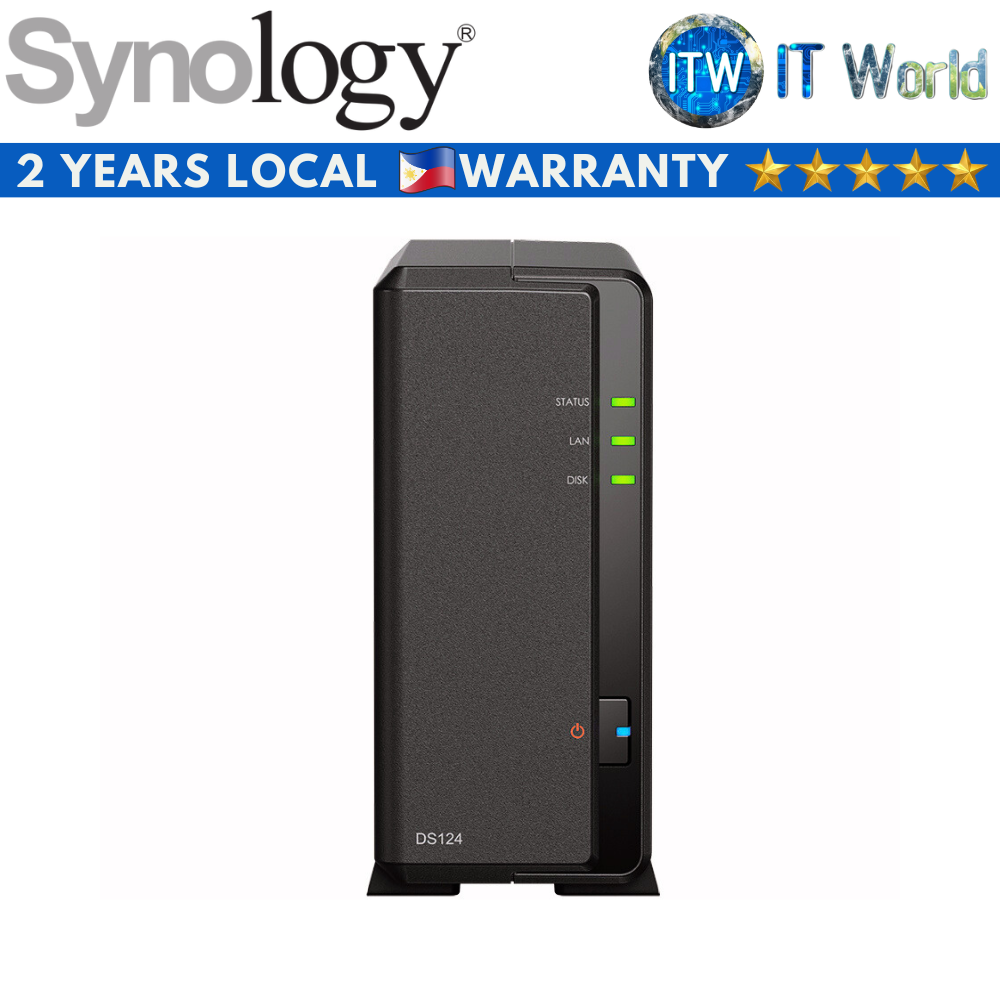

Product Name: Itw | Synology Diskstation DS124 1-Bay Network Attached Storage (NAS)
Specification
HARDWARE SPECS
CPU
* CPU Model: Realtek RTD1619B
* CPU Quantity: 1
* CPU Architecture: 64-bit
* CPU Frequency: 4-core 1.7 GHz
* Hardware Encryption Engine: /
Memory
* System Memory: 1 GB DDR4 non-ECC
* Notes: Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage
* Drive Bays: 1
* Compatible Drive Type* (See all supported drives)
> 3.5" SATA HDD
> 2.5" SATA SSD (with optional 2.5" Disk Holder)
* Hot Swappable Drive*: -
* Notes: "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
* RJ-45 1GbE LAN Port: 1
* USB 3.2 Gen 1 Port*: 2
* Notes
> This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
> The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
File System
* Internal Drives
> Btrfs
> EXT4
* External Drives
> Btrfs
> EXT4
> EXT3
> FAT
> NTFS
> HFS+
> exFAT
Appearance
* Size (Height x Width x Depth): 166 mm x 71 mm x 224 mm
* Weight: 0.7 kg
Others
* System Fan: 60 mm x 60 mm x 1 pcs
* Fan Speed Mode
> Full-Speed Mode
> Cool Mode
> Quiet Mode
> Low-power Mode
* Brightness Adjustable Front LED Indicators: /
* Power Recovery: /
* Noise Level*: 19.0 dB(A)
* Scheduled Power On / Off: /
* Wake on LAN / WAN: /
* Power Supply Unit / Adapter: 36 W
* AC Input Power Voltage: 100V to 240V AC
* Power Frequency: 50/60 Hz, Single Phase
* Power Consumption
> 10.69 W (Access)
> 3.44 W (HDD Hibernation)
* British Thermal Unit
> 36.50 BTU/hr (Access)
> 11.75 BTU/hr (HDD Hibernation)
* Notes
> For more information on how power consumption is measured, refer to this article.
> Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
* Operating Temperature: 0°C to 40°C (32°F to 104°F)
* Storage Temperature: -20°C to 60°C (-5°F to 140°F)
* Relative Humidity: 5% to 95% RH
Certification
* FCC
* CE
* BSMI
* VCCI
* RCM
* UKCA
* EAC
* CCC
* KC
Environment
* RoHS Compliant
Packaging Content
* Main Unit X 1
* Accessory Pack X 1
* AC Power Adapter X 1
* RJ-45 LAN Cable X 1
* Quick Installation Guide X 1
Optional Accessories
* 3.5" SATA HDD: HAT3300
SOFTWARE SPECS
DSM Specs
Storage Management
* Maximum Single Volume Size: 108 TB
* Maximum Internal Volume Number: 1
* SSD TRIM: /
* Supported RAID Type: Basic
* Notes
> Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
> Actual maximum storage pool and volume sizes vary depending on drives used, the number of drive bays available, and the RAID configuration.
File Services
* File Protoco: SMB/AFP/NFS/FTP/WebDAV
* Maximum Concurrent SMB/AFP/FTP Connections: 200
* Windows Access Control List (ACL) Integration: /
* NFS Kerberos Authentication: /
* Notes: The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder
* Maximum Local User Accounts: 1,024
* Maximum Local Groups: 256
* Maximum Shared Folder: 256
* Maximum Shared Folder Sync Tasks: 4
Hyper Backup
* Folder and Package Backup: /
Log Center
* Syslog Events per Second: 400
General
* Networking Protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
* Supported Browsers
> Google Chrome
> Firefox
> Microsoft Edge
> Safari
* Synology Chat: /
Download Station
* Maximum Concurrent Download Tasks: 80
SAN Manager
* Maximum iSCSI Target Number: 10
* Maximum LUN: 10
* LUN Clone/Snapshot, Windows ODX: /
Media Server
* DLNA Compliance: /
Synology Photos
* Facial Recognition: /
Snapshot Replication
* Maximum Snapshots per Shared Folder: 256
* Maximum of System Snapshots: 4,096
VPN Server
* Maximum Connections: 20
