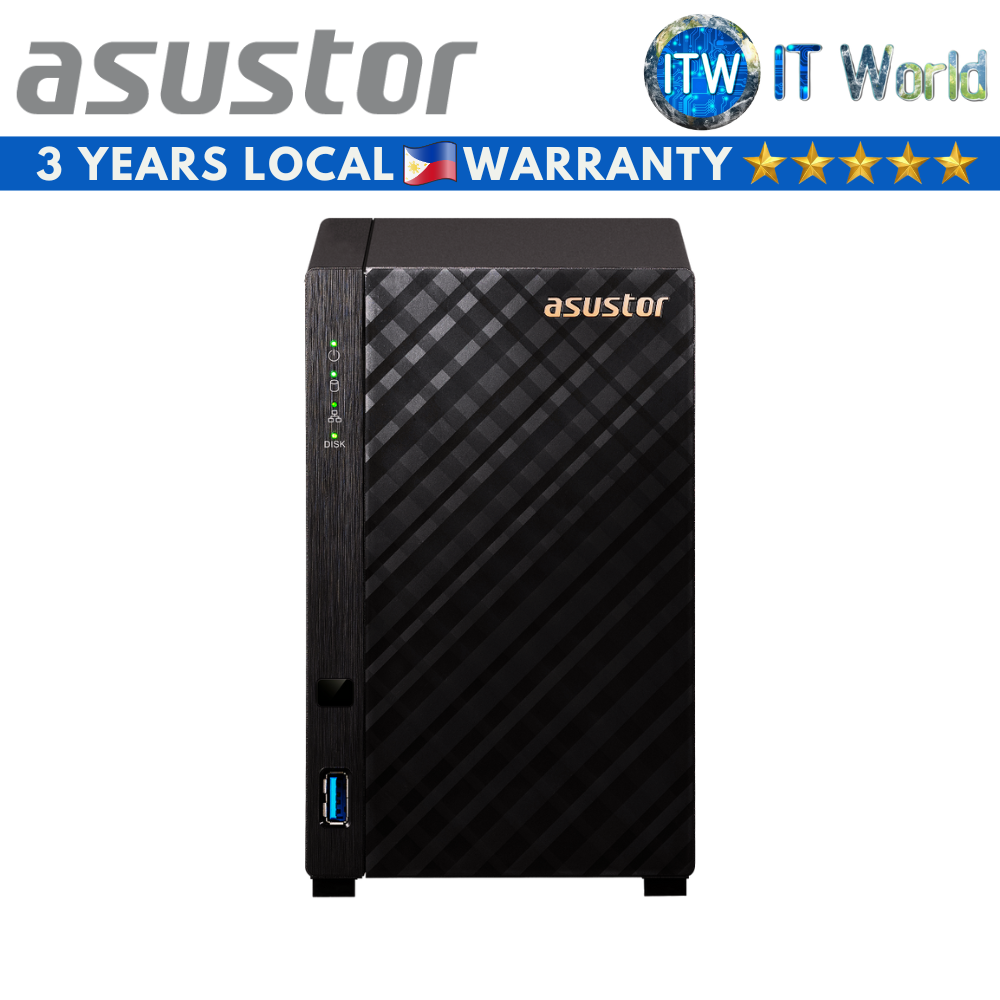

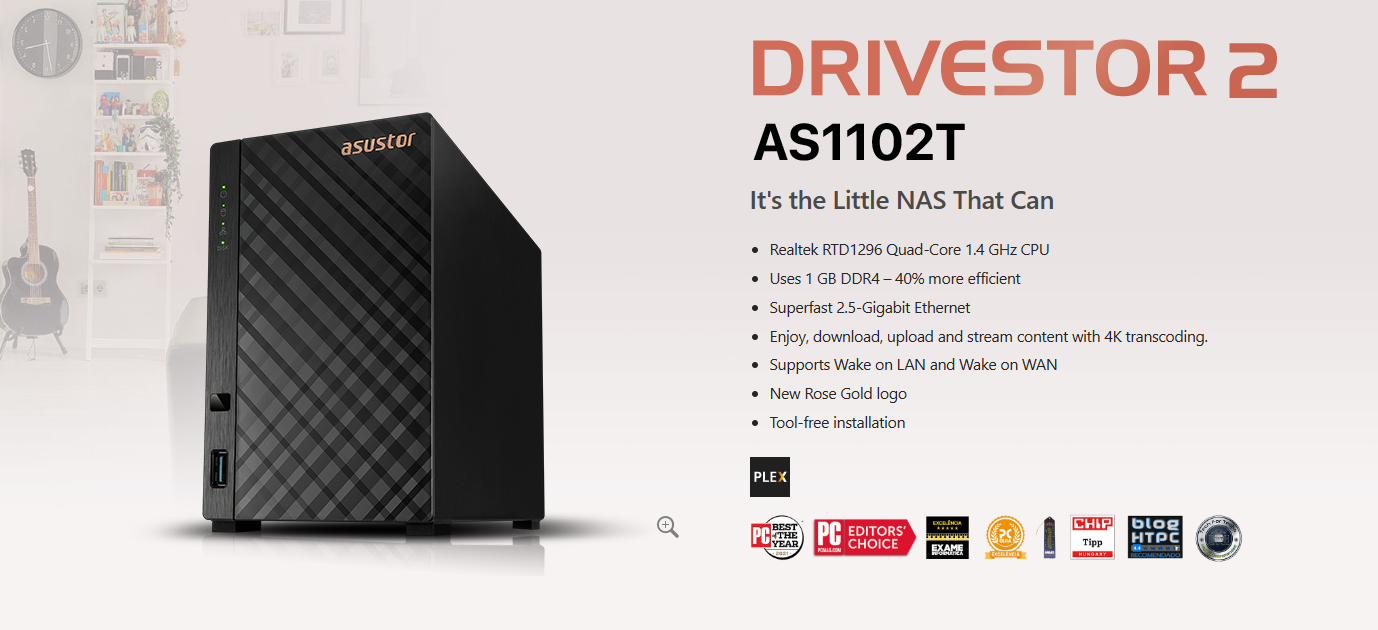

Product Name: Itw | Asustor Driverstor 2 AS1102T 2-Bays 1GB DDR4 NAS
Specification
*** Hardware Specs ***

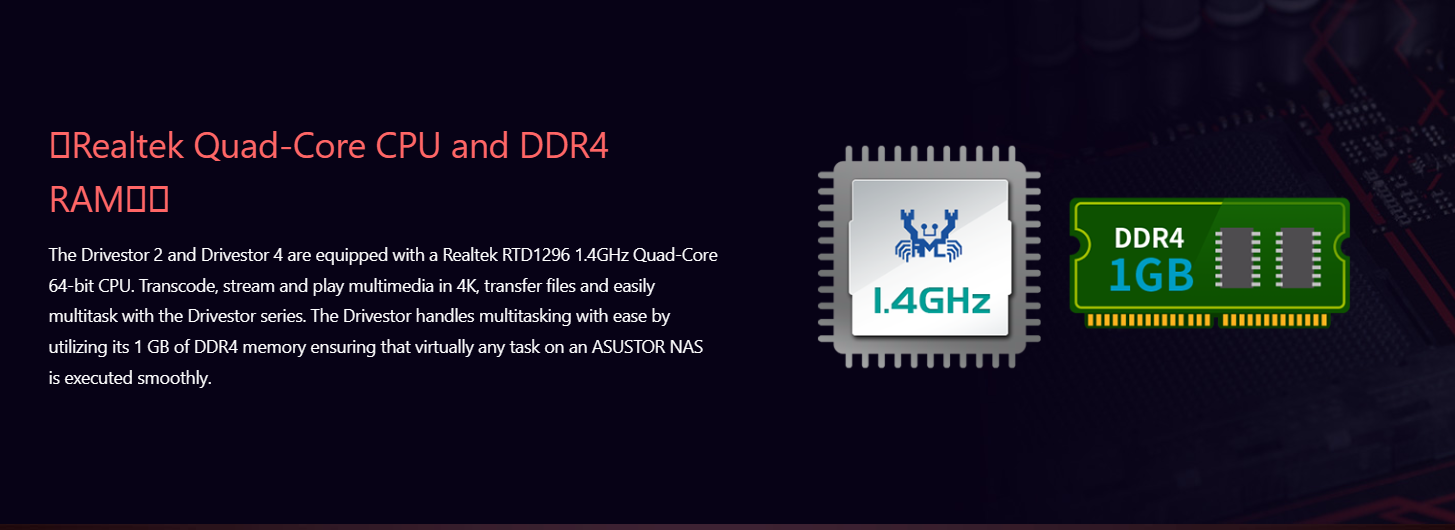

CPU

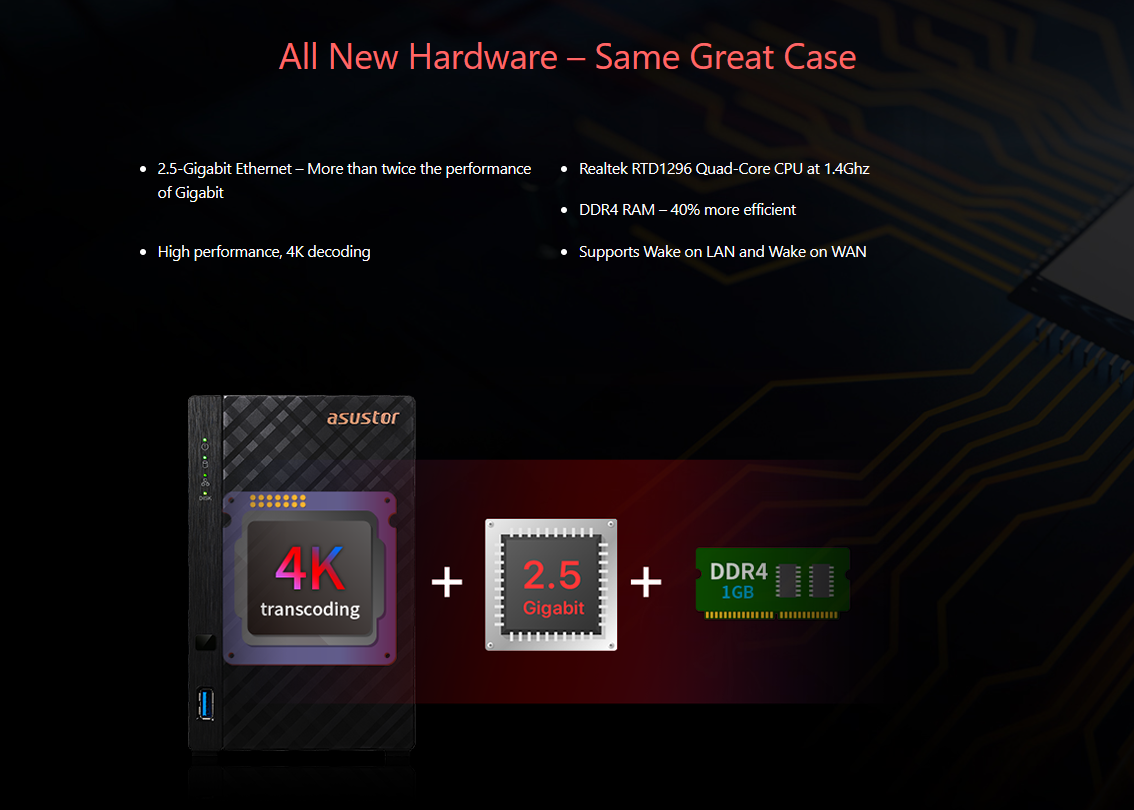

* CPU Model: Realtek RTD1296
* CPU Architecture: ARM64 64-bit
* CPU Frequency: Quad-Core 1.4GHz
Memory
* Memory: 1GB DDR4
* Memory Expandable up to: not expandable
* Flash Memory: 8GB eMMC
Storage
* Drive Bays: 2
* Compatible Drive Type: 3.5" SATA HDD
* Maximum Drive Bays with Expansion Unit: 10
External Ports
* Expansion: 2x USB 3.2 Gen 1

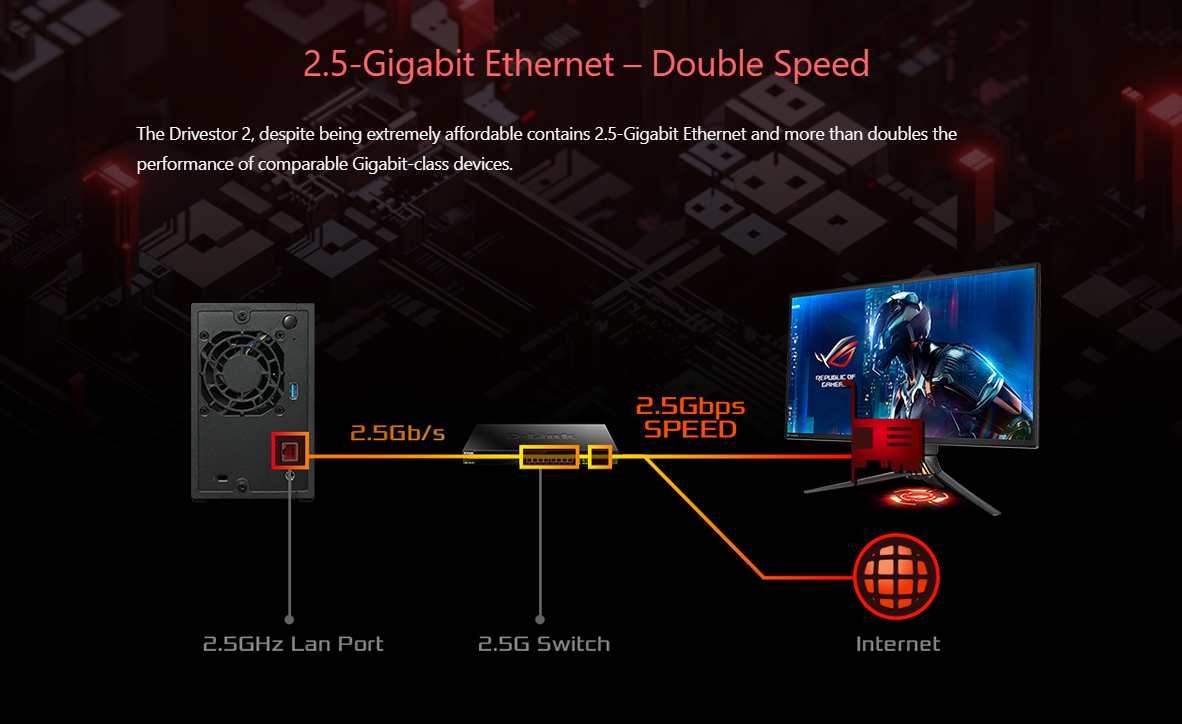

* Network: 1x 2.5 Gigabit Ethernet (2.5G/1G/100M)
* Multimedia Output: N/A
Others
* System Fan: 1x 70mm
* Power Supply Unit / Adapter: 65W x1
* Input Power Voltage: 100V to 240V AC
* Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC
Operation
* Power Consumption: 11.6W (Operation) 5.97W (Disk Hibernation);

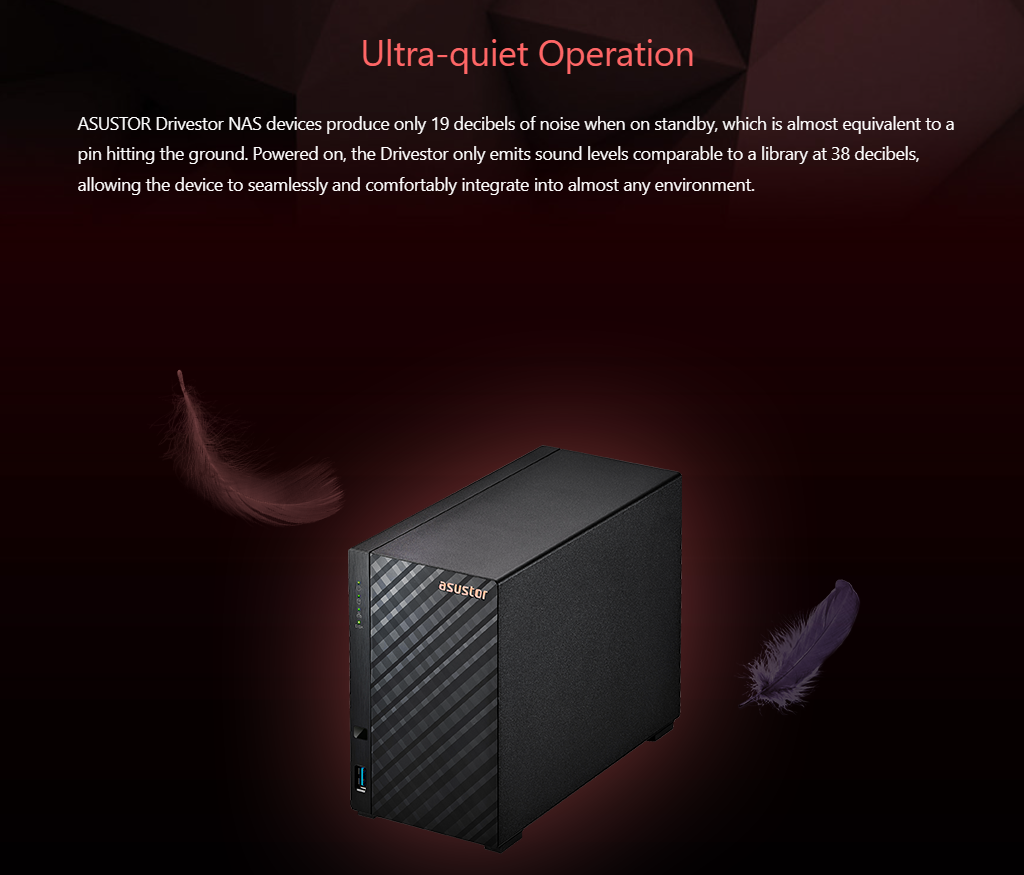

* Noise Level: 18.6dB (HDD idle)
* Operation Temperature: 0°C~40°C (32°F~104°F)
* Humidity: 5% to 95% RH
Size and Weight
* Size: 165 (H) x 102 (W) x 218 (D) mm
* Weight: 1.14 kg / 2.5 lbs
*** Software & Features ***
General
* Supported OS
- Windows 7, 8, 10, 11, Server 2008, Server 2012, Server 2016, Server 2019, Server 2022
- macOS
- UNIX, Linux, and BSD
* Supported Browsers
- Firefox
- Chrome
- Safari
- Microsoft Edge
Network
* Network Protocols: CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
* Connection and transmission
- TCP/IP (IPv4 & IPv6)
- Link Aggregation: 0
- Jumbo Frame (MTU)
- VLAN
- EZ Connect
- Wireless Network
- DDNS and EZ-Router
- Supports Wake-on-LAN (WOL)
- Supports Wake-on-WAN (WOW)
File Management & Sharing
* File System
- Internal Disk: EXT4
- External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT
* File Explorer
- Web-based File Management
- ISO File Mounting
- Share Links
- Task Monitor
- Browse Files on Local PC
- Thumbnail Previews
- Data Access via External Optical Drive
- Supports video playback
* Network Recycle Bin
- Share folder-based
- Maintains original directory structure and file permission
- On-click restore
- Supports scheduled emptying
- Filtering rules
1. File size
2. File extension
- Deletion Settings
1. File size
2. File date
Storage management
* Volume

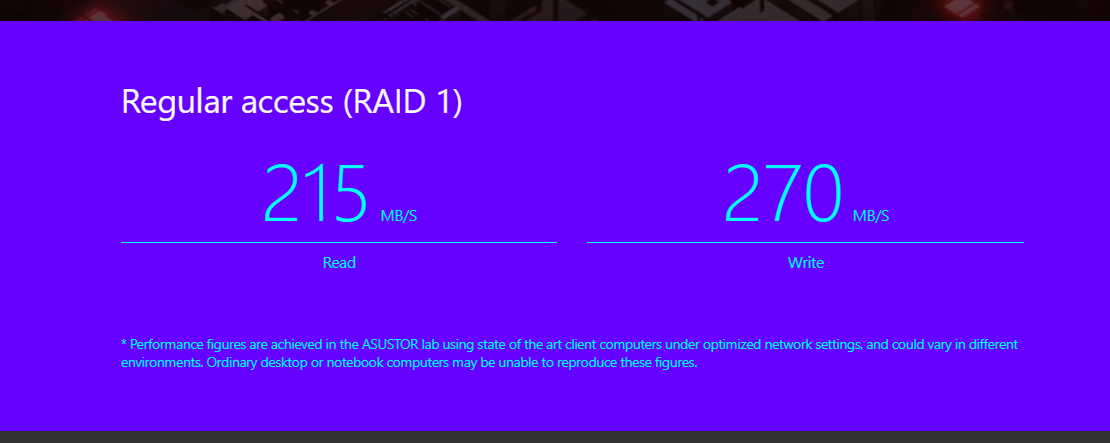

- Volume Type: Single, JBOD, RAID 0, RAID 1
- Support for Online RAID Level Migration
- Support for Online RAID Capacity Expansion
* iSCSI/IP-SAN
- Maximum Targets: 256
- Maximum LUNs: 265
- Maximum Snapshot Versions of a Single LUN: 256
- Target Masking
- LUN Mapping
- ISO File Mounting
- Supports MPIO
- Persistent (SCSI-3) Reservations
* Disk Management
- Scheduled Bad Block Scans
- Scheduled S.M.A.R.T Scans
Access & Security
* Access Control
- Maximum Number of Users: 4096
- Maximum Number of Groups: 512
- Maximum Number of Shared Folders: 512
- Maximum Number of Concurrent Connections: 512
- Supports Windows Active Directory
- Supports Windows Active Directory / LDAP
* ACL
- Provides both Windows ACL and Linux ACL permission configuration methods
- Can enable Windows ACL for specific shared folders
- Comprehensive support for Windows’ 13 types of advanced permission settings
- Can view Windows ACL permission settings from within ADM
- Supports local users and groups
- Exclusive permission reset function allows users to quickly restore default permissions
* System Administration
- Log Type: System Log, Connection Log, File Access Log
- Real-time Online User Monitor
- Real-time System Monitor
- User Quota
- Virtual Drive (ISO Mounting, Maximum 16)
- UPS Support
* Security
- AES 256-Bit Encryption
- Firewall: Prevent Unauthorized Access
- Alert Notifications: E-mail, SMS
- Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
- Built-in Hardware Encryption Engine
* Network Defender
- Auto black list
- Trusted list
- Black/White list
- Supports IP/IP range/geolocation
Backup
* Backup Solutions
- Rsync (Remote Sync) Backup
- Cloud Backup
- FTP Backup
- External Backup
- EZ Sync
SMB Backup
* Snapshots
- iSCSI Snapshots
- Support up to 256 Snapshots
Others
* ASUSTOR Hightlight
- System Migration
- EZ Connect
- Dr. ASUSTOR
- 2-way Backup
- Task Monitor
* Eco-Friendly Design
- Auto-Standby for Both Internal and External Disks
- Auto Fan Control
- LED Night Mode
- Power Schedule: On, Off, Restart
* Energy Control
- Configurable Disk Hibernation Wait Time
