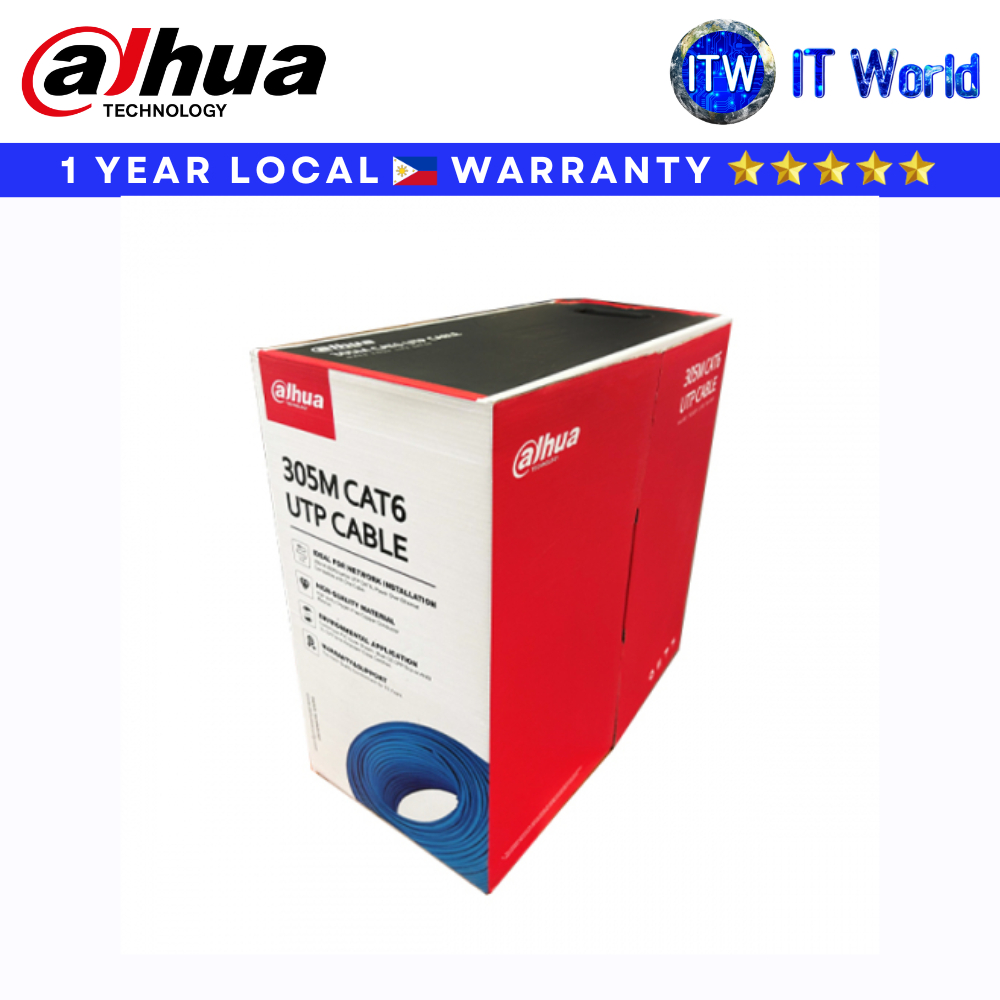

Dahua 305m Roll UTP CAT6 Cable Blue (DH-PFM920I-6UN1-C) | itw

Product Name:

Itw | Dahua 305m Roll UTP CAT6 Cable Blue (DH-PFM920I-6UN1-C)

Model Number: DH-PFM920I-6UN1-C

Cable Length: 305m (1000ft)

Cable Type: UTP CAT6

Conductor: 99.97% Oxygen-Free Copper

Wire Gauge: 24 AWG

Insulation Material: HDPE

Sheath Material: Flame Retardant PVC

Outer Diameter: 5.8mm ± 0.2mm

Separator: PE translucent 4.3 × 0.35 mm

Rip Cord: Nylon 450D

Cable Color: Blue

Compatibility: Power over Ethernet (PoE)

Electrical Performance:

Max DC Resistance: 9Ω/100m

Insulation Resistance: ≥5000 MΩ·km

Impedance: 100 ± 15Ω

Near End Crosstalk: ≥39.3 dB/100m @250 MHz

Max Attenuation: 34.8 dB/100m @250 MHz

Return Loss: ≥17.3 dB/100m @250 MHz

Dielectric Strength: No breakdown at 1KV DC for 1 minute

Mechanical & Environmental:

Tensile Strength: Sheath ≥13.5 MPa / Insulation ≥16 MPa

Elongation at Break: Sheath ≥150% / Insulation ≥300%

Operating Temp: –20°C to +60°C

Installation Temp: 0°C to +50°C

Storage Temp & Humidity: –10°C to +40°C / <60% RH

Fire Rating: IEC 60332-1-2 Compliant
