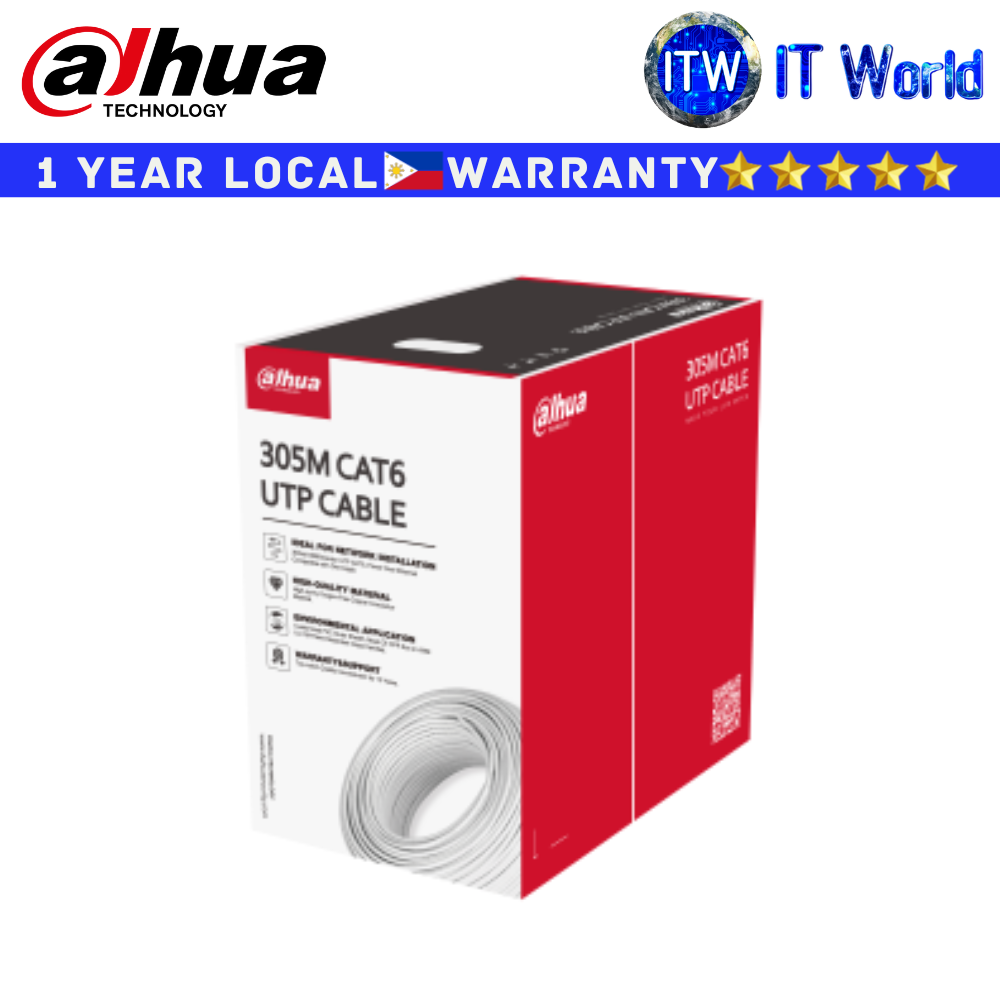

Itw | Dahua 305m CAT6 UTP White Cable (DH-PFM920I-6UN-CN)

Product Name: Itw | Dahua 305m CAT6 UTP White Cable (DH-PFM920I-6UN-CN)

DH-PFM920I-6UN-CN

UTP CAT6 Cable

> 305 m (1000 ft)/carton UTP CAT6, power over Ethernet, compatible with one cable

> High-purity oxygen-free copper conductor

> Customized PVC outer sheath; Have certain flame retardant properties

> Meet ANSI TIA 568C.2 and CPR Eca standards

Specification

*Conductor

Material: Oxygen free copper (99.95% purity)

Diameter: 0.53 mm ± 0.02mm（0.02" ± 0.0007"

*Insulation

Material: HDPE

Diameter: 0.94 mm ± 0.05mm（0.04" ± 0.0020")

Color (4 Pairs): Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown

*Separator

Material: PE

*Sheath

Material: PVC

Min. Average Thickness: 0.5 mm(0.02")

Diameter: 5.8mm ± 0.03 mm(0.23"± 0.0012")

Color: Grey RAL7046

*Electrical

Max. DC Resistance of a Single Conductor: 9.0Ω/100 m

Unbalanced capacitance to ground: ≤160pF/100m

Max. DC Resistance Unbalance: 2% (pair intra), 4% (pairs inter)

Cable to Capacitance: ≤5.6nF/100m

*Transmission

Characteristic Impedance: 100 ± 15Ω

*Mechanical

Tensile Strength: Sheath≥13.5 MPa

Elongation at Break: Sheath≥150%, insulation≥300%

Installation Bending Radius -20℃, 4h: >8 times of outer cable diameter

Conductor Elongation at Break: ≥10%

*Environmental

Shrinkage of Insulation: ≤5%

Sheath Tensile Strength and Elongation at Break after Aging: ≥12.5 MPa, ≥125%

Low Temperature Bending Test: No cracking after the test

Heat Shock Test: No cracking after the test

Operating Temperature: –20°C to +75°C (–4°F to 167°F)

Storage Temperature and Humidity: –10°C to +40°C (14°F to 104°F), <60% (RH)

*Packaging

Cable Length: 305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)

Inner Carton Dimensions: 416.0 mm × 412.0 mm × 220.0 mm (16.37" × 16.22" × 8.66") (L × W × H)

Packaging Method: 305.0 m (1000.66 ft) a carton

Net Weight: 11.6±0.6kg(25.57 lb)

Gross Weight: 12.5±0.6kg(27.55lb)
