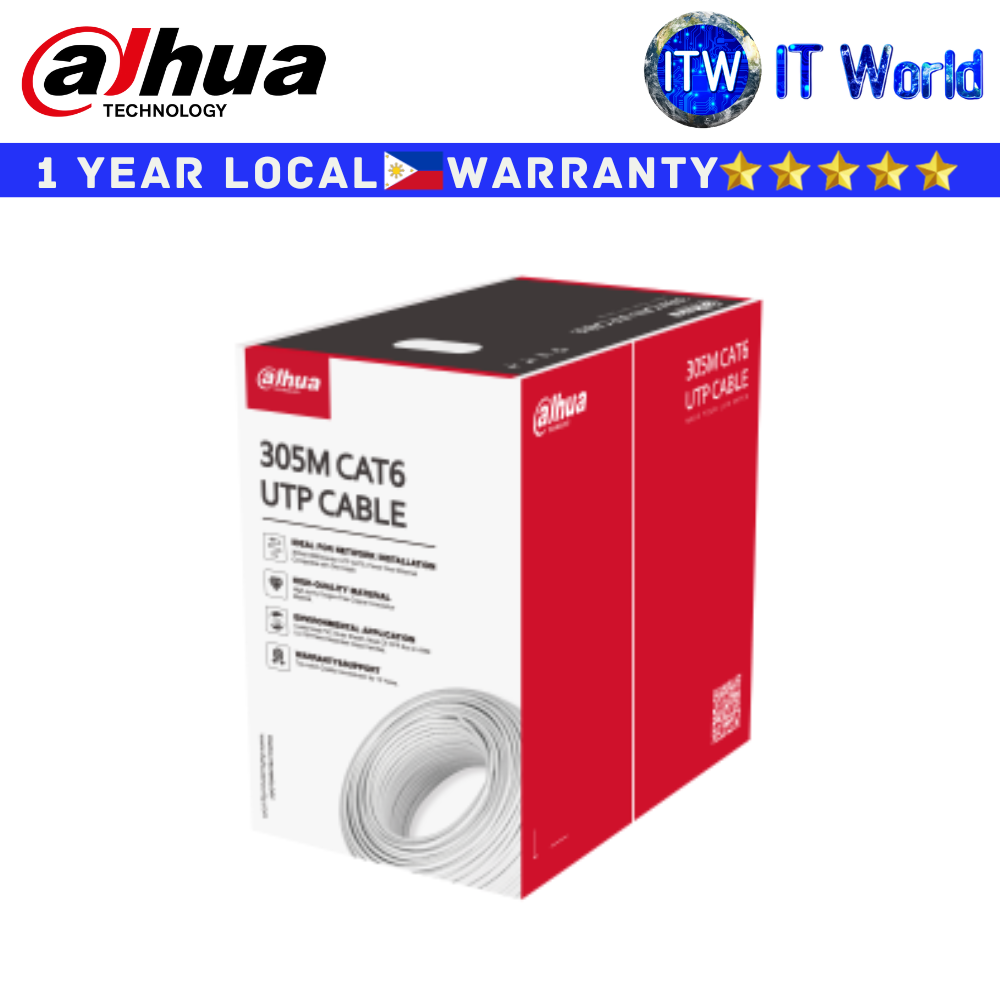

Product Name: Itw | Dahua 305m CAT6 UTP White Cable (DH-PFM920I-6UN-CN)
DH-PFM920I-6UN-CN
UTP CAT6 Cable
> 305 m (1000 ft)/carton UTP CAT6, power over Ethernet, compatible with one cable
> High-purity oxygen-free copper conductor
> Customized PVC outer sheath; Have certain flame retardant properties
> Meet ANSI TIA 568C.2 and CPR Eca standards
Specification
*Conductor
Material: Oxygen free copper (99.95% purity)
Diameter: 0.53 mm ± 0.02mm（0.02" ± 0.0007"
*Insulation
Material: HDPE
Diameter: 0.94 mm ± 0.05mm（0.04" ± 0.0020")
Color (4 Pairs): Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown
*Separator
Material: PE
*Sheath
Material: PVC
Min. Average Thickness: 0.5 mm(0.02")
Diameter: 5.8mm ± 0.03 mm(0.23"± 0.0012")
Color: Grey RAL7046
*Electrical
Max. DC Resistance of a Single Conductor: 9.0Ω/100 m
Unbalanced capacitance to ground: ≤160pF/100m
Max. DC Resistance Unbalance: 2% (pair intra), 4% (pairs inter)
Cable to Capacitance: ≤5.6nF/100m
*Transmission
Characteristic Impedance: 100 ± 15Ω
*Mechanical
Tensile Strength: Sheath≥13.5 MPa
Elongation at Break: Sheath≥150%, insulation≥300%
Installation Bending Radius -20℃, 4h: >8 times of outer cable diameter
Conductor Elongation at Break: ≥10%
*Environmental
Shrinkage of Insulation: ≤5%
Sheath Tensile Strength and Elongation at Break after Aging: ≥12.5 MPa, ≥125%
Low Temperature Bending Test: No cracking after the test
Heat Shock Test: No cracking after the test
Operating Temperature: –20°C to +75°C (–4°F to 167°F)
Storage Temperature and Humidity: –10°C to +40°C (14°F to 104°F), <60% (RH)
*Packaging
Cable Length: 305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)
Inner Carton Dimensions: 416.0 mm × 412.0 mm × 220.0 mm (16.37" × 16.22" × 8.66") (L × W × H)
Packaging Method: 305.0 m (1000.66 ft) a carton
Net Weight: 11.6±0.6kg(25.57 lb)
Gross Weight: 12.5±0.6kg(27.55lb)
