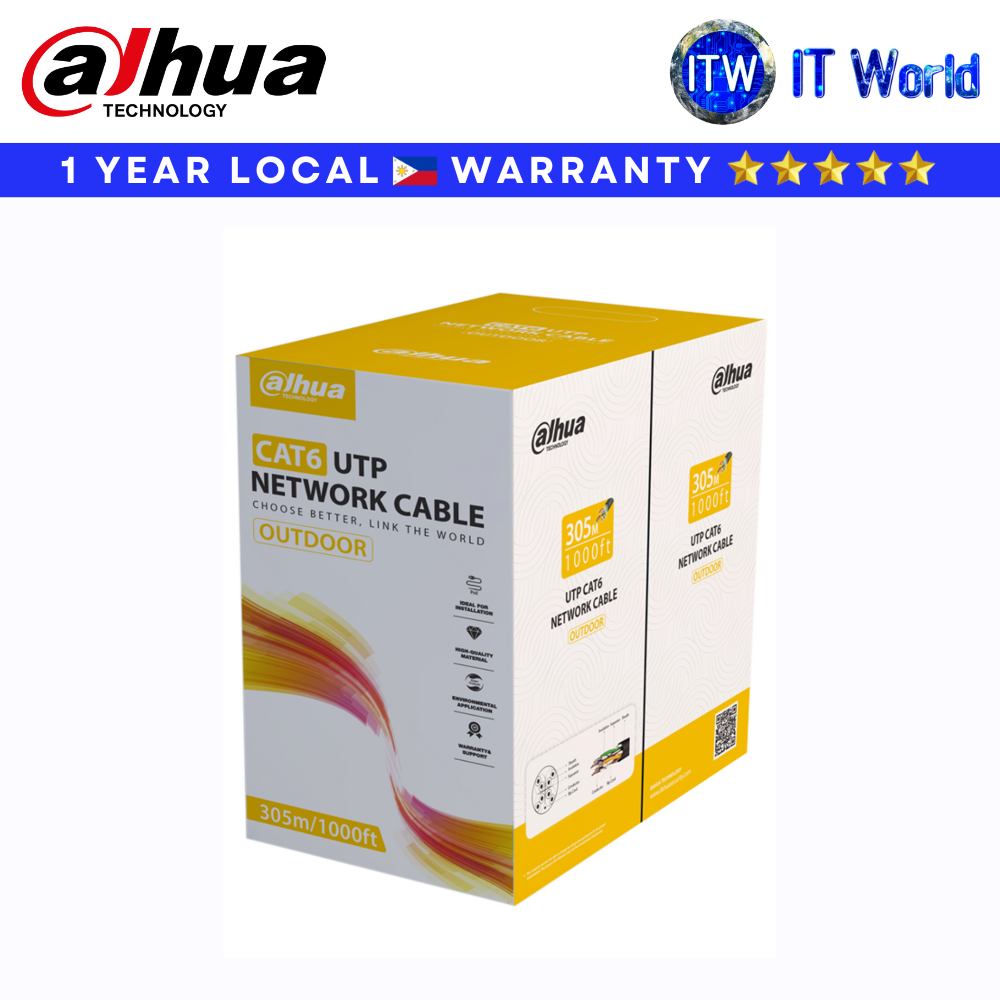

Itw | Dahua 305m Outdoor U/UTP CAT6 Network Cable – Black PE Sheath (DH-PFM920-6UN)

Product Name:

Itw | Dahua 305m Outdoor U/UTP CAT6 Network Cable – Black PE Sheath (DH-PFM920-6UN)

Model Number: DH-PFM920-6UN

Cable Length: 305m (1000 ft)

Type: Outdoor U/UTP CAT6

Conductor: 99.97% Oxygen-Free Copper

Conductor Size: 0.53 mm ± 0.02 mm

Wire Gauge: 24 AWG

Insulation Material: HDPE

Insulation Diameter: 0.95 mm ± 0.06 mm

Outer Sheath: Black MDPE, waterproof rated

Outer Diameter: 6.8 mm ± 0.4 mm

Inner Sheath: PVC (White), Diameter: 5.6 mm ± 0.4 mm

Separator: PE (4.3 mm × 0.35 mm)

Rip Cord: Polyester 3 × 150D

Environmentally Friendly: RoHS Compliant

Electrical Specs:

Max DC Resistance: 9.5 Ω/100m

Insulation Resistance: ≥5000 MΩ·km

Resistance Unbalance: ≤2% (intra-pair), ≤4% (inter-pair)

Dielectric Strength: 1kV DC for 1 min

Characteristic Impedance: 100 ± 15Ω

Near-End Crosstalk: ≥39.30 dB/100m @250 MHz

Attenuation: ≤34.8 dB/100m @250 MHz

Return Loss: ≥17.3 dB/100m @250 MHz

Mechanical & Environmental:

Tensile Strength: Sheath ≥13.5 MPa / Insulation ≥16 MPa

Elongation at Break: Sheath ≥150% / Insulation ≥300%

Temperature Range:

Operating: –20°C to +60°C

Installation: 0°C to +50°C

Storage: –10°C to +40°C

Humidity: <60% RH

Flame Rating: IEC 60332-1-2 Compliant

Aging & Heat Shock Tested: No cracking
