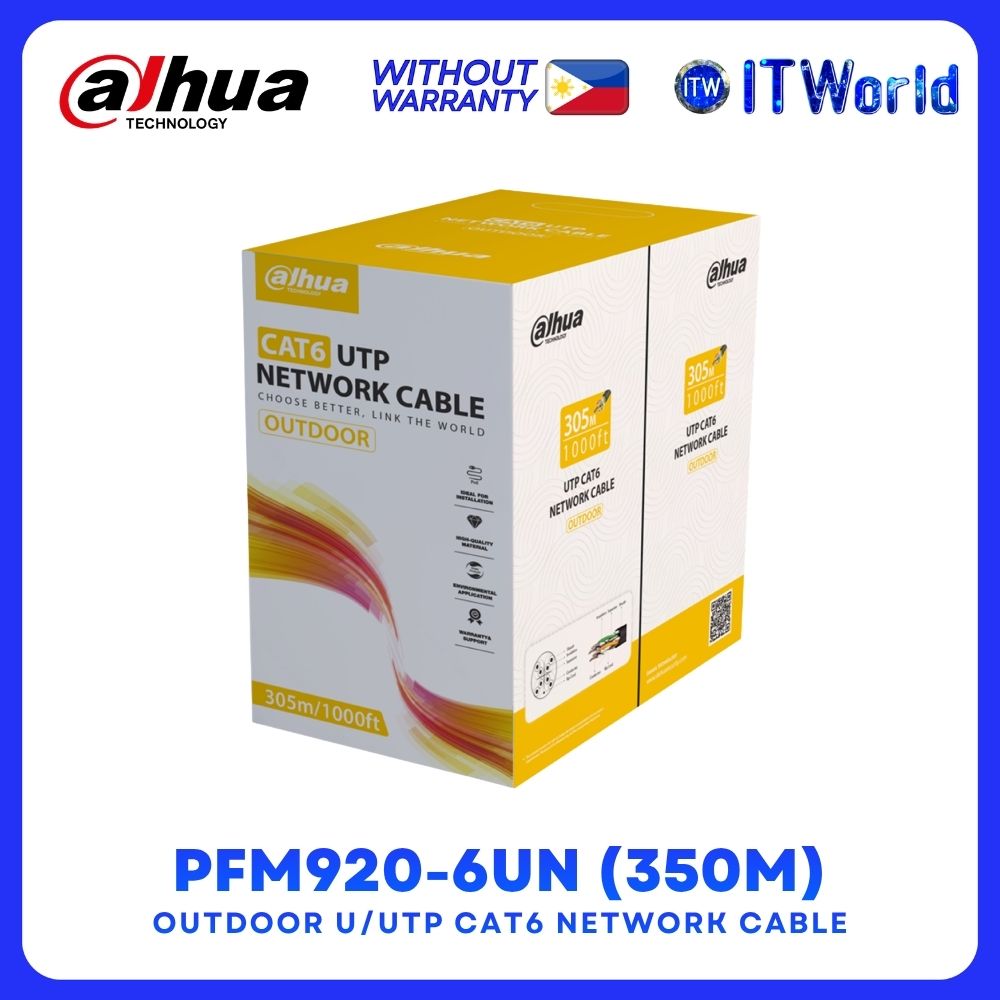

Build reliable outdoor networking with the Dahua PFM920-6UN CAT6 Cable—engineered for stable data transmission, durability, and PoE-ready installations. 🌐🔧
🔹 📏 Long-Distance Coverage
305 meters (1000 ft) per carton
Ideal for structured cabling and extended network runs
🔹 ⚡ CAT6 Performance
100Ω ±15Ω impedance for stable transmission
Supports Power over Ethernet (PoE)
Designed for ≤100m system cabling applications
🔹 🧲 High-Purity Copper Core
99.97% oxygen-free copper (OFC) conductor
24AWG with 0.53 mm ±0.02 mm structure
Ensures efficient signal conductivity and minimal loss
🔹 💧 Outdoor-Ready Protection
PE outer sheath with waterproof capability
Durable MDPE jacket (Black) for outdoor environments
🔹 🌱 Eco-Friendly Build
RoHS compliant materials
Safe and environmentally responsible construction
🔹 🧱 Robust Construction
4 twisted pairs with HDPE insulation
مقاust tensile strength and flexibility
Bending radius: >8× cable diameter
🔹 🌡️ Wide Operating Range
Operating temperature: -20°C to +60°C
Designed for harsh outdoor conditions
🔹 📊 Electrical & Transmission Specs
Max DC resistance: 9.5Ω/100m
Insulation resistance: ≥5000 MΩ·km
Near-end crosstalk: ≥39.30 dB @250MHz
Max attenuation: 34.8 dB @250MHz
🔹 📦 Packaging Details
305m cable per carton (2 inner cartons)
Net weight: 13.5 kg ±0.6 kg
Gross weight: 14.5 kg ±0.6 kg
📦 Product SKU: DH-PFM920-6UN
⚠️ Reminders:
1️⃣ Please record a full unboxing video as proof in case of issues.
2️⃣ Verify the delivery rider’s ID or take a photo with your payment for security.
✔️ Ideal for CCTV setups, outdoor networking, and professional structured cabling systems.
