Dahua CCTV Security Camera Picoo B1 5MP Outdoor Fixed-focal Wi-Fi Pan & Tilt (DH-P5B-PV) | itw

Product Name: Itw | Dahua CCTV Security Camera Picoo B1 5MP Outdoor Fixed-focal Wi-Fi Pan & Tilt (DH-P5B-PV)

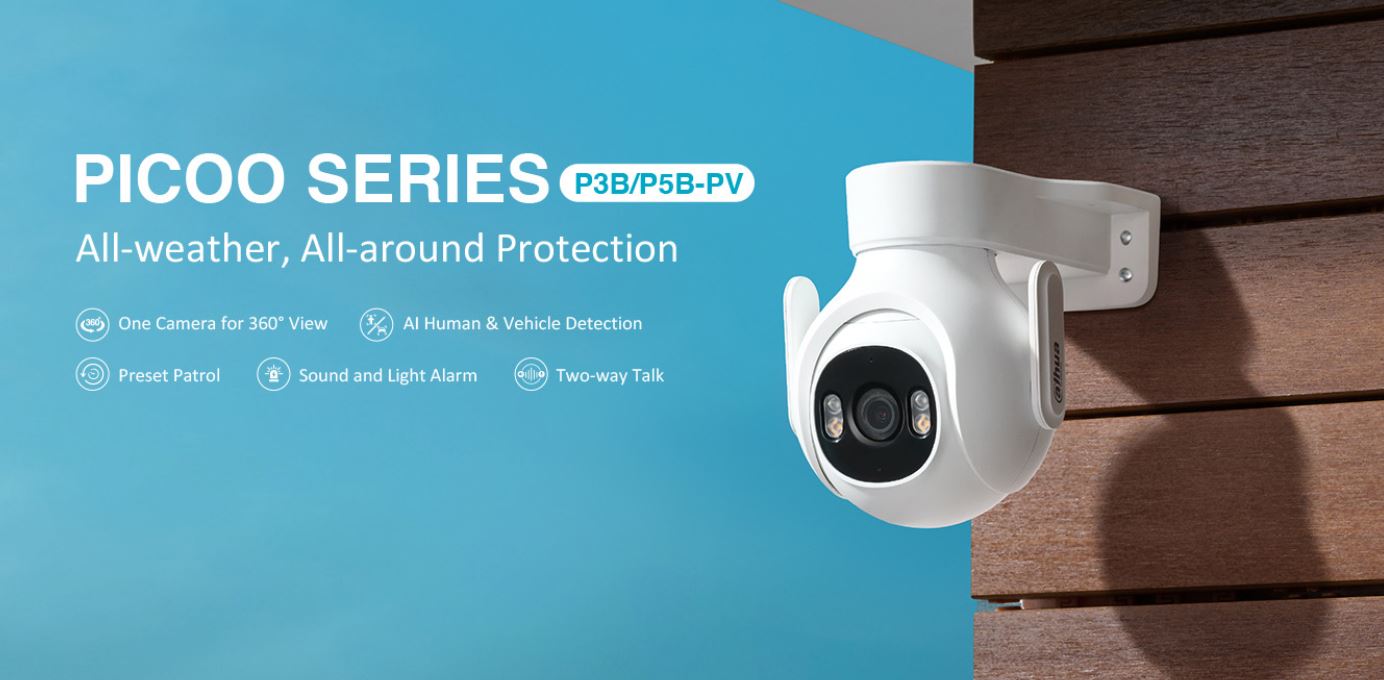

Series Overview

> The Picoo series of small PT cameras raises the bar on performance. After detecting an intrusion, it triggers sound and light alarms, and then instantly relays vital information on the intrusion to the mobile client, keeping you informed no matter where you are. It supports two-way talk, allowing you to communicate with people in front of the camera in real time. It also can record full-color videos and information of key events using Smart Dual Illuminators, effectively reducing light pollution.

Specification

Camera

* Image Sensor: 1/3" CMOS

* Max. Resolution: 2880 (H) × 1620 (V)

* Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

* Illumination Distance: Up to 30 m (98.43 ft) (IR); up to 30 m (98.43 ft) (Warm Light)

* Illuminator On/Off Control: Auto

* Illuminator Number: 2 (IR LED); 2 (Warm light)

* Angle Adjustment: Pan: 0°–355°; Tilt: 0°–90°

Lens

* Max. Aperture: F1.6

* Field of View: H: 78°; V: 40°; D: 93°

Intelligence

* Vehicle Detection: Yes

* Human Detection: Yes

Video

* Video Compression: H.265

* Video Frame Rate

> Main stream: 2880 × 1620@(1-25/30 fps)

> sub stream: 640 × 360@(1-25/30 fps)

> *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

* Resolution: 5M (2880 × 1620); nHD (640 × 360)

* Video Bit Rate: H.265: 80 kbps–4096 kbps

* Day/Night: Auto(ICR)/Color/B/W

* WDR: DWDR

* Motion Detection: Yes

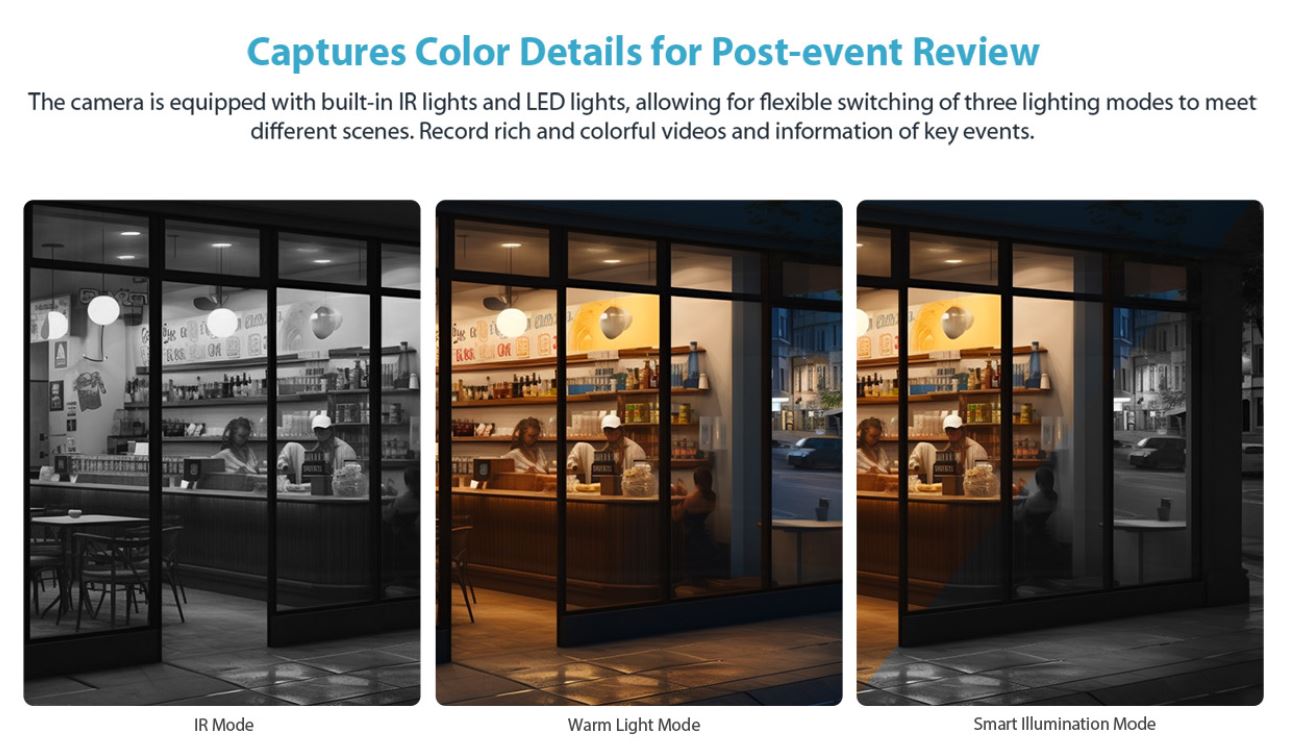

* Smart Illumination: Yes

* Image Rotation: 0°/180°

Audio

* Built-in MIC: Yes, built-in Mic

* Built-in Speaker: Yes, built-in speaker

* Audio Compression: G.711a

Network

* Network Port: RJ-45 (10/100 Base-T)

* Wi-Fi: IEEE 802.11b/g/n/ax 2.412-2.472 GHz, 2.4 G

* Storage: Micro SD card (up to 256 GB)

* Management Software: DMSS

* Mobile Client: iOS; Android

Certification

* Certifications: CE

Power

* Power Supply: 12 VDC, 1 A

* Power Consumption

> Basic: 1.68 W

> Max.: 4.56 W (H.265+warm light on)

Environment

* Operating Temperature: –20 °C to +50 °C (–4 °F to +122 °F)

* Operating Humidity: ≤95%

Structure

* Casing Material: Plastic

* Product Dimensions (L × W × H): 116 mm × 138 mm × 139 mm (4.57" × 5.43" × 5.47")

* Net Weight: 425 g (0.94 lb)
