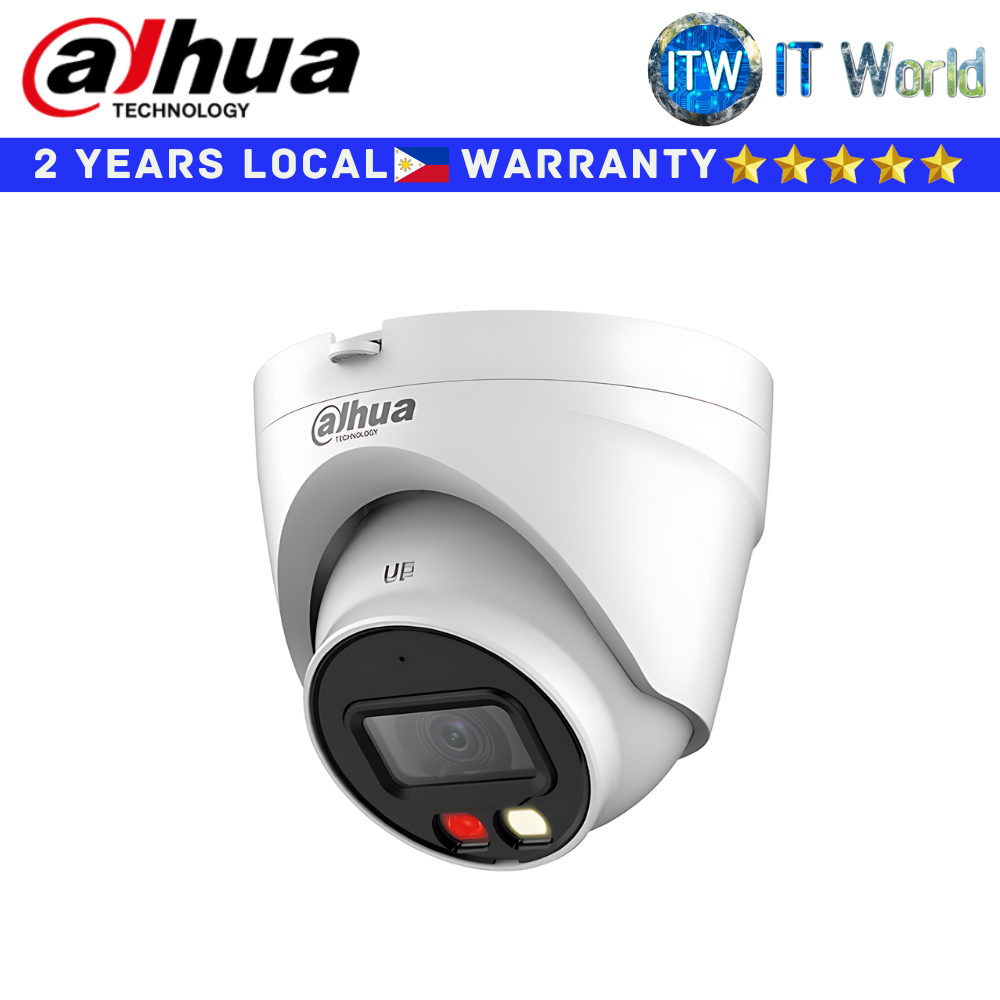

Product Name: Itw | Dahua CCTV Security Camera 4MP Entry Smart Dual Light Fixed-focal Eyeball (DH-IPC-HDW1439V-A-IL-0280B)
Specification
Camera
• Image Sensor: 1/2.9" CMOS
• Max. Resolution: 2560 (H) × 1440 (V)
• ROM: 128 MB
• RAM: 128 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
• 0.006 lux@F1.6 (Color,30 IRE)
• 0.0006 lux@F1.6 (B/W,30 IRE)
• 0 lux (Illuminator on)
S/N Ratio: >56 dB
Illumination Distance
- Up to 30 m (98.43 ft) (IR LED)
- Up to 30 m (98.43 ft) (Warm light)
• Illuminator On/Off Control: Auto;Manual
• Illuminator Number: 1 (IR LED); 1 (Warm light)
Angle Adjustment
- Pan: 0°–360°
- Tilt: 0°–78°
- Rotation: 0°–360°
Lens
- Lens Type: Fixed-focal
- Lens Mount: M12
- Focal Length: 2.8 mm;3.6 mm
- Max. Aperture: F1.6
Field of View
- 2.8 mm: H: 94°; V: 52°; D: 111°
- 3.6 mm: H: 78°; V: 41°; D: 94°
• Iris Control: Fixed
Close Focus Distance
- 2.8 mm: 1.1 m (3.61 ft)
- 3.6 mm: 1.7 m (5.58 ft)
DORI Distance
Lens
- 2.8 mm
- 3.6 mm
Detect
- 64.0 m (209.97 ft)
- 85.4 m (280.18 ft)
Observe
- 25.6 m (83.98 ft)
- 34.2 m (112.20 ft)
Recognize
- 12.8 m (41.99 ft)
- 17.1 m (56.10 ft)
Identify
- 6.4 m (21.00 ft)
- 8.5 m (27.89 ft)
Intelligence
• Human Detection: Support the classification and accurate detection of human
• Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
• Smart Codec Smart: H.265+; Smart H.264+
• Video Frame Rate: Main stream: 2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
• Stream Capability: 2 streams
Resolution
- 4M (2560 × 1440);
- 3M (2304 × 1296);
- 1080p (1920 × 1080);
- 1.3M (1280 × 960);
- 720p (1280 × 720);
- D1 (704 × 576/704 × 480);
- VGA (640 × 480);
- CIF (352 × 288/352 × 240)
• Bit Rate Control: CBR/VBR
Video Bit Rate
- H.264: 32 kbps–4096 kbps
- H.265: 12 kbps–4096 kbps
• Day/Night: Auto(ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 120 dB
White Balance
- Auto;
- natural;
- street lamp;
- outdoor;
- manual;
- regional custom
• Gain Control: Auto; Manual
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Region of Interest (RoI): Yes (4 areas)
• Smart Illumination: Yes
• Image Rotation: 0°/180°
• Mirror: Yes
• Privacy Masking: 4 areas
Audio
- Built-in MIC: Yes, built-in Mic
- Audio Compression: G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event
• Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception
Network
• Network Port RJ-45 (10/100 Base-T)
• SDK and API Yes
Network Protocol
• IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
• Interoperability: ONVIF (Profile S; Profile T); CGI
• User/Host: 6 (Total bandwidth: 24 M)
• Storage: FTP
• Browser: IE; Chrome; Firefox
• Management Software: Smart PSS Lite; DSS; DMSS
• Mobile Client: iOS;Android
