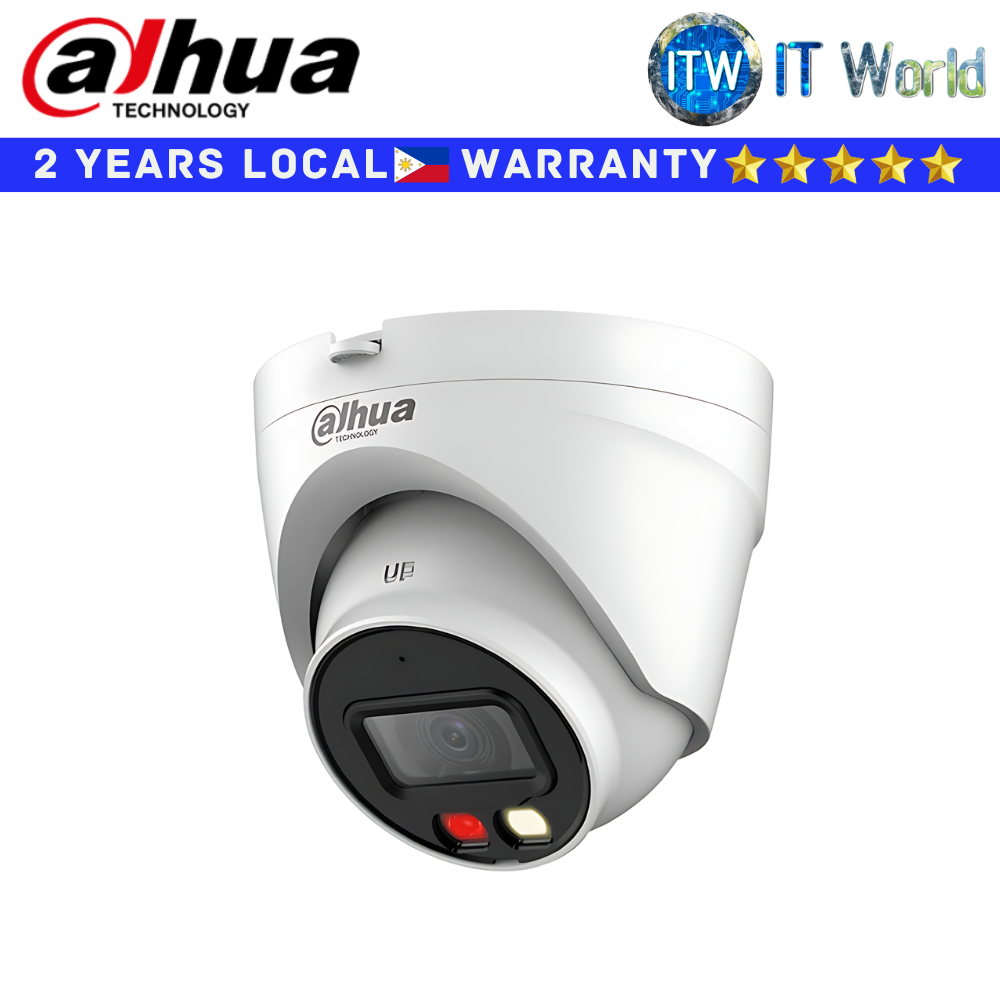

Product Name: Itw | Dahua CCTV Security Camera 2MP Entry Smart Dual Light Fixed-focal Eyeball (DH-IPC-HDW1239V-A-IL-0280B)
Specification
Camera
• Image Sensor: 1/2.8" CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• ROM: 128 MB
• RAM: 128 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
- 0.005 lux@F1.6 (Color,30 IRE)
- 0.0005 lux@F1.6 (B/W,30 IRE)
- 0 lux (Illuminator on)
• S/N Ratio: >56 dB
Illumination Distance
- Up to 30 m (98.43 ft) (IR LED)
- Up to 30 m (98.43 ft) (Warm light)
• Illuminator On/Off Control: Auto;Manual
• Illuminator Number: 1 (IR LED); 1 (Warm light)
Angle Adjustment
- Pan: 0°–360°
- Tilt: 0°–78°
- Rotation: 0°–360°
Lens
• Lens Type Fixed-focal
• Lens Mount M12
• Focal Length 2.8 mm;3.6 mm
• Max. Aperture F1.6
Field of View
- 2.8 mm: H: 104°; V: 55°; D: 124°
- 3.6 mm: H: 88°; V: 44°; D: 105
Iris Control: Fixed
Close Focus Distance
- 2.8 mm: 0.8 m (2.62 ft)
- 3.6 mm: 1.3 m (4.27 f)
DORI Distance
Lens
- 2.8 mm
- 3.6 mm
Detect
- 44.1 m (144.69 ft)
- 58.9 m (193.24 ft)
Observe
- 17.7 m (58.07 ft)
- 23.6 m (77.43 ft)
Recognize
- 8.8 m (28.87 ft)
- 11.8 m (38.71 ft)
Identify
- 4.4 m (14.44 ft)
- 5.9 m (19.36 ft)
Intelligence
• Human Detection: Support the classification and accurate detection of human
• Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
• Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
• Smart Codec Smart H.265+; Smart H.264+
• Video Frame Rate: Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
• Stream Capability: 2 streams
Resolution
- 1080p (1920 ×1080);
- 1.3M (1280 × 960);
- 720p (1280 × 720);
- D1 (704 × 576/704 × 480);
- VGA (640 × 480);
- CIF (352 × 288/352 × 240)
• Bit Rate Control: CBR/VBR
Video Bit Rate
- H.264: 32 kbps–4096 kbps
- H.265: 12 kbps–4096 kbps
• Day/Night: Auto(ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: DWDR
• White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control: Auto;Manual
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Region of Interest (RoI): Yes (4 areas)
• Smart Illumination: Yes
• Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
• Mirror: Yes
• Privacy Masking: 4 areas
Audio
• Built-in MIC: Yes, built-in Mic
• Audio Compression: G.711a; G.711Mu; PCM; G.726
Alarm
• Alarm Event: Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception
Network
• Network Port: RJ-45 (10/100 Base-T)
• SDK and API: Yes
• Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
• Interoperability: ONVIF (Profile S; Profile T); CGI
• User/Host: 6 (Total bandwidth: 24 M)
• Storage: FTP
• Browser: IE; Chrome; Firefox
• Management Software: Smart PSS Lite; DSS; DMSS
• Mobile Client: iOS;Android
