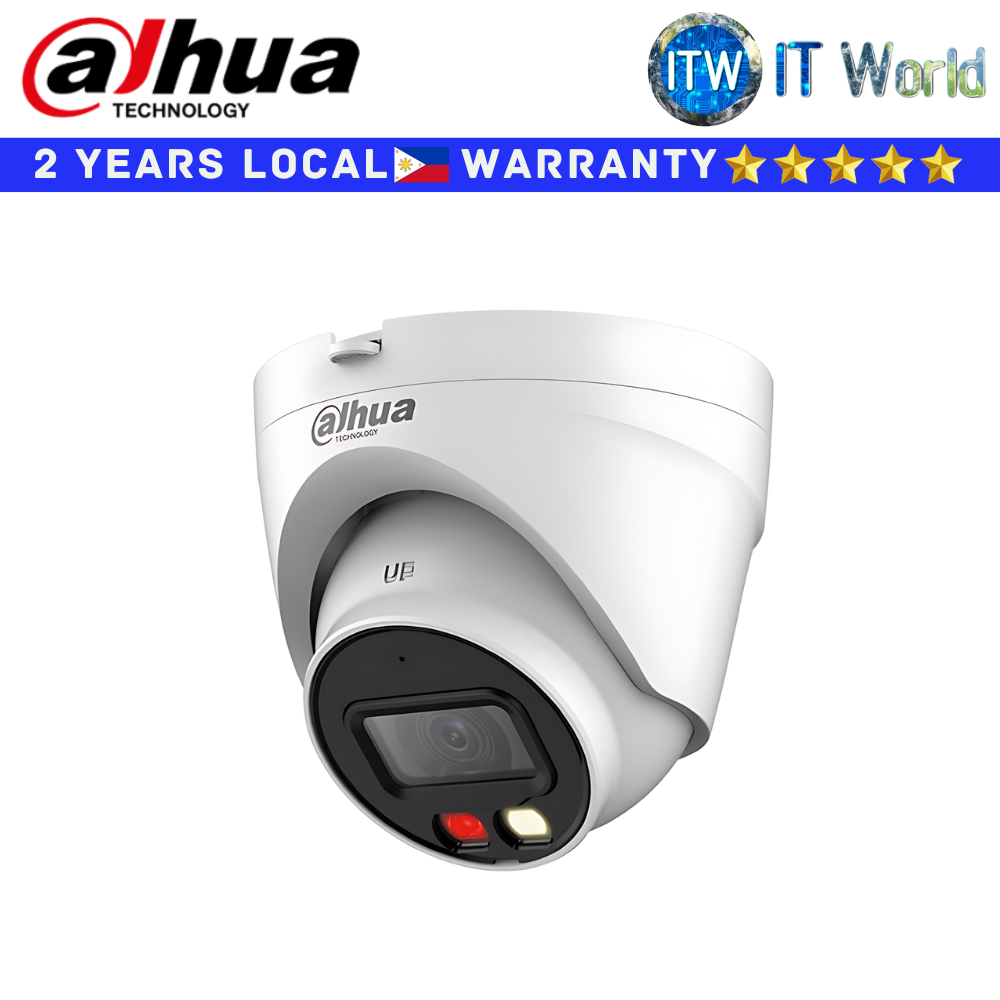

Dahua CCTV Security Camera 2MP Entry Smart Dual Light Fixed-focal Eyeball (DH-IPC-HDW1239V-A-IL-0280B)

Product Name: Itw | Dahua CCTV Security Camera 2MP Entry Smart Dual Light Fixed-focal Eyeball (DH-IPC-HDW1239V-A-IL-0280B)

Specification

Camera

• Image Sensor: 1/2.8" CMOS

• Max. Resolution: 1920 (H) × 1080 (V)

• ROM: 128 MB

• RAM: 128 MB

• Scanning System: Progressive

• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

- 0.005 lux@F1.6 (Color,30 IRE)

- 0.0005 lux@F1.6 (B/W,30 IRE)

- 0 lux (Illuminator on)

• S/N Ratio: >56 dB

Illumination Distance

- Up to 30 m (98.43 ft) (IR LED)

- Up to 30 m (98.43 ft) (Warm light)

• Illuminator On/Off Control: Auto;Manual

• Illuminator Number: 1 (IR LED); 1 (Warm light)

Angle Adjustment

- Pan: 0°–360°

- Tilt: 0°–78°

- Rotation: 0°–360°

Lens

• Lens Type Fixed-focal

• Lens Mount M12

• Focal Length 2.8 mm;3.6 mm

• Max. Aperture F1.6

Field of View

- 2.8 mm: H: 104°; V: 55°; D: 124°

- 3.6 mm: H: 88°; V: 44°; D: 105

Iris Control: Fixed

Close Focus Distance

- 2.8 mm: 0.8 m (2.62 ft)

- 3.6 mm: 1.3 m (4.27 f)

DORI Distance

Lens

- 2.8 mm

- 3.6 mm

Detect

- 44.1 m (144.69 ft)

- 58.9 m (193.24 ft)

Observe

- 17.7 m (58.07 ft)

- 23.6 m (77.43 ft)

Recognize

- 8.8 m (28.87 ft)

- 11.8 m (38.71 ft)

Identify

- 4.4 m (14.44 ft)

- 5.9 m (19.36 ft)

Intelligence

• Human Detection: Support the classification and accurate detection of human

• Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

• Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

• Smart Codec Smart H.265+; Smart H.264+

• Video Frame Rate: Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

• Stream Capability: 2 streams

Resolution

- 1080p (1920 ×1080);

- 1.3M (1280 × 960);

- 720p (1280 × 720);

- D1 (704 × 576/704 × 480);

- VGA (640 × 480);

- CIF (352 × 288/352 × 240)

• Bit Rate Control: CBR/VBR

Video Bit Rate

- H.264: 32 kbps–4096 kbps

- H.265: 12 kbps–4096 kbps

• Day/Night: Auto(ICR)/Color/B/W

• BLC: Yes

• HLC: Yes

• WDR: DWDR

• White Balance: Auto; natural; street lamp; outdoor; manual; regional custom

• Gain Control: Auto;Manual

• Noise Reduction: 3D NR

• Motion Detection: OFF/ON (4 areas, rectangular)

• Region of Interest (RoI): Yes (4 areas)

• Smart Illumination: Yes

• Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

• Mirror: Yes

• Privacy Masking: 4 areas

Audio

• Built-in MIC: Yes, built-in Mic

• Audio Compression: G.711a; G.711Mu; PCM; G.726

Alarm

• Alarm Event: Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception

Network

• Network Port: RJ-45 (10/100 Base-T)

• SDK and API: Yes

• Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

• Interoperability: ONVIF (Profile S; Profile T); CGI

• User/Host: 6 (Total bandwidth: 24 M)

• Storage: FTP

• Browser: IE; Chrome; Firefox

• Management Software: Smart PSS Lite; DSS; DMSS

• Mobile Client: iOS;Android
