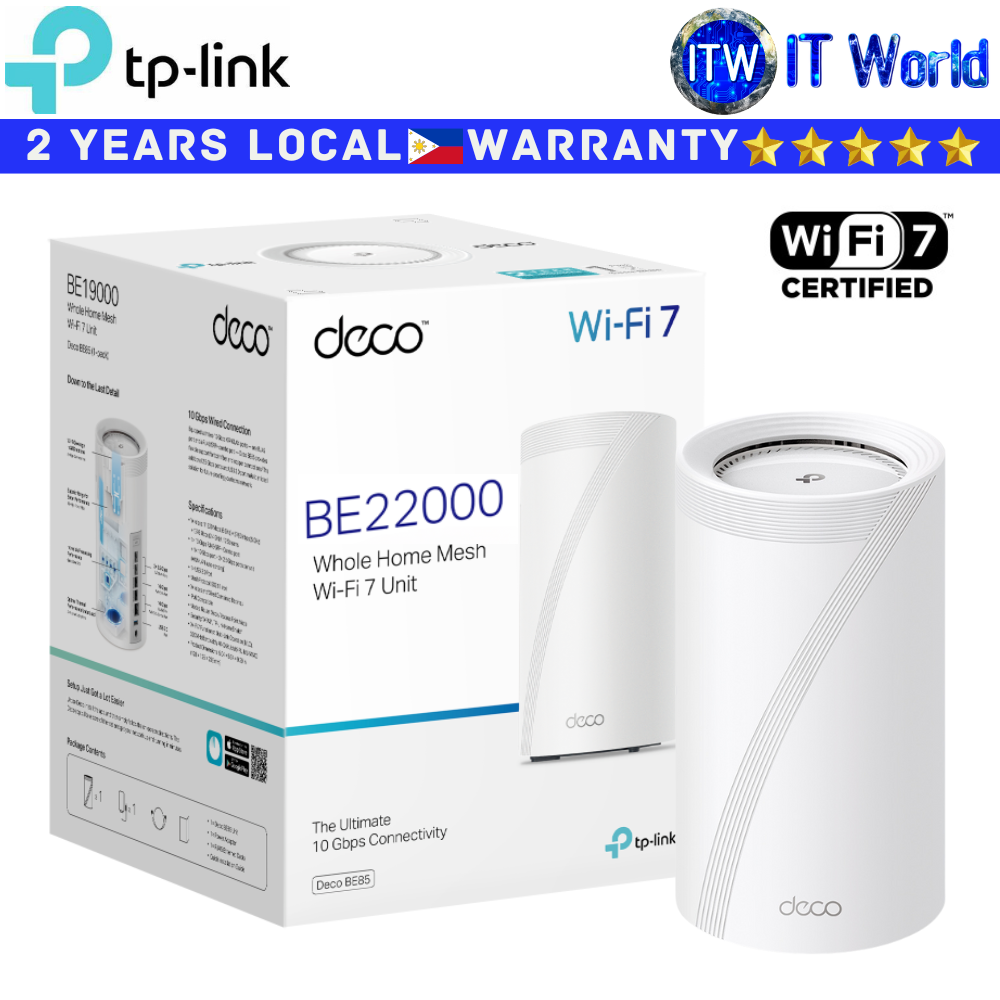

Product Name: Itw | TP-Link Mesh Wifi System Deco BE85 BE22000 Tri-Band Home Mesh Wifi 7 (1pack | 2pack | 3pack)
Specification
Wireless
* Standards
> Wi-Fi 7
- IEEE 802.11be/ax 6GHz
- IEEE 802.11be/ax/ac/n/a 5GHz
- IEEE 802.11be/ax/n/b/g 2.4GHz
* WiFi Speeds BE22000
> 6GHz: 11530Mbps (802.11be)
> 5GHz: 8647Mbps (802.11be)
> 2.4GHz: 1376Mbps (802.11be)
* WiFi Range
> Broader Whole Home Coverage
- TP-Link Mesh Technology
- Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
> AI-Driven Mesh
- Intelligently learns the network environment to provide ideal Wi-Fi unique to your home
> 8× High-Gain Antennas (Internal)
- Multiple antennas form a signal-boosting array to cover more directions and large areas
> Tri-Band
- The greenfield 6 GHz band brings more bandwidth and faster speeds
* WiFi Capacity
> Very High
- Tri-Band
- Distribute devices to different bands for optimal performance
> 4×4 MU-MIMO
- Simultaneously communicates with multiple MU-MIMO clients
> OFDMA
- Simultaneously communicates with multiple WiFi7 clients
> 12 Streams
- More than enough bandwidth for connected devices
* Working Modes
> Router Mode
> Access Point Mode
* Advanced Functions
> Multi-Link Operation (MLO)
> 320 MHz Channel
> 4K-QAM
> Multi-RUs
> Works with Alexa and Google Assistant
Security
* Network Security
> SPI Firewall
> Access Control
> HomeShield Security
- Real-Time IoT Protection
- Malicious Site Blocker
- Intrusion Prevention System
- DDoS Attack Prevention
- Home Network Scanner
* Guest Network
> 1×6GHz Guest Network
> 1×5GHz Guest Network
> 1×2.4GHz Guest Network
> Effective Time
> Bandwidth Control
* VPN Server
> OpenVPN Server
> PPTP VPN Server
> L2TP/IPSec VPN Server
* VPN Client
> OpenVPN Client
> PPTP VPN Client
> L2TP/IPSec
* VPN Client
* WiFi Encryption
> WPA-Personal
> WPA2-Personal
> WPA3-Personal
Hardware
> Ethernet Ports
- 1×10Gbps
- 1×10Gbps SFP+/RJ45 Combo
- 2×2.5Gbps
*Per Deco Unit
Supports WAN/LAN auto-sensing
> USB Support 1× USB 3.0 Port
- FTP Server
- Media Server
- Samba Server
> Buttons
- 1× Reset Button
- 1× WPS
Software
* Advanced Features
> Reboot Schedule
> Tapo/Kasa Onboarding
> IoT network & Device Isolation
> Static Route Function
> Node/Band Connection Preference
* Protocols
> IPv4
> IPv6
* Service Kits: HomeShield
* Parental Controls
> HomeShield Parental Controls
- Youtube Restriction
- SafeSearch
- Custom Profiles
- Professional Content Filter Library
- Family Time
- Bedtime
- Off Time
- Time Rewards
- Family Online Time Ranking
- Pause the Internet
- Weekly and Monthly Reports
* WAN Types
> Dynamic IP
> Static IP
> PPPoE
> PPTP
> L2TP
* Quality of Service
> HomeShield QoS
> QoS by Device
* Cloud Service
> OTA Firmware Upgrade
> TP-Link ID
> DDNS
* NAT Forwarding
> Port Forwarding
> UPnP
* IPTV
> IGMP Proxy
> IGMP Snooping
> Bridge
> Tag VLAN
* DHCP
> Address Reservation
> DHCP Client List
> Server
* DDNS: TP-Link
* Management: Deco App
Physical
* Dimensions (W×D×H): 5.04 × 5.04 × 9.29in (128 × 128 × 236mm)
* Package Contents
> Deco BE85 (3-pack)
- 3 Deco BE85 units
- 1 RJ45 Ethernet cable
- 3 Power adapters
- Quick Installation Guide
> Deco BE85 (2-pack)
- 2 Deco BE85 units
- 1 RJ45 Ethernet cable
- 2 Power adapters
- Quick Installation Guide
> Deco BE85 (1-pack)
- 1 Deco BE85 unit
- 1 RJ45 Ethernet cable
- 1 Power adapter
- Quick Installation Guide
OTHERS
* Certifications: CE, FCC, RoHS
* Environment
> Operating Temperature: 0°C~40°C (32 °F~104 °F)
> Storage Temperature: -40°C~60°C (-40 °F~140 °F)
> Operating Humidity: 10%~90% RH
> Storage Humidity: 5%~90% RH
