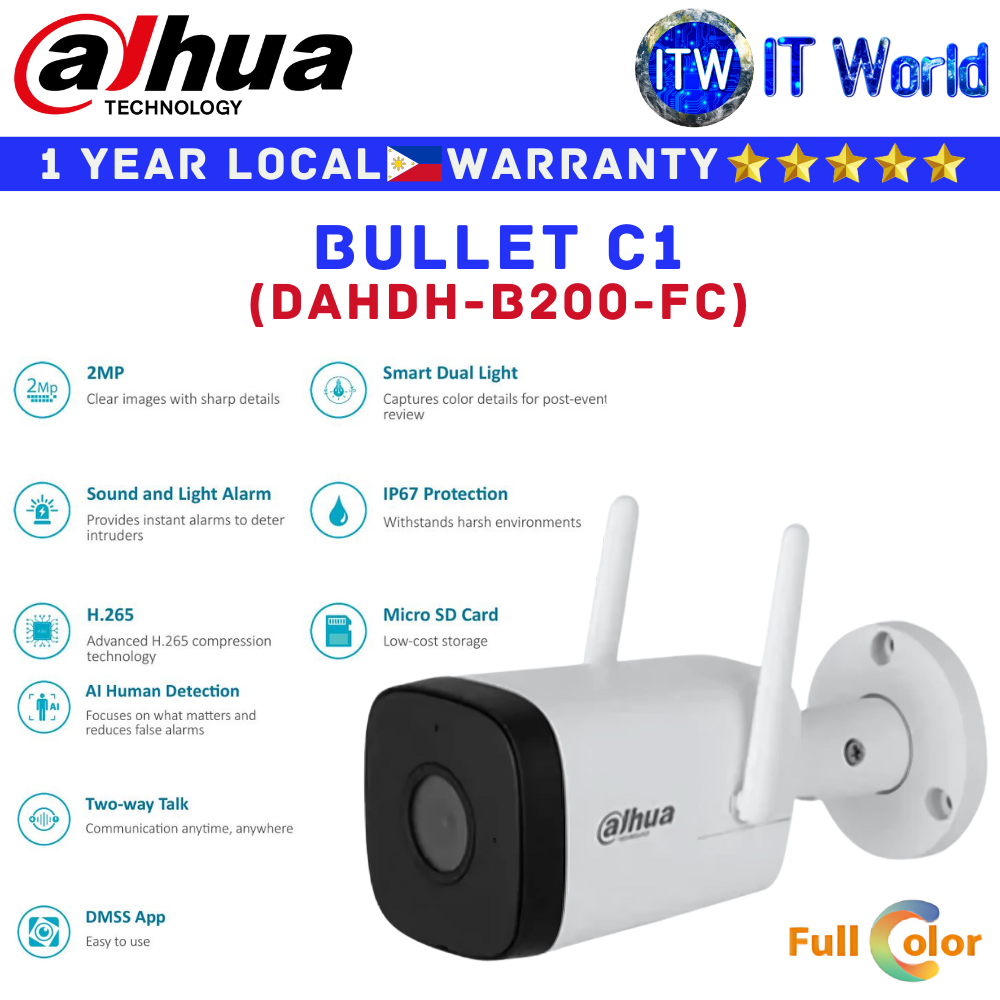

Product Name: Itw | Dahua CCTV Security Camera Bullet C1 Full Color 2MP Fixed-focal Wi-fi Network (DAHDH-B200-FC)

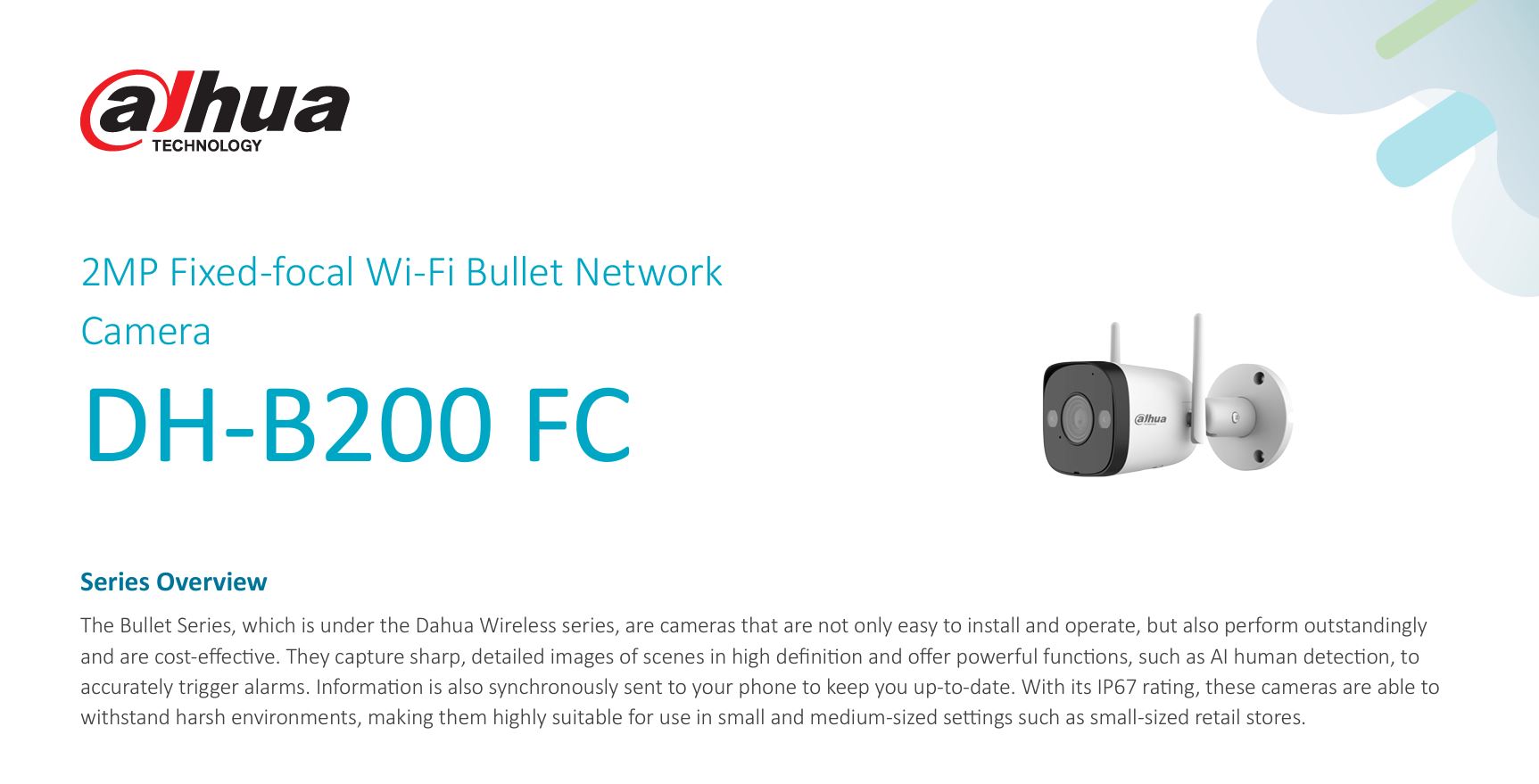

Series Overview
> The Bullet Series, which is under the Dahua Wireless series, are cameras that are not only easy to install and operate, but also perform outstandingly and are cost-effective. They capture sharp, detailed images of scenes in high definition and offer powerful functions, such as AI human detection, to accurately trigger alarms. Information is also synchronously sent to your phone to keep you up-to-date. With its IP67 rating, these cameras are able to withstand harsh environments, making them highly suitable for use in small and medium-sized settings such as small-sized retail stores.

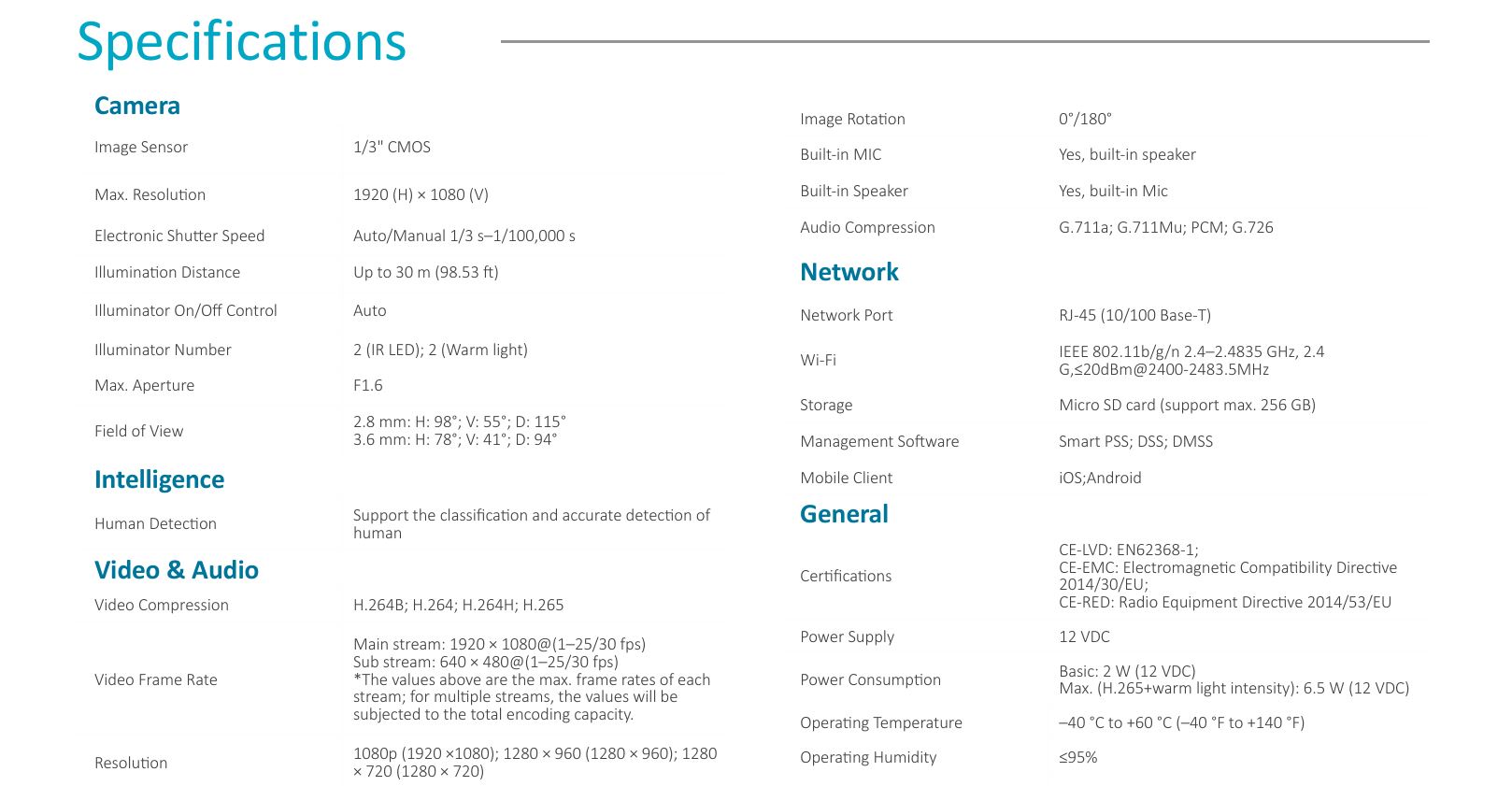

Specification
Camera
> Image Sensor: 1/3" CMOS
> Max. Resolution: 1920 (H) x 1080 (V)
> Electronic Shutter Speed: Auto/Manual 1/3 s-1/100,000s
> Illumination Distance: Up to 30m (98.53ft)
> Illuminator On/Off Control: Auto
> Illuminator Number: 2 (IR LED); 2 (Warm Light)
> Max. Aperture: F1.6
> Field of View
- 2.8 mm: H: 98°; V: 55°; D: 115°
- 3.6 mm: H: 78°; V: 41°; D: 94°
Intellegence
> Human Detection: Support the classification and accurate detection of human
Video & Audio
> Video Compression: H.264B; H.264; H.264H; H.265
> Video Frame Rate
- Main stream: 1920 × 1080@(1–25/30 fps)
- Sub stream: 640 × 480@(1–25/30 fps)
*The values above are the max. frame rates of each
stream; for multiple streams, the values will be subjected to the total encoding capacity.
> Resolution: 1080p (1920 ×1080); 1280 × 960 (1280 × 960); 1280 × 720 (1280 × 720)
> Video Bit Rate
- H.264: 24 kbps–4096 kbps
- H.265: 9 kbps–4096 kbps
> WDR: DWDR
> Motion Detection: OFF/ON
> Smart Illumination: Yes
> Image Rotation: 0°/180°
> Built-in MIC: Yes, built-in speaker
> Built-in Speaker: Yes, built-in Mic
> Audio Compression: G.711a; G.711Mu; PCM; G.726
Network
> Network Port: RJ-45 (10/100 Base-T)
> Wi-Fi: IEEE 802.11b/g/n 2.4–2.4835 GHz, 2.4 G,≤20dBm@2400-2483.5MHz
> Storage: Micro SD Card (support max. 256GB)
> Management Software: Smart PSS; DSS; DMSS
> Mobile Client: iOS;Android
General
> Certifications: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU
> Power Supply: 12 VDC
> Power Consumption: Basic: 2 W (12 VDC) Max. (H.265+warm light intensity): 6.5 W (12 VDC)
> Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
> Operating Humidity: ≤95%
> Protection: IP67
> Casing Material: Metal + plastic
> Product Dimensions: 131.0 mm × 78.4 mm × 97.2 mm (5.47" × 4.80" × 3.83") (L × W × H)
> Net Weight: 266.5 g (0.59 lb)
