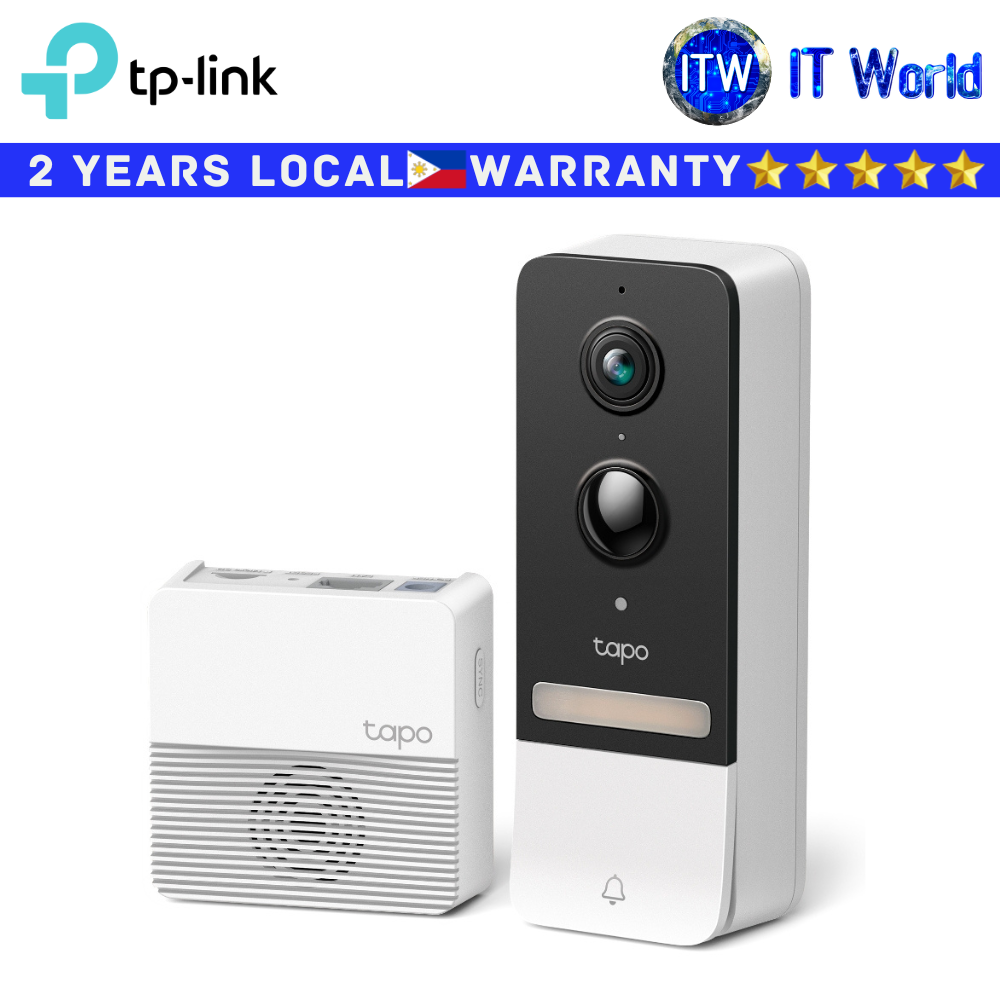

Product Name: Itw | TP-Link Tapo D230S1 2K 5Mp 160° Field of View Smart Battery Video Doorbell Camera
- Tapo D230S1
Tapo Smart Battery Video Doorbell
- 2K 5MP Live View: Always know what happens in front of your door through the Tapo app. With the starlight sensor and 2K 5MP resolution, check all the fine details captured even in low-light environments.
- Color Night Vision: With the embedded spotlight and starlight sensor, Tapo D230S1 reveals high-fidelity details and color at night.

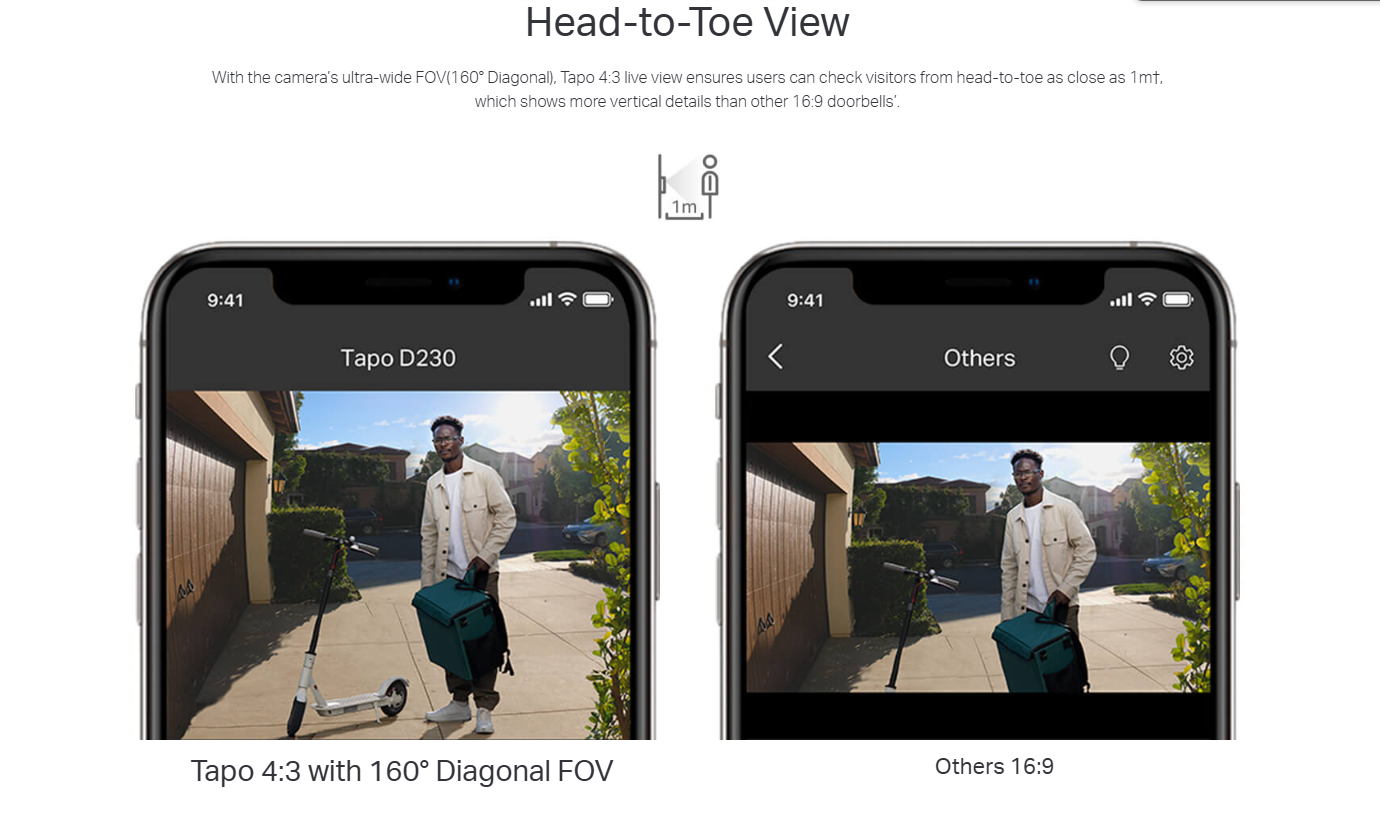

- Head-to-Toe View: With the camera’s ultra-wide FOV(160° Diagonal), Tapo 4:3 live view ensures users can check visitors from head-to-toe as close as 1m†, which shows more vertical details than other 16:9 doorbells'.
- Flexible Placement, Flexible Views: Different wedge choices allow users to make the doorbell suits more placement scenarios. Users can also use wedges to adjust the views.
- Longer Battery Life: The rechargeable and removable battery with a low-power protocol extends your usage.
- Smart AI Detection and Notification: Smart AI algorithms identify people, pets, packages, and cars, and notify users as needed.

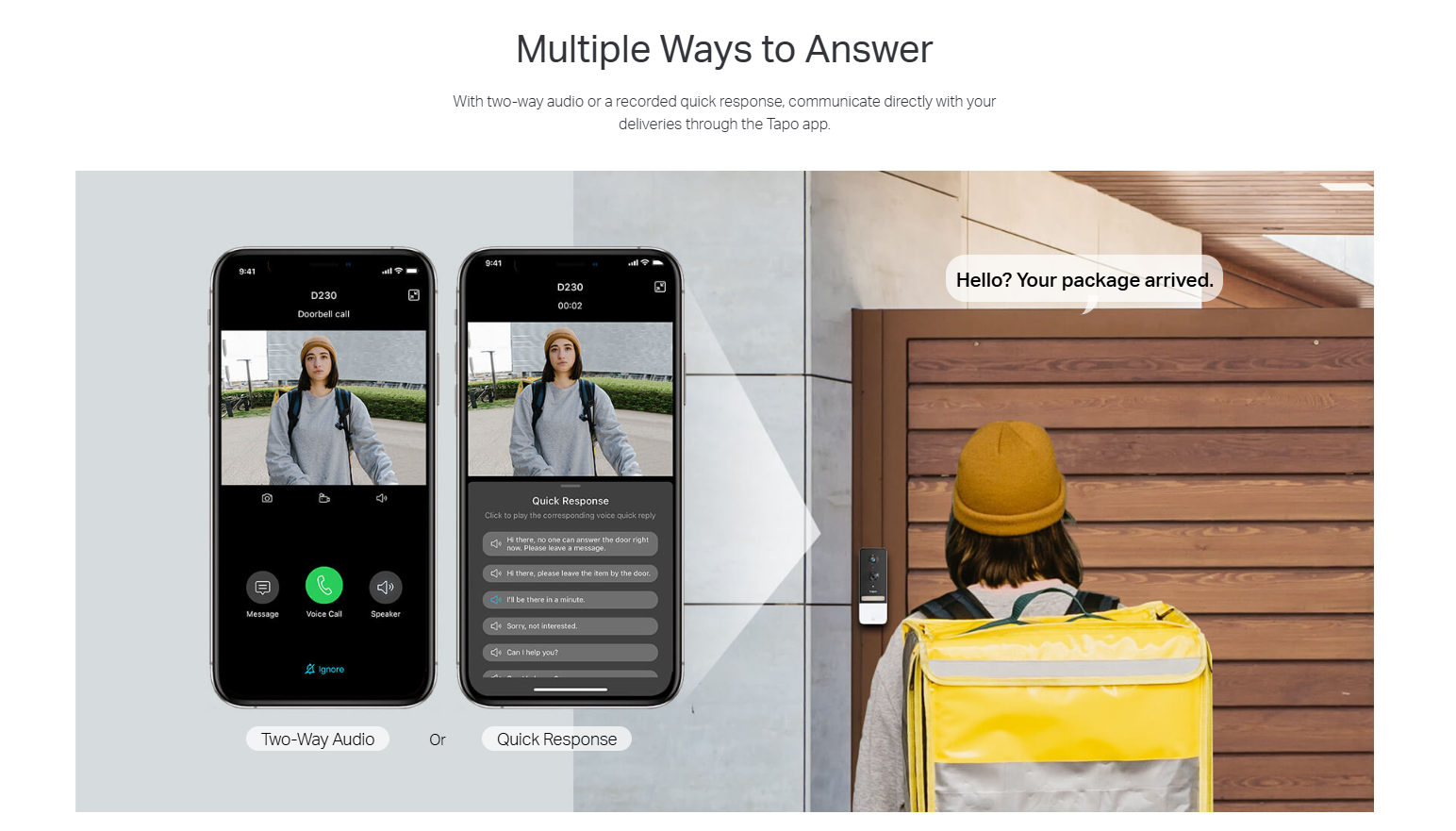

- Multiple Ways to Answer: With two-way audio or a recorded quick response, communicate directly with your deliveries through the Tapo app.
- Flexible Storage Choice: Save recorded videos on the hub-installed microSD card§ (up to 512 GB) or by using Tapo Care△ cloud storage services.

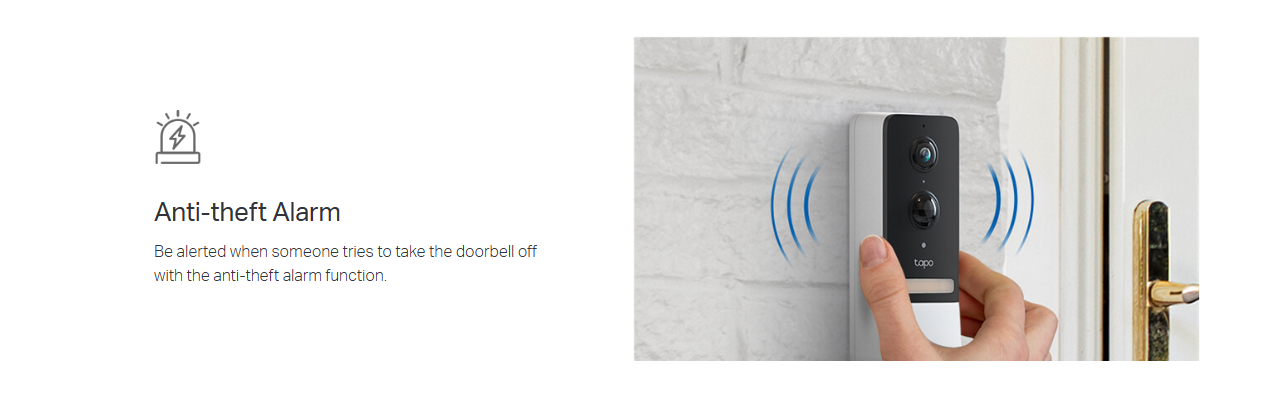

- Anti-theft Alarm: Be alerted when someone trying to take the doorbell off with the anti-theft alarm function.
- Water & Dust Resistant IP64： Operates well on rainy days and in damp environments.
Specification
*CAMERA
Image Sensor: 1/2.7“ Progressive Scan CMOS Sensor
Lens: Focal Length: 2.1 mm
Aperture: F2.1
Field of View: 166° (Diagonal), 135° (Horizontal), 102.8° (Vertical)
Night Vision: 850 nm IR LED (25 ft / 7.6 m)
Full-Color: Night Vision
Lighting: Built-in Spotlights
Interface & Button:
- 1× RESET Button
- 1× Doorbell Button
- 1× Anti-Theft Button
- Hub Compatibility Compatible with H200 (Included)
*HUB
Device Compatibility: Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells.
Connection Capacity: Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells
Interface & Button
- 1× Ethernet Port
- 1× RESET Button
- 1× MicroSD Card Slot (Up to 512 GB)
- 1x SYNC Button
*VIDEO & AUDIO
Maximum Resolution: 2K 5MP (2560 × 1920px)
Frame Rate: 15 fps
Digital Zoom: 16x
Video Compression: H.264
Live View: Yes
Image Enhancement:
- 3DNR
- WDR
Audio Input & Output: Built-in Microphone and Speaker
Audio Communication: Two-Way Audio with Noise Cancellation
Siren Volume:
- Doorbell:
96 dB (Anti-theft siren, Level measured at 4-inch/10-cm distance)
- Hub:
100 dB (Level measured at 4-inch/10-cm distance)
*STORAGE
Local Storage: MicroSD Card Slot on Hub (Up to 512 GB)
Cloud Storage: Tapo Care Cloud Storage Services (Subscription required)
*DETECTION and NOTIFICATIONS
Sensor:
- Single PIR Motion Sensor (FOV: 130° horizontal)
- One Ambient Light Sensor
AI Detection:
- Motion Detection
- Person Detection
- Pet Detection
- Vehicle Detection
- Package Detection
Activity Zones: Yes
*Only works with Motion Detection.
Output Notification:
- System Notification
- System Notification with Snapshot (Tapo Care Services)
*POWER
Power Source:
- Doorbell: 6700 mAh Removable Rechargeable Lithium-ion Battery
- Hub: 9V DC Power Adapter
Input Voltage:
- Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz
- Hub Adapter Input: 100-240 V, 50/60 Hz, 0.3 A
Output Voltage:
- Hub Adapter Output: 9.0 V, 0.85 A Doorbell Battery Pack Adapter Output: 5.0 V, 1.0 A
- Hub Adapter Output: 9.0 V, 0.85 A
DC Power Connector Size:
*GENERAL
Smart Integration: Google Assistant, Amazon Alexa
Weather Resistance: IP64
System Requirements: Tapo App: iOS 12.0 or higher, Andriod 4.4 or higher
Mounting Options:
Stick to a Wall
Mount to a Wall
Operating Temperature: -20℃~45℃
Storage Temperature: -20℃~45℃
Operating Humidity: 10%~90% RH, Non-condensing
Storage Humidity: 5%~90% RH, Non-condensing
Dimensions ( W x D x H ):
- Doorbell Dimensions: 5.7 × 0.21 × 1.3 in (146 × 54.5 × 35.5 mm)
- Hub Dimensions: 2.8 × 2.8 × 1.2 in (71.45 × 71.45 × 31.25 mm)
