Corsair CX Series CX550 ATX 80+ Bronze / ATX3.1 Cybenetics Silver 550W Non-Modular Power Supply Unit

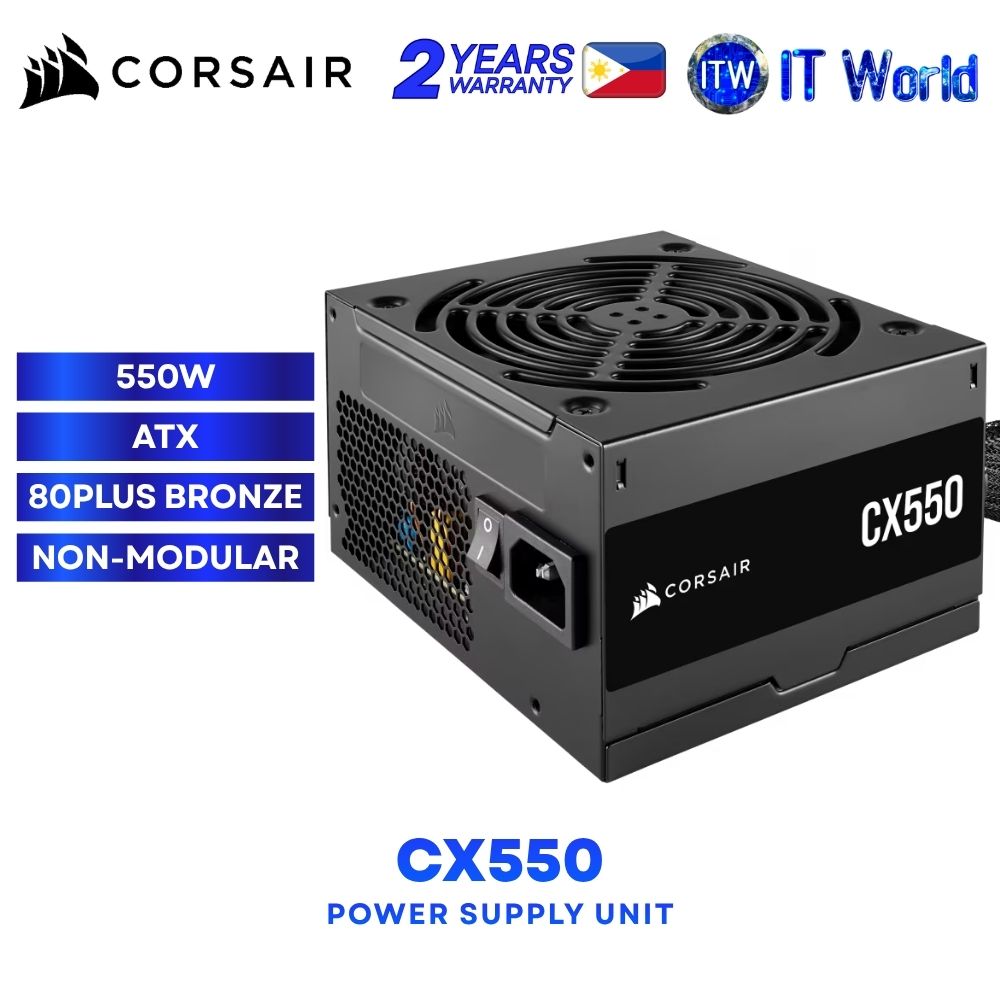

** Corsair CX550 550W 80+ Bronze ATX Non-Modular Power Supply Unit CS-CP-9020277-NA **
Product Highlights
🔋 550W Continuous Power – Reliable 550W rated continuous output for your system.
🏅 80 PLUS Bronze – Up to 88% efficiency for efficient power delivery.
🌬️ 120mm Low-Noise Fan – Equipped with a 120mm sleeve-bearing fan for quieter cooling.
📦 Compact Design – Only 125mm in length, making it easy to fit in nearly any modern case.
🔌 Non-Modular Design – Comes with a non-modular cable configuration.
🖥️ ATX Form Factor – Designed in the standard ATX PSU form factor.
🔗 SATA Connectors – Includes 3 SATA connectors.
⚙️ ATX12V v2.31 – Supports the ATX12V v2.31 specification.
🛡️ 100,000-Hour MTBF – Rated for a 100,000-hour mean time between failures.
🌡️ 30°C Rated Temperature – Continuous output is rated at 30°C.
🔧 Type 4 Cable Type – Uses Type 4 cable configuration.
Specifications
📋 Brand: Corsair
📋 Model: CX550
📋 Product Type: Power Supply Unit (PSU)
📋 Power Output: 550W
📋 Efficiency: 80 PLUS Bronze, up to 88%
📋 Form Factor: ATX
📋 Modular: No
📋 Fan: 120mm Sleeve Bearing
📋 ATX Connector: 1
📋 SATA Connectors: 3
📋 ATX12V Version: v2.31
📋 Continuous Output Rated Temperature: 30°C
📋 Cable Type: Type 4
📋 MTBF: 100,000 hours
📋 Product Weight: 2 kg
📋 SKU: CS-CP-9020277-NA

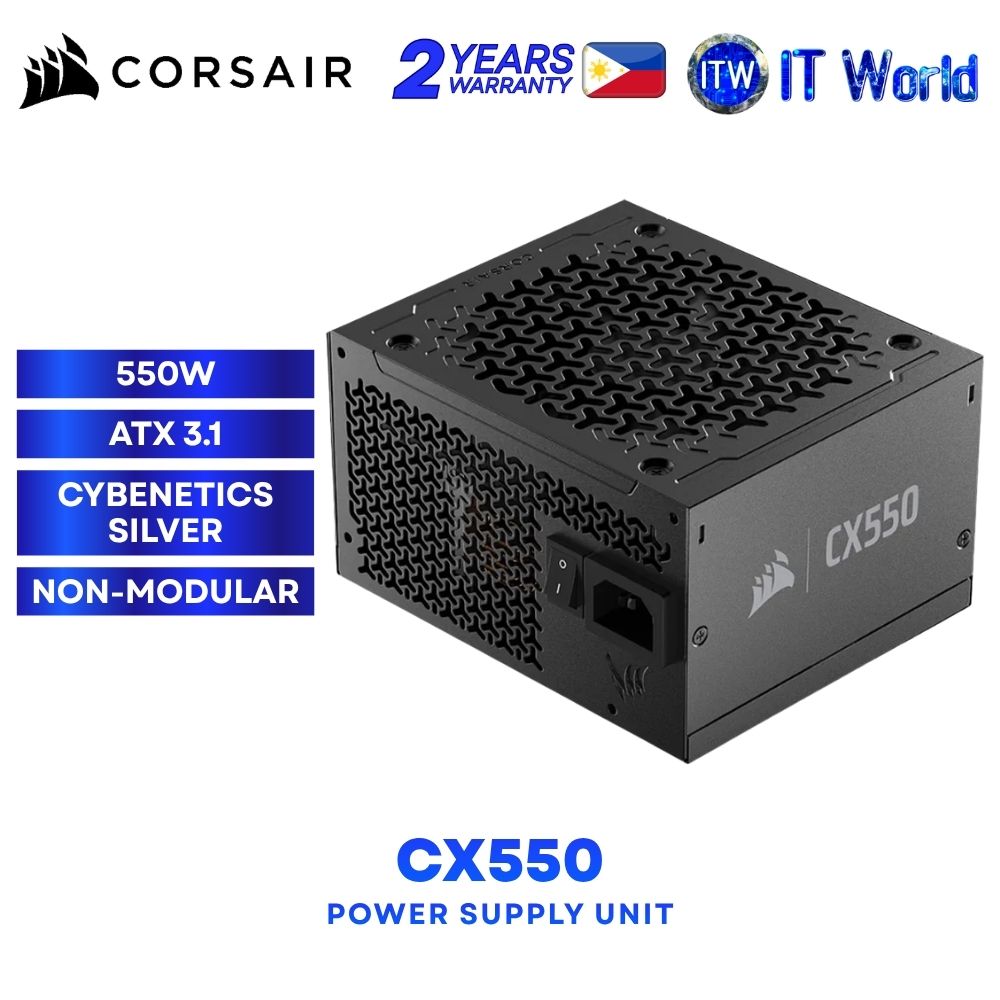

** Corsair CX550 550W ATX3.1 Cybenetics Silver Non-Modular Power Supply Unit CP-9020324-NA **
⚡ Power your desktop system with the CORSAIR CX550, a 550W ATX 3.1 power supply designed for reliable PC performance. Featuring Cybenetics Silver efficiency certification, Active PFC, Resonant LLC topology, and PCIe support, it delivers dependable power for modern PC systems.
Key Features & Specifications
⚡ Power Output: 550W total power output
🖥️ PSU Type: ATX
🔌 ATX Standard: ATX 3.1
🏆 Efficiency: Cybenetics Silver certified
🔗 Design: Non-Modular for straightforward installation
🎮 PCIe Support: Supports compatible graphics cards
🌬️ Cooling: 120mm fan for cool and quiet operation
📏 PSU Length: Compact 125mm length
⚙️ Topology: Resonant LLC for efficiency and stability
🔋 PFC: Active PFC for improved power efficiency
🌐 AC Input: 100–240V AC
📡 Input Frequency: 47–63Hz
🔋 +12V Maximum Load: 45.8A
⚡ +12V Maximum Power: 550W
🔌 +3.3V / +5V Maximum Combined Output: 100W
🔋 -12V Maximum Load: 0.3A
⚡ -12V Maximum Power: 3.6W
🔋 +5VSB Maximum Load: 3.0A
⚡ +5VSB Maximum Power: 15W
Product Details
📦 Brand: CORSAIR
📦 Model: CX550
📦 Part Number / SKU: CP-9020324-NA
📦 Power: 550W
📦 Form Factor: ATX
📦 Modular: Non-Modular
📦 Fan Size: 120mm
📦 PSU Length: 125mm
