Corsair CX750 750W ATX 80+ Bronze / ATX 3.1 Cybenetics Gold Non-Modular Power Supply Unit

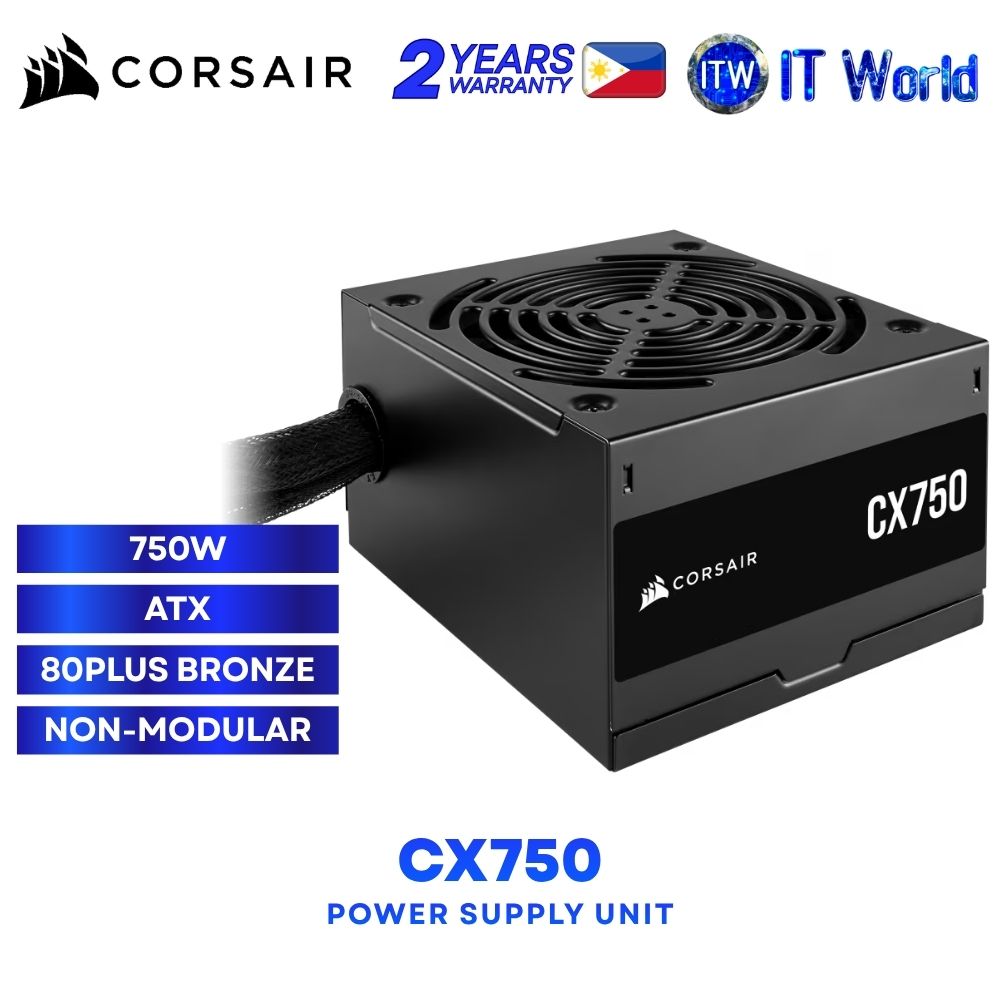

** Corsair CX750 750W 80+ Bronze ATX Non-Modular Power Supply Unit CS-CP-9020278-NA **
⚡ Power your system with the CORSAIR CX750, an ATX power supply designed with 750W continuous power, 80 PLUS Bronze efficiency, low-noise cooling, and a compact design for easy installation in modern PC cases.
Product Highlights & Specifications
⚡ Continuous Power: 750 Watts
🏅 80 PLUS Efficiency: Bronze — up to 88% efficiency
🖥️ PSU Form Factor: ATX
🔌 ATX Connector: 1
💾 SATA Connectors: 3
🔧 Modular: No / Non-Modular
🌀 Fan Size: 120mm
🤫 Cooling: Low-noise 120mm cooling fan
⚙️ Fan Bearing Technology: Sleeve
📏 PSU Length: Compact 125mm
🔗 Cable Type: Type 4
🔋 ATX12V Version: v2.31
🌡️ Continuous Output Rated Temperature: 30°C
⏱️ MTBF: 100,000 hours
⚖️ Product Weight: 2kg

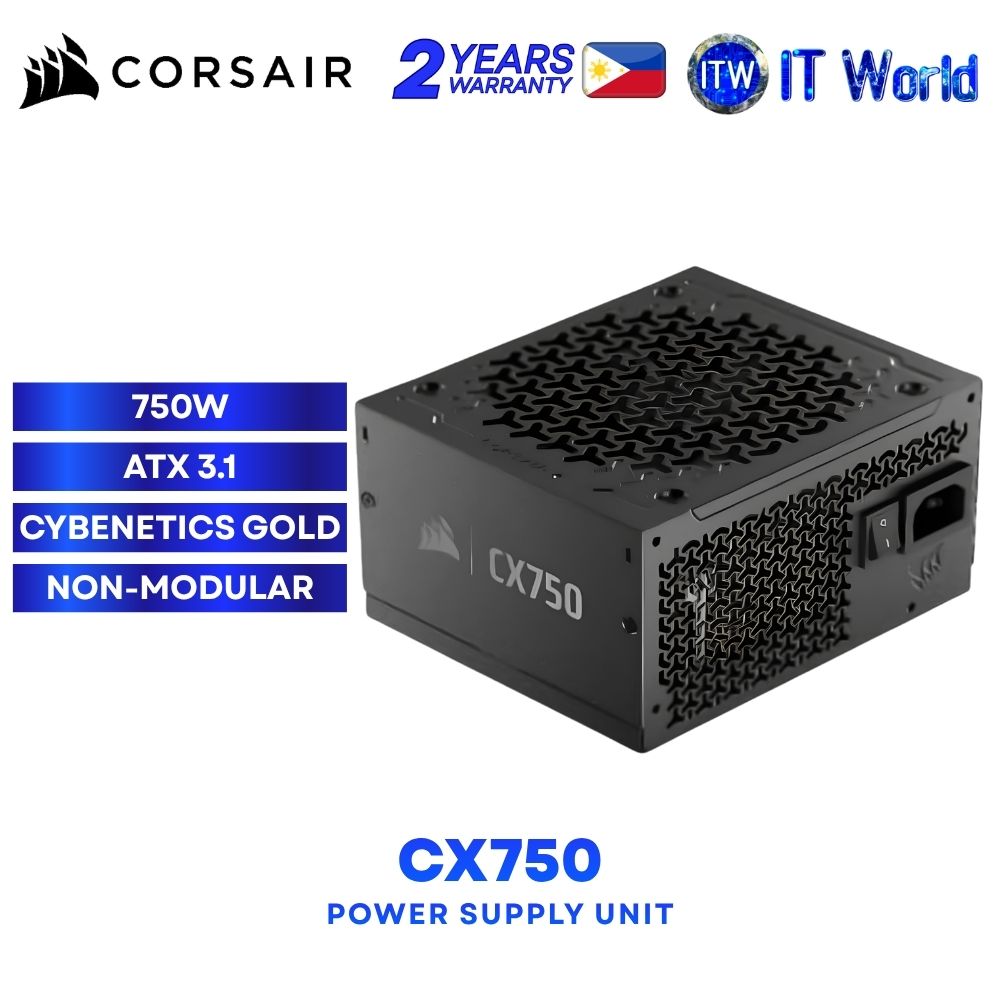

** Corsair CX750 750W Cybenetics Gold ATX 3.1 Non-Modular Power Supply Unit CS-CP-9020326-NA **
Product Highlights
⚡ 750W Power Output – Provides up to 750W total power output.
🏅 Cybenetics Gold Efficiency – Designed with Cybenetics Gold efficiency.
🖥️ ATX 3.1 Standard – Built on the ATX 3.1 power supply platform.
🔧 Non-Modular Design – Features non-modular cabling.
🌬️ 120mm Cooling Fan – Equipped with a 120mm cooling fan.
🔋 16-Pin PCIe Connector – Includes 1 × 16-pin (12+4) PCIe connector.
🎮 PCIe Connectivity – Includes 2 × 8-pin (6+2) PCIe connectors and 1 × 8-pin PCIe connector.
🧩 EPS Connectors – Features 2 × 8-pin (4+4) EPS connectors.
💾 SATA & PATA – Includes 3 × SATA connectors and 2 × PATA connectors.
🔌 Main Power – 1 × 24-pin main power connector.
🌐 Wide Input Range – Supports 100–240VAC input
Specifications
📋 Brand: CORSAIR
📋 Model: CX750
📋 Part Number / SKU: CP-9020326-NA
📋 Product Type: Power Supply Unit (PSU)
📋 Maximum Power: 750W
📋 Efficiency: Cybenetics Gold
📋 Standard: ATX 3.1
📋 Modular: Non-Modular
📋 Cooling: 1 × 120mm Fan
📋 Main Power: 1 × 24-pin
📋 EPS: 2 × 8-pin (4+4)
📋 PCIe: 2 × 8-pin (6+2), 1 × 8-pin
📋 PCIe 12+4: 1 × 16-pin (12+4)
📋 SATA: 3
📋 PATA: 2
📋 Input Source: 100–240VAC
