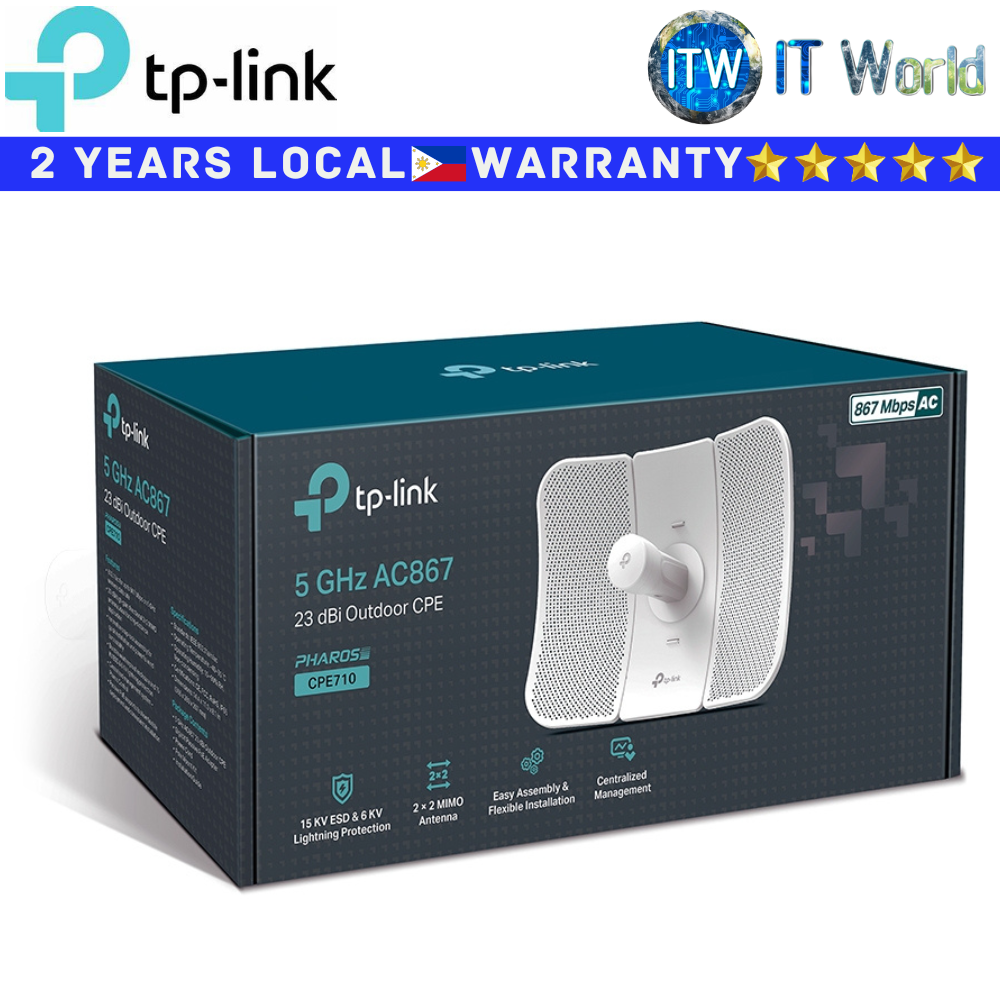

TP-Link CPE710 5Ghz AC867 23dBi Outdoor CPE Pharos WISP Long Range Wireless

TP-Link CPE710 5Ghz AC867 23dBi Outdoor CPE Pharos WISP Long Range Wireless

https://itworldph.com/web/image/product.template/13121/image_1920?unique=a6cdb83

₱ 3,490.00 3490.0 PHP ₱ 3,490.00

₱ 3,490.00

Not Available For Sale

(₱ 0.00 / Units)

This combination does not exist.

Tp-link
Contact Us

Share

Chat with Us!



Share this product:

Blazing Speed without Wait

256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.

Professional-Standard 23 dBi DirectionalAntenna for Long-range Wireless Transmission

With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

Qualcomm 750MHz CPU, MIPS 74Kc
128 MB DDR2 RAM, 16 MB Flash
1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)1 Reset Button
Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)Voltage range: 16-27V DC
14.4 x 11.0 x 8.1 in.(366 x 280 x 207 mm)
23 dBi
9° (Azimuth)/7° (Elevation)
15 KV ESD Protection6 KV Lightning Protection
Material: Outdoor PC stabilized plasticWeatherproof: IP65 water and dust proof design

IEEE 802.11a/n/ac
Up to 867 Mbps (80 MHz, Dynamic)Up to 400 Mbps (40 MHz, Dynamic)Up to 173.4 Mbps (20 MHz, Dynamic)
5.15–5.85 GHzNote: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Max. 27 dBm (Adjustable power by 1dBm)

WAN: Static/ Dynamic/ PPPoELAN: Static/ Dynamic/ DHCPForwarding: ALG/ UPnP/ Virtual Server/ Port TriggerSecurity: SPI Firewall/ Ping Forbidden/ DoS ProtectionAccess ControlStatic RoutingBandwidth ControlIP & MAC Binding
Selectable channel width: 20, 40 or 80MHzAutomatic Wi-Fi channel selectionRF transmit power adjustment in 1 dB stepDynamic Frequency Selection (DFS)WDS Enable/ DisableSecurity: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption,SSID broadcast enable/ disableMulti-SSID with VLAN tagging in AP modeDistance/ ACK timeout settingWireless MAC address filterWireless advanced features:Beacon interval, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, short GI, Wi-Fi multimediaLong range point-to-point
Discovery and Remote Management with Pharos Control (Windows)HTTP/ HTTPS Web-based managementSystem logSNMP agent (v2c)Ping watchdogDynamic DNSSSH server
Indicators:Signal Strength, Noise, Transmit CCQ, CPU, and Memory usageMonitors: Throughput, Stations, Interfaces, ARP, Routes, WAN, and DHCPSpectrum AnalyzerSpeed TestPingTracerouteAntenna Alignment
Optimized IGMP Snooping / Proxy for multicast applications

3.3 x 1.7 x 1.2 in.(85 × 44 × 30 mm)
1 AC Jack with Earth Ground1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)1× 10/100/1000 Mbps Shielded Ethernet Port (Data)
Remote Reset Button
Green
100-240VAC, 50/60Hz
24VDC, 0.5A Max+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
> 84.29%
CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
