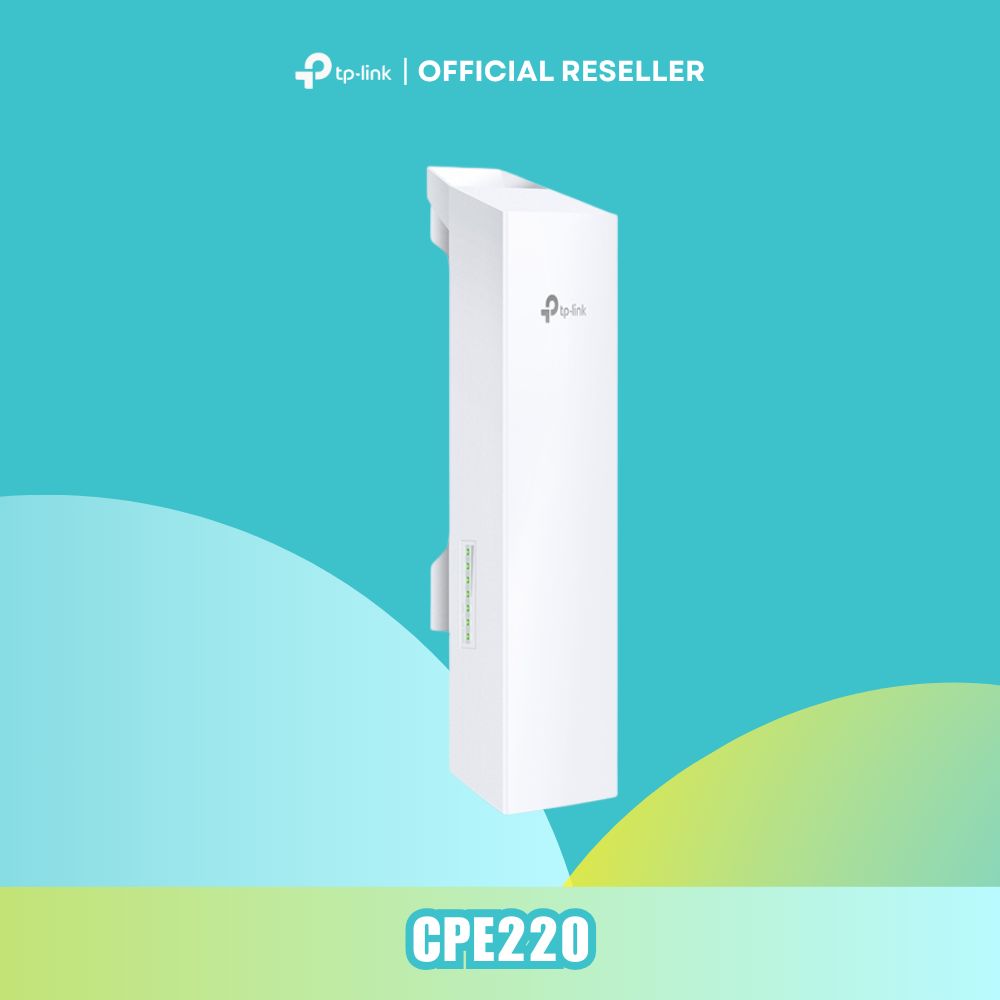

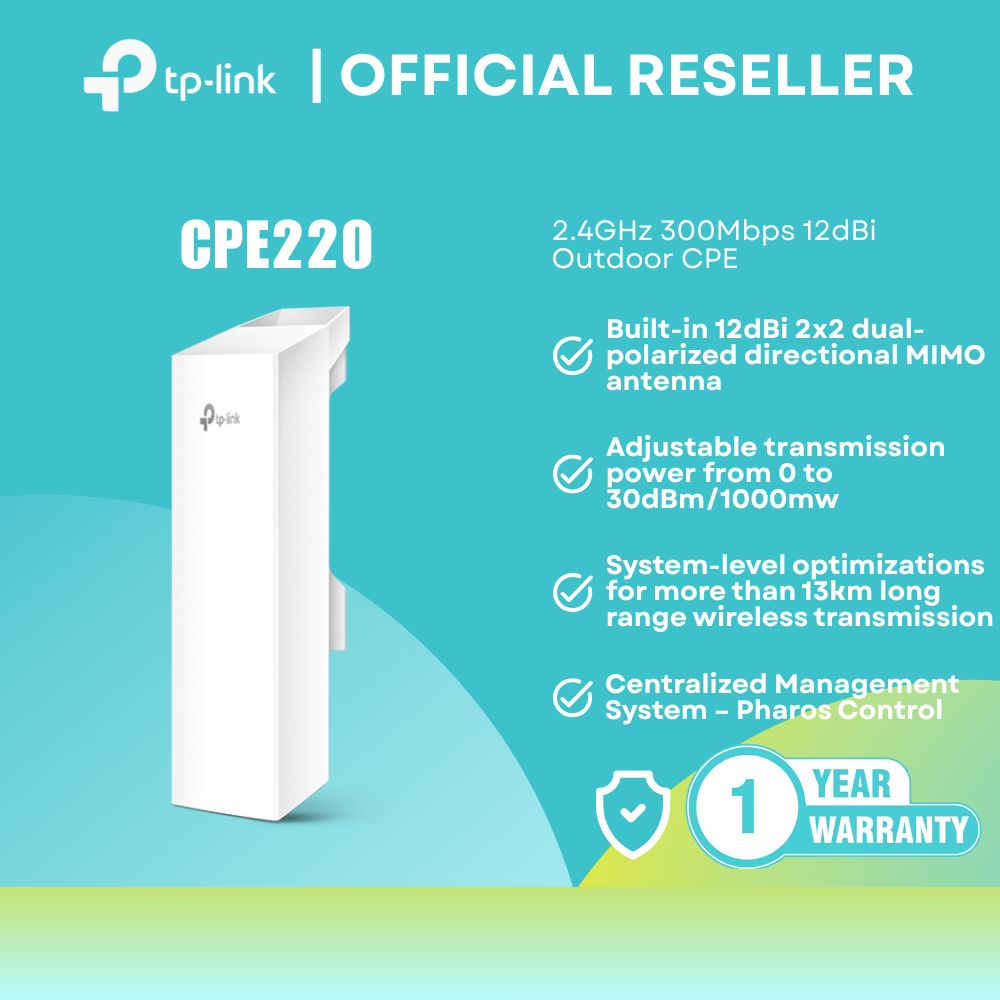

Reliable outdoor wireless CPE built for long-range 2.4GHz connectivity, point-to-point transmission, and stable outdoor networking 🌐📡
🚀 Performance & Hardware
• ⚙️ Qualcomm Atheros 560MHz MIPS 24Kc processor
• 🧠 64MB DDR2 RAM + 8MB Flash memory
• 🔌 2× Shielded Ethernet Ports
• ⚡ Passive PoE support via LAN0 for flexible deployment
• 🔋 Max power consumption: 10.8W
📶 Wireless Connectivity
• 📡 IEEE 802.11b/g/n wireless standard
• 🚀 Up to 300Mbps wireless speed
• 📊 Supports 5/10/20/40MHz selectable channel widths
• 🎯 Adjustable transmit power up to 30dBm / 1000mW
• 🔄 Pharos MAXtream TDMA technology for optimized outdoor transmission
📡 Antenna & Coverage
• 📶 Built-in 12dBi 2×2 dual-polarized directional antenna
• 📐 Beam width: 60° horizontal / 30° vertical
• 🌍 Designed for stable outdoor point-to-point and point-to-multipoint deployment
🛡️ Outdoor Protection
• 💧 IPX5 waterproof outdoor enclosure
• ⚡ 15KV ESD protection + 6KV lightning protection
• 🏗️ Durable ASA stabilized plastic housing for harsh environments
🛠️ Advanced Features
• 🌐 HTTP/HTTPS web-based management
• 📊 Remote monitoring via Pharos Control application
• 📡 Spectrum analyzer, throughput monitor, speed test, ping & traceroute
• 🔐 WPA/WPA2 encryption, VLAN tagging, MAC filtering support
• 📶 Multi-SSID support for flexible wireless management
📦 Package Contents
• Outdoor Wireless CPE
• 24V 0.5A Passive PoE Adapter
• Pole mounting straps
• AC power cord
• Installation guide
